• Community R.15COAX 6.5" 2-Way Ultra-Compact Coaxial Speaker
1 1

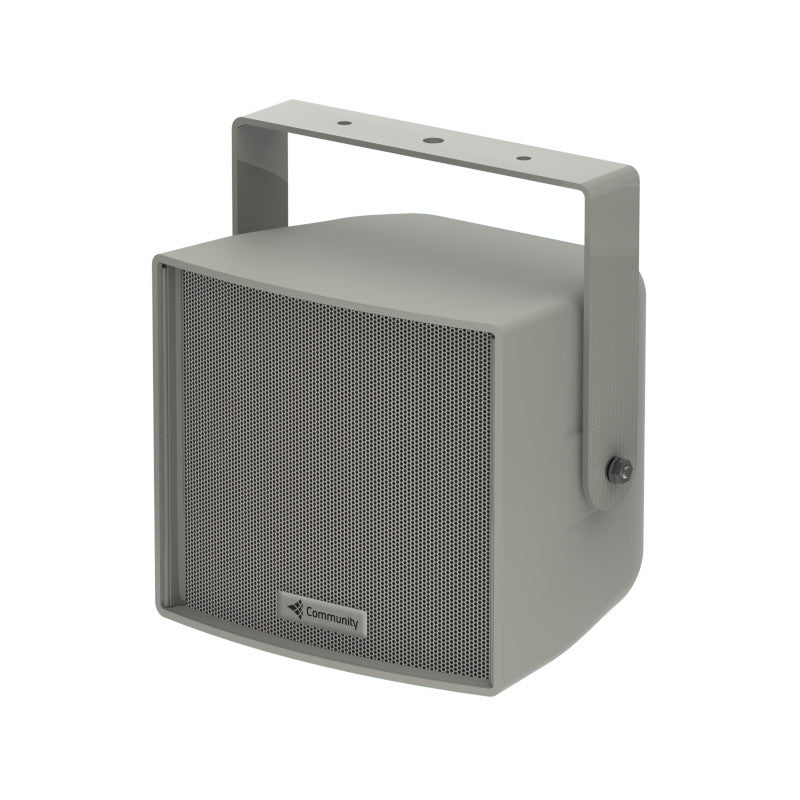

Community R.15COAX 6.5-Inch Weather-Resistant Speaker

Community R.15COAX 6.5-Inch Weather-Resistant Speaker

Soundpro Item: 62616 | Part Number: R.15COAX

$560.00
$560.00 $560.00
Your Price Sold out
MSRP: $560.00 | MAP: $560.00

Usually ships in 5-7 business days

  • Premium music applications
  • Micro-size, efficient uniform high output
  • NeverWet™ treated grille, and included powder-coated mounting bracket
Log in or register for YOUR best price

The R.15COAX from Community is a 6.5-inch, weather-resistant speaker.

The ultra-compact R.15 and R.35 models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. The R.15COAX and R.35COAX use identical 1.25-inch exit HF compression drivers, featuring Community’s exclusive Tru-Phase™ phase plug and Carbon Ring Cone Technology™. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience.

View full details

Specifications

  • Operating Mode
    • Passive - Low Impedance or 70V/100V models
    • Operating Environment Indoor or Weather-Resistant Outdoor
    • Operating Range2 100 Hz to 16 kHz
    • Nominal Beamwidth (HxV) 90° x 40°
  • Transducers
    • LF 1 x 8” (203mm) carbon ring, hydrophobic cone, 2.5" (64mm)
    • HF 1 x 3/4” (19mm) exit, non-metallic Ferrofluid-cooled comp driver
    • DYNA-TECH protection circuitry for drivers
  • Continuous Power Handling [3] @ Nominal ImpedancePassive: 40V 200W @ 8 Ohms (800W peak)
  • Autoformer Taps R.25-94TZ
    • 70V: 200W,100W, 50W, 25W
    • 100V: 200W,100W, 50W
  • Nominal Sensitivity [4]@ 1W/1m: 97 dB; @ 2.83V: 97 dB
  • Nominal Maximum SPL [5] (Whole Space)
    • Peak: 126 dB
    • Continuous: 120 dB
  • Equalized Sensitivity [6]     @ 1W/1m: 96 dB; @ 2.83V: 96 dB
  • Equalized Maximum SPL [7]
    • Peak: 125 dB
    • Continuous: 119 dB
  • Required AccessoriesHigh Pass Filter - 100 Hz, 24 dB /octave, Digital Signal Processor
  • Recommended AmplifiersR.25-94Z; 200W - 400W @ 8 Ohms, (40V - 57V)
  • Physical
    • Input Connection 16-2 SJOW cable (12 ft / 4m), with stripped ends
    • Controls
      • R.25-94Z: None
      • R.25-94TZ: 4-position tap selection rotary switch (behind plug)
    • Mounting Points: Five (5) M8 rigging points, 1-3/8” pole mount socket
    • Environmental: IP55W per IEC 529, designed to MIL-STD-810G
    • Dimensions (HxWxD): 11.3x11.3x13.3" (287x287x338 mm)
    • Weight
      • R.25-94Z: 20 lbs (9.1 kg) with included yoke
      • R.25-94TZ: 23 lbs (10.4 kg) with included yoke
