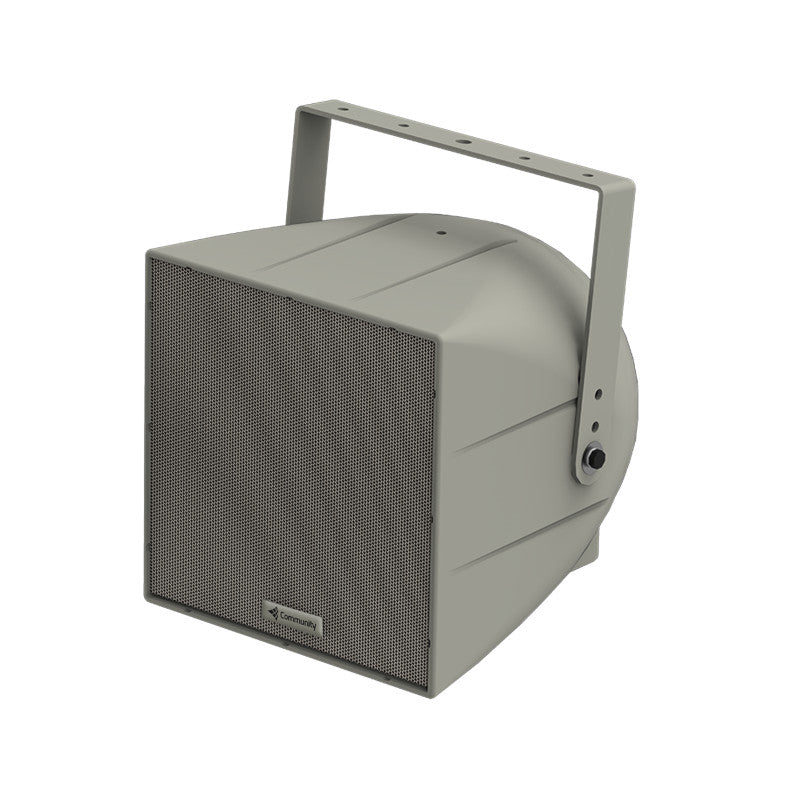

Community R.25-94Z 8-Inch Weather-Resistant Speaker

Community R.25-94Z 8-Inch Weather-Resistant Speaker

SoundPro Item: 62622 | Part Number: 911.1237.900

$848.00
$848.00 $848.00
Your Price Sold out
MSRP: $848.00 | MAP: $848.00

Usually ships in 5-7 business days

  • Optional 200W, 70V autoformer
  • Weather-treated drivers and crossovers
  • High efficiency, high fidelity, all horn loaded with high power passive crossover
  • Weather-resistant, rotomolded UV enclosure with corrosion-resistant zinc-rich epoxy
  • Dual-layer powder-coated steel grille and yoke
Log in or register for YOUR best price

The compact Community R.25-94Z 8-Inch Weather-Resistant Speaker combines wide frequency response with excellent efficiency and projection ability. The HF driver is coupled to a nominal 90° x 40° horn, and the HF horn assembly is coaxially mounted with the LF driver to minimize interference at crossover. The horn-loaded LF driver delivers better low frequency pattern control, higher sensitivity, higher output, and better vocal projection than typical 8-inch two-way loudspeakers. The R.25 is ideal for use in difficult acoustic environments requiring a small footprint, like stadium concourses and gymnasiums, and offers excellent supplemental reinforcement in larger R SERIES systems.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
11.3x11.3x13.3" (287x287x338 mm)
Weight
Weight R.25-94Z
20 lbs (9.1 kg) with included yokeR.25-94TZ: 23 lbs (10.4 kg) with included yoke
Electrical
Continuous Power Handling[3] @ Nominal Impedance
Passive 40V 200W @ 8 Ohms (800W peak)
Connectivity
Input Connection
16-2 SJOW cable (12 ft / 4m), with stripped ends
General
Operating Mode
Passive - Low Impedance or 70V/100V models
Operating Environment
Indoor or Weather-Resistant Outdoor
Operating Range[2]
100 Hz to 16 kHz
Nominal Beamwidth (HxV)
90°x40°
Transducers
LF 1 x 8” (203mm) carbon ring, hydrophobic cone, 2.5" (64mm), HF 1 x 3/4” (19mm) exit, non-metallic Ferrofluid-cooled comp driver, DYNA-TECH protection circuitry for drivers
70V
200W,100W, 50W, 25W
100V
200W,100W, 50W
@ 1W/1m
97 dB
@ 2.83V
97 dB
Peak
126 dB
Continuous
120 dB
Required Accessories
High Pass Filter - 100 Hz, 24 dB /octave, Digital Signal Processor
Recommended Amplifiers
R.25-94Z: 200W - 400W @ 8 Ohms, (40V - 57V)
Controls R.25-94Z
NoneR.25-94TZ: 4-position tap selection rotary switch (behind plug)
Mounting Points
Five (5) M8 rigging points, 1-3/8” pole mount socket
Environmental
IP55W per IEC 529, designed to MIL-STD-810G
