• Community R.35-3896 8-Inch Ultra-Compact 3-Way Speaker
1 2

Community R.35-3896 3-Way 8-Inch Weather-Resistant Speaker

Community R.35-3896 3-Way 8-Inch Weather-Resistant Speaker

SoundPro Item: 62623 | Part Number: 920-01238-30000

$1,050.00
$1,050.00 $1,050.00
Your Price Sold out
MSRP: $1,050.00 | MAP: $1,050.00

Usually ships in 5-7 business days

  • Triaxial 8-inch Carbon Ring Cone loudspeaker
  • MultiSource Waveguide™ technology
  • 1-inch exit HF compression driver into a single coherent source
  • Fully passive
  • Class-leading SPL levels
Log in or register for YOUR best price

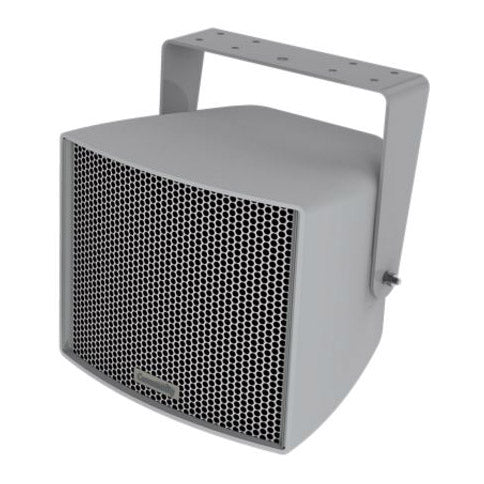

The R.35-3896, housed in the same size enclosure as the 10-inch R.35COAX, is a triaxial 8-inch Carbon Ring Cone loudspeaker featuring Community’s exclusive MultiSource Waveguide™ technology which adeptly integrates the output from dual midrange compression drivers and a 1-inch exit HF compression driver into a single coherent source. Fully passive, the R.35-3896 is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
11x13x13.5" (279x330x343 mm)
Electrical
Continuous Power Handling[3] @ Nominal Impedance
Passive: 56V; 400W @ 8 Ohms (1600W peak)
Audio
Nominal Sensitivity [4]
Passive
Nominal Maximum SPL[5] (Whole Space)
Passive
Equalized Sensitivity[6]
System
Equalized Maximum SPL[7]
System
Connectivity

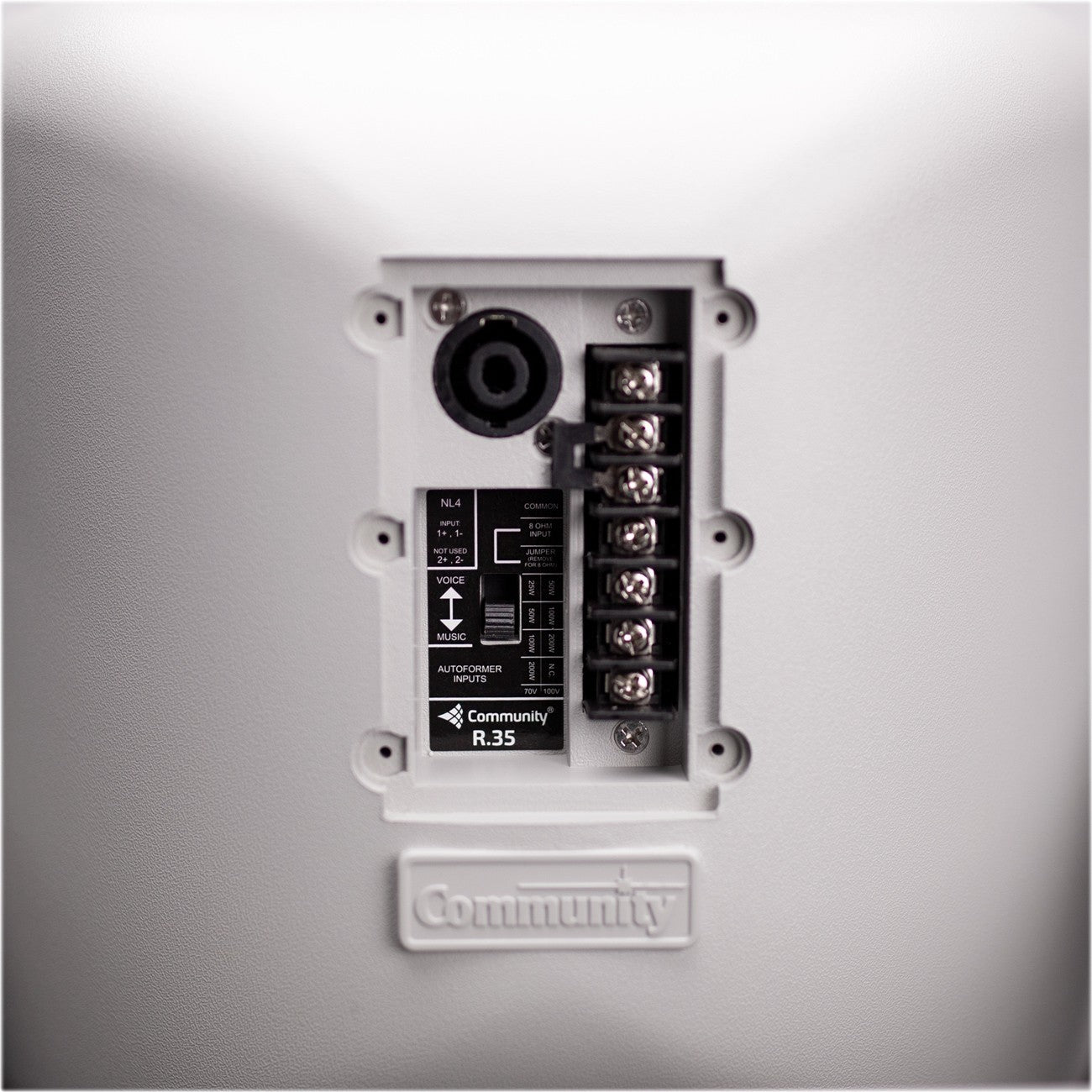

Input Connection
NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation
Shipping
Weight
34 lbs (15.4 kg) with included yoke
General
Operating Mode
Passive, Selectable Low Impedance or 70V/100V
Operating Environment
Indoor or Weather-Resistant Outdoor
Operating Range [2]
80 Hz to 16 kHz
Nominal Beamwidth (HxV)
90° x 60°
Transducers
LF 1 x 8" (203mm) Carbon ring cone with hydrophobic treatment, 3" (76mm) Voice Coil, MR 2 x 2.35" (60mm) MultiSource Waveguide™ compression drivers, HF 1 x 1" (25mm) exit polymer diaphragm compression driver
70V
200W,100W, 50W, 25W
100V
200W,100W, 50W
Music
@ 1W: 98dB; @ 2.83V: 98 dB
Voice
@ 1W: 100 dB; @ 2.83V: 100 dB
Music Peak
130 dBContinuous: 124 dB
Voice Peak
132 dBContinuous: 126 dB
Music @ 1W
97 dB@ 2.83V: 97 dB
Required Accessories
High Pass Filter - 80 Hz, 24 dB /octave, Digital Signal Processor
Recommended Amplifiers
400W - 800W @ 8 Ohms, (56V - 80V)
Controls
Music / Voice switch, 70V/100V operation jumper
Mounting Points
Two (2) M8 rigging points
Physical
Environmental IP55W per IEC 529, designed to MIL-STD-810G Color-matchedABS plastic input panel weather cover with 13.5mm ID gland nut installed in .82" knockout
