• Community R.35COAX 10-Inch Ultra-Compact 2-Way Speaker
1 1

Community R.35COAX 10-Inch Weather-Resistant Speaker | Color: Black

Community R.35COAX 10-Inch Weather-Resistant Speaker | Color: Black

SoundPro Item: 62626 | Part Number: 920-01241-30000

$810.00
$810.00 $810.00
Your Price Sold out
MSRP: $810.00 | MAP: $810.00

Usually ships in 5-7 business days

  • Improved music playback
  • Additional coverage patterns
  • Higher output in attractive paintable enclosures
  • 1.25-inch exit HF compression drivers
  • Tru-Phase™ phase plug and Carbon Ring Cone Technology™
  • Front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction
  • Identical voicing ensures a uniform listening experience
Log in or register for YOUR best price

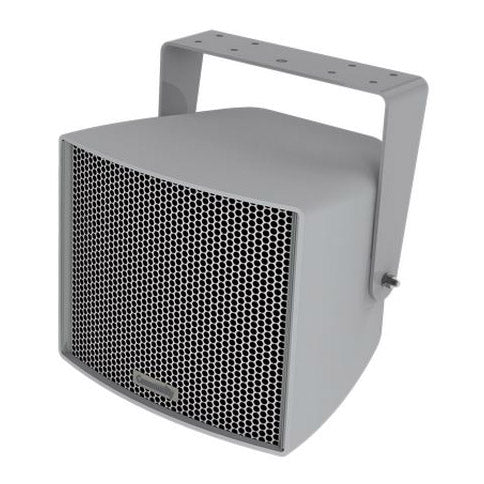

The R.35COAX from Community is a 10-inch, weather-resistant speaker.

The compact R.15 and R.35 models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. The R.15COAX and R.35COAX use identical 1.25-inch exit HF compression drivers, featuring Community’s exclusive Tru-Phase™ phase plug and Carbon Ring Cone Technology™. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
11x13x13.5" (279x330x343 mm)
Electrical
Continuous Power Handling [3] @ Nominal Impedance
Passive: 40V 200W @ 8 Ohms (800W peak)
Audio
Nominal Sensitivity[4]
Passive
Nominal Maximum SPL [5] (Whole Space)
Passive
Equalized Sensitivity[6]
System
Equalized Maximum SPL[7]
System
Connectivity
Input Connection
NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation
Shipping
Weight
26 lbs (11.8 kg) with included yoke
General
Operating Mode
Passive, Selectable Low Impedance or 70V/100V
Operating Environment
Indoor or Weather-Resistant Outdoor
Operating Range[2]
70 Hz to 16 kHz
Nominal Beamwidth (HxV)
90° x 90°
Transducers
LF 1 x 10" (254mm) Carbon ring cone with hydrophobic treatment, 2" (51mm) Voice Coil, HF 1 x 1.25" (32mm) exit compression
70V
200W,100W, 50W, 25W
100V
200W,100W, 50W
Music @ 1W
97 dB@ 2.83V: 97 dB
Voice @ 1W
99 dB@ 2.83V: 99 dB
Music Peak
126 dBContinuous: 120 dB
Voice Peak
128 dBContinuous: 122 dB
Required Accessories
High Pass Filter - 70 Hz, 24 dB /octave, Digital Signal Processor
Recommended Amplifiers
Passive 200W - 400W @ 8 Ohms, (40V - 57V)
Controls
Music / Voice switch, 70V/100V operation jumper
Mounting Points
Two (2) M8 rigging points
Physical
Environmental IP55W per IEC 529, designed to MIL-STD-810GColor-matched ABS plastic input panel weather cover with 13.5mm ID gland nut installed in .82" knockout
