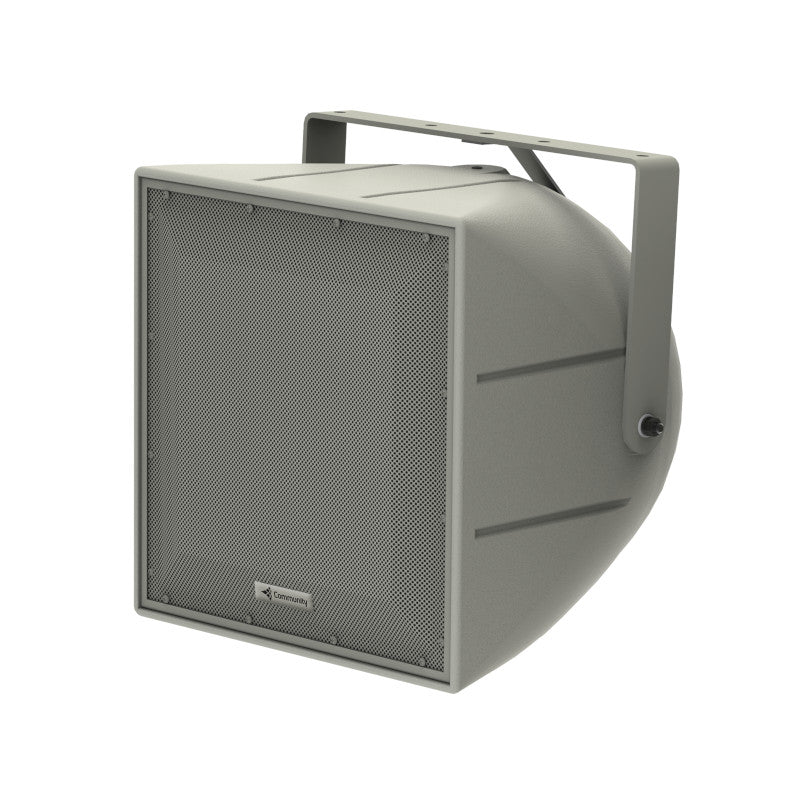

Community R.5-Z 12-Inch Weather-Resistant Speaker | Nominal Beamwidth: 90 x 40

Community R.5-Z 12-Inch Weather-Resistant Speaker | Nominal Beamwidth: 90 x 40

SoundPro Item: 62640 | Part Number: 911.1248.900

$1,486.00
$1,486.00 $1,486.00
Your Price Sold out
MSRP: $1,486.00 | MAP: $1,486.00

Usually ships in 5-7 business days

  • Premium music applications, longer distances
  • Flat, passive frequency response
  • Very high power density and output
Log in or register for YOUR best price

The Community R.5-Z 12-Inch Weather-Resistant Speaker deliver outstanding musical performance. Housed in the same size enclosures as Community’s flagship R.5 models, the two R.5-MAX models feature powerful 1.4-inch exit HF drivers and 600W neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. While providing the outstanding dynamic range and projection expected from R SERIES, the R.5-MAX offers listeners a superior musical experience with higher output than the R.5HP.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
16x16x15.94" (406.4x406.4x404.88mm)
Weight
Shipping Weight
40 lbs ( 18.14 kg)
Electrical
Minimum Impedance
4.1 ohms @ 9.6 kHz
Audio
Sensitivity (1W/1m)
103 dB SPL (125 Hz to 10 kHz 1/3 octave bands), 103 dB SPL (250 Hz to 4 kHz speech range)
Crossover Frequency
2 kHz
1. Sensitivity
Free field pink noise measurement at 35 ft (10.7 m) at 75% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
Connectivity
Max Input Ratings
200W continuous, 500W program, 40 volts RMS, 89 volts momentary peak
Maximum Output
126 dB SPL / 133 dB SPL (peak)
Input Connection
12 foot (4 m) SJOW #16 gauge
Construction
Enclosure
Rotomolded LLDPE, light grey
Grille
3-layer WeatherStop™, light gray (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
Shipping
Weight
35 lbs (15.9 kg)
General
Loudspeaker Type
2-way, horn loaded coaxial, weather-resistant
Operating Range
85 Hz to 16 kHz, 125 Hz to 10 kHz (±4 dB)
Recommended Power Amplifier
420W to 600W @ 8 ohms
Nominal Impedance
8 ohms
Axial Q / DI
21.4 / 13.3, 1.6 kHz to 12.5 kHz
Recommended Signal Processing
90 Hz high pass filter
Drivers
LF (1) 12” Ferrofluid-cooled, HF (1) 1” exit, titanium free, Ferrofluid-cooled
Driver Protection
DYNA-TECH
Controls
None
Mounting/Rigging Provisions
(5) 3/8-16 rigging points
Required Accessories
24 dB/Oct high pass filter
Optional Accessories
PMB Series pole mount brackets
2. Watts
All wattage figures are calculated using the rated nominal impedance.
