• Community R.5-TZ 12 2-Way Full-Range 70V / 100V Speaker
1 1

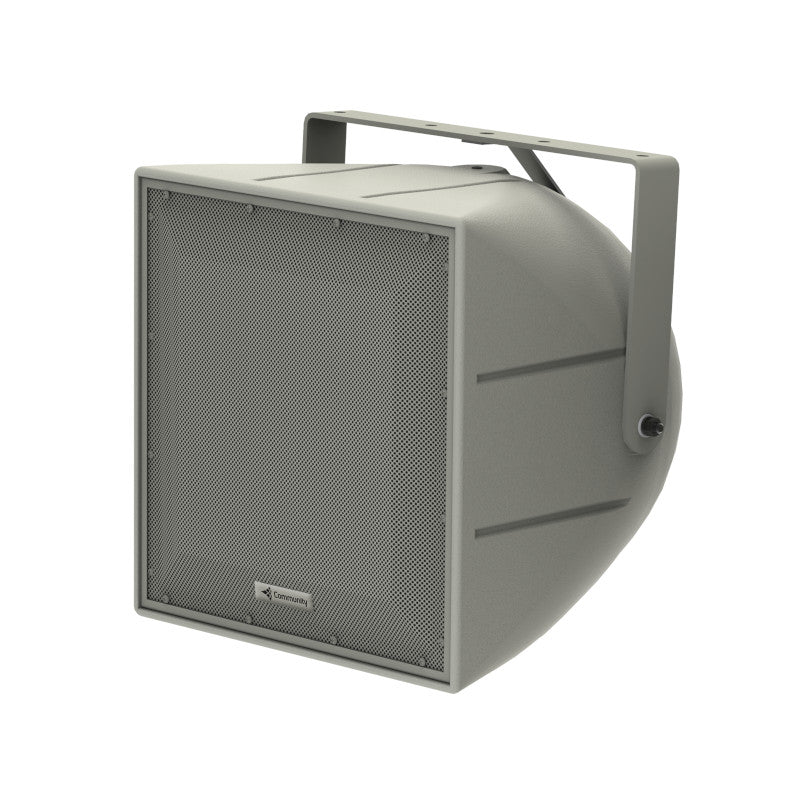

Community R.5-TZ 12-Inch Weather-Resistant Speaker | Nominal Beamwidth: 90 x 90

Community R.5-TZ 12-Inch Weather-Resistant Speaker | Nominal Beamwidth: 90 x 90

SoundPro Item: 62646 | Part Number: 911.1251.900

$1,596.00
$1,596.00 $1,596.00
Your Price Sold out
MSRP: $1,596.00 | MAP: $1,596.00

Usually ships in 5-7 business days

  • Premium music applications, longer distances
  • Flat, passive frequency response
  • Very high power density and output
Log in or register for YOUR best price

The Community R.5-TZ 12-Inch Weather-Resistant Speaker delivers outstanding musical performance. Housed in the same size enclosures as Community’s flagship R.5 models, the two R.5-MAX models feature powerful 1.4-inch exit HF drivers and 600W neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. While providing the outstanding dynamic range and projection expected from R SERIES, the R.5-MAX offers listeners a superior musical experience with higher output than the R.5HP.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
16x16x15.94" (406.4x406.4x404.88 mm)
Weight
Shipping Weight
42 lbs (19.1 kg)
Electrical
200W Nominal Impedance
25 ohms
200W Minimum Impedance
16.4 ohms @ 9.3 kHz
Audio
Sensitivity (1W/1m)
102 dB SPL (125 Hz to 10 kHz 1/3 octave bands), 102 dB SPL (250 Hz to 4 kHz speech range)
Crossover Frequency
2 kHz
1. Sensitivity
Free field pink noise measurement at 35 ft (10.7 m) at 75% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
Connectivity
Max Input Ratings
200W, 70V/100V
Maximum Output on 200W Tap
125 dB SPL
Input Connection
12 foot (4 m) SJOW #16 gauge
Construction
Enclosure
Rotomolded LLDPE, light gray
Grille
3-layer WeatherStop™, light gray (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
Shipping
Weight
37 lbs (16.8 kg)
General
Loudspeaker Type
2-way, horn loaded coaxial, weather-resistant
Operating Range
85 Hz to 16 kHz, 125 Hz to 10 kHz (±4 dB)
Recommended Power Amplifier
25W to 200W @ 70 Volts, 50W to 200W @ 100 Volts
Axial Q / DI
21.4 / 13.3, 1.6 kHz to 12.5 kHz
Recommended Signal Processing
90 Hz high pass filter
Drivers
LF (1) 12” Ferrofluid-cooled, HF (1) 1” exit, titanium free, Ferrofluid-cooled
Driver Protection
DYNA-TECH
Controls
4 position autoformer TAP select switch, 70V switchable taps @ 200W, 100W, 50W, 25W, 100V switchable taps @ 200W, 100W, 50W
Mounting/Rigging Provisions
(5) 3/8-16 rigging points
Environmental Performance
IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Required Accessories
24 dB/Oct high pass filter
Optional Accessories
PMB Series pole mount brackets
2. Watts
All wattage figures are calculated using the rated nominal impedance.
