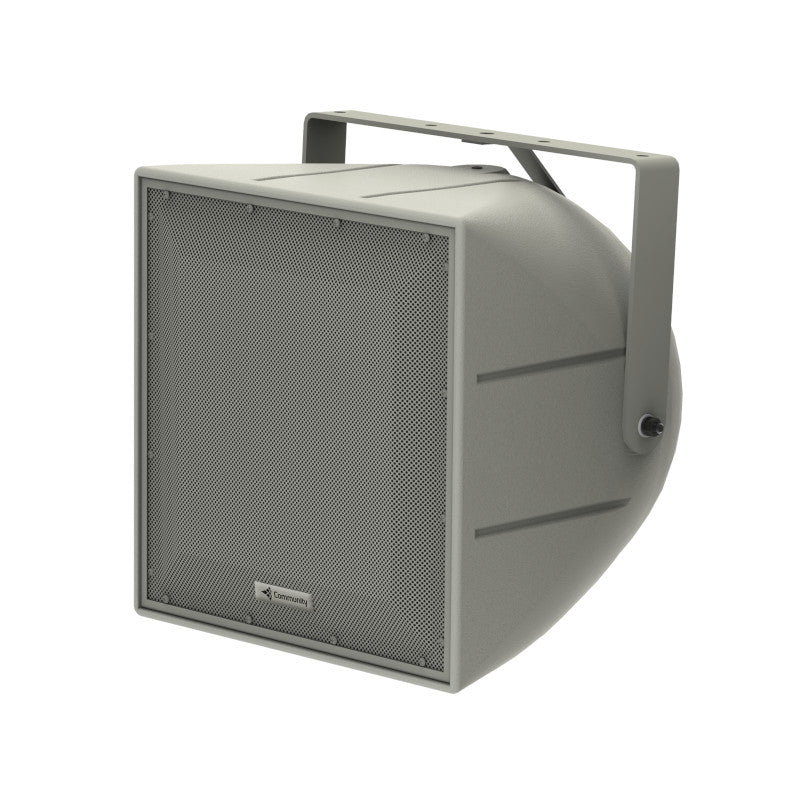

Community R.5-Z 12-Inch Weather-Resistant Speaker | Nominal Beamwidth: 60 x 60
Community R.5-Z 12-Inch Weather-Resistant Speaker | Nominal Beamwidth: 60 x 60
SoundPro Item: 46694 | Part Number: R.5-66Z
Usually ships in 5-7 business days
- Premium music applications, longer distances
- Flat, passive frequency response
- Very high power density and output
The Community R.5-Z 12-Inch Weather-Resistant Speaker deliver outstanding musical performance. Housed in the same size enclosures as Community’s flagship R.5 models, the two R.5-MAX models feature powerful 1.4-inch exit HF drivers and 600W neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. While providing the outstanding dynamic range and projection expected from R SERIES, the R.5-MAX offers listeners a superior musical experience with higher output than the R.5HP.
- Loudspeaker Type2-way, horn loaded coaxial, weather-resistant
- Operating Range
- 85 Hz to 16 kHz
- 125 Hz to 10 kHz (±4 dB)
- Max Input Ratings
- 200W continuous, 500W program
- 40 volts RMS, 89 volts momentary peak
- Recommended Power Amplifier420W to 600W @ 8 ohms
- Sensitivity (1W/1m)
- 103 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
- 103 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output126 dB SPL / 133 dB SPL (peak)
- Nominal Impedance8 ohms
- Minimum Impedance4.1 ohms @ 9.6 kHz
- Axial Q / DI21.4 / 13.3, 1.6 kHz to 12.5 kHz
- Crossover Frequency2 kHz
- Recommended Signal Processing90 Hz high pass filter
- Drivers
- LF (1) 12” Ferrofluid-cooled
- HF (1) 1” exit, titanium free, Ferrofluid-cooled
- Driver ProtectionDYNA-TECH
- Input Connection12 foot (4 m) SJOW #16 gauge
- ControlsNone
- EnclosureRotomolded LLDPE, light grey
- Mounting/Rigging Provisions(5) 3/8-16 rigging points
- Grille3-layer WeatherStop™, light gray (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Required Accessories24 dB/Oct high pass filter
- Optional Accessories PMB Series pole mount brackets
- Dimensions (HxWxD)16x16x15.94" (406.4x406.4x404.88mm)
- Weight35 lbs (15.9 kg)
- Shipping Weight40 lbs ( 18.14 kg)
- Notes
- 1. Sensitivity: Free field pink noise measurement at 35 ft (10.7 m) at 75% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
- 2. Watts: All wattage figures are calculated using the rated nominal impedance.
