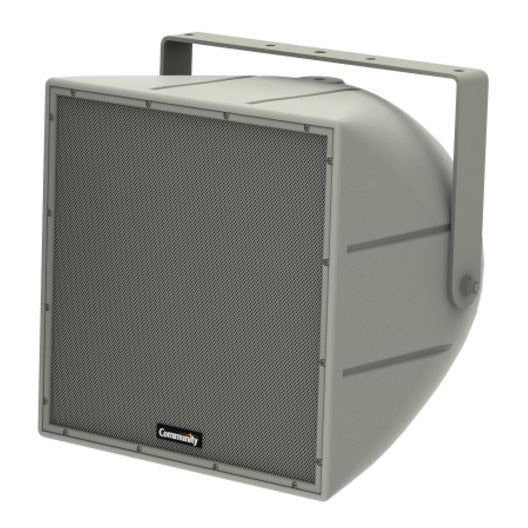

Community R.5COAX66T 12-Inch Weather-Resistant Speaker
Community R.5COAX66T 12-Inch Weather-Resistant Speaker
SoundPro Item: 62652 | Part Number: R.5COAX66T
Usually ships in 5-7 business days
- Weather-treated drivers and crossovers
- Included zinc-rich epoxy dual-layer powder-coated steel grille and yoke
- Weather and UV-resistant rotomolded enclosure with integral mounting points
- High efficiency, high fidelity and high power passive crossover
The largest member of the coaxial family, the 12-inch R.5COAX features the same high sensitivity and high output as the R.35COAX but with even greater LF extension. Community’s exclusive LF driver and 1-inch exit horn loaded compression driver produce a wide range, smooth musical frequency response with high efficiency, ensuring both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.
- Loudspeaker Type2-way, coaxial, weather-resistant, full-range
- Operating Range
- 80 Hz to 18 kHz
- 90 Hz to 13 kHz (±3.5 dB)
- 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V
- Sensitivity (1W/1m)
- 97 dB SPL (100 Hz to 13 kHz 1/3 octave bands)
- 96 dB SPL (250 Hz to 4 kHz speech range)
- 200W Nominal Impedance25 Ohms
- Minimum Impedance15.9 Ohms @ 9.8 kHz
- Nominal –6dB Beamwidth
- 60°H (+20° / -6°, 1.6 kHz to 12.5 kHz)
- 60°V (+20° / -3°, 1.6 kHz to 12.5 kHz)
- Axial Q / DI15.2 / 11.8, 1.6 kHz to 12.5 kHz
- Crossover Frequency2 kHz
- Recommended Signal Processing80 Hz high pass filter
- Drivers
- LF 1 x 12”
- HF 1 x 1” exit titanium free, Ferrofluid-cooled
- Driver ProtectionDYNA-TECH protection circuitry
- Input Connection12 foot (4m) SJOW #16-gauge cable
- EnclosureRotomolded LLDPE, light grey
- Mounting/Rigging Provisions(5) 3/8-16 rigging points
- Grille3-layer WeatherStop™, light gray (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Required Accessories24 dB/Oct high pass filter
- Dimensions (HxWxD)16x1615.94" (406.4x406.4x404.88 mm)
- Weight38.5 lbs (17.46 kg)
- Shipping Weight47 lbs ( 21.3 kg)
- Environmental PerformanceIEC529 IP54W rating with a minimum 5-degree downward aiming angle
- Controls
- 4 position autoformer TAP select switch
- 70V switchable taps @ 200W, 100W, 50W, 25W
- 100V switchable taps @ 200W, 100W, 50W
- Notes
- 1. Sensitivity: Free field pink noise measurement at 20 ft (6.1 m) at 50% power; extrapolated to 1 meter and an input of 70 volts RMS.
- 2. Watts: All wattage figures are calculated using the rated nominal impedance.
