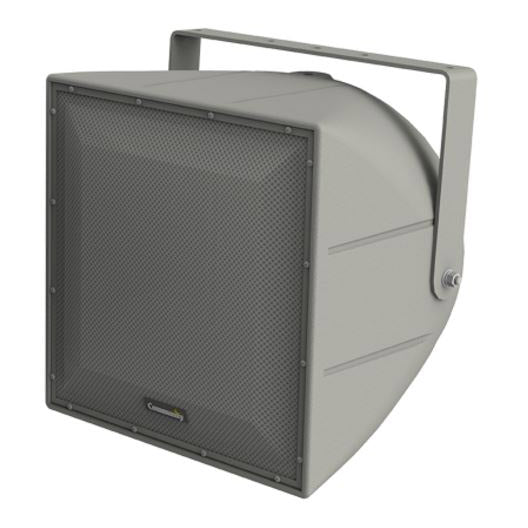

Community R.5HP 3-Way 12-Inch Weather-Resistant Speaker
Community R.5HP 3-Way 12-Inch Weather-Resistant Speaker
SoundPro Item: 62660 | Part Number: R.5HP
Usually ships in 5-7 business days
- Weather-treated drivers and crossovers
- Weather-resistant, rotomolded UV enclosure with corrosion-resistant zinc-rich epoxy dual-layer powder coated
- High efficiency with pattern control down to 630 Hz
- High power passive crossover
The higher power three-way R.5HP offers higher sensitivity and additional mid range clarity for noisy or reverberant environments. The R.5HP maximizes vocal projection and intelligibility over distance by incorporating a Community M200 midrange compression driver on a coaxially mounted 60° x 40° horn, creating a focused directivity pattern with a pronounced response emphasis in the midrange voice band. The LF and HF contribute significantly to the response, resulting in effortless, realistic voice reproduction that is ideal for voice PA applications in stadiums, fair grounds, or auto racing tracks.
- Loudspeaker Type3-way, horn loaded coaxial, weather-resistant
- Operating Range
- 90 Hz to 16 kHz
- 125 Hz to 12500 Hz (± 6 dB)
- Max Input Ratings200W, 70/100V
- Recommended Power Amplifier
- 25W to 200W @ 70 Volts
- 50W to 200W @ 100 Volts
- Sensitivity (1W/1m)
- 105 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
- 106 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output on 200W Tap128 dB SPL
- 200W Nominal Impedance25 ohms
- 200W Minimum Impedance12.1 ohms @ 11 kHz
- Nominal –6dB Beamwidth
- 60° H (+32° / -17°, 2 kHz to 10 kHz)
- 40° V (+33° / -1°, 2 kHz to 10 kHz)
- Axial Q / DI20.5 / 13.1, 2 kHz to 12.5 kHz
- Crossover Frequency600 Hz / 4 kHz
- Recommended Signal Processing70 Hz high pass filter
- Drivers
- LF (1) 12” weather treated, Ferrofluid-cooled
- MF (1) M200, Ferrofluid-cooled
- HF (1) 1” exit, titanium free, Ferrofluid-cooled
- Driver ProtectionNone
- Input Connection12 foot (4 m) UV-resistant #18 gauge multi-conductor cable
- ControlsNone
- EnclosureRotomolded LLDPE, light grey
- Mounting/Rigging Provisions(5) 3/8-16 rigging points
- Grille3-layer WeatherStop™, light gray (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Required AccessoriesNone
- Optional AccessoriesPMB Series pole mount brackets (sold separately)
- Dimensions (HxWxD)16x16x16.187" (406.4x406.4x411.15mm)
- Weight45.5 lbs (20.6 kg)
- Shipping Weight52 lbs (23.6 kg)
- Environmental PerformanceIEC529 IP55W rating with a minimum 5-degree downward aiming angle
- Notes
- 1. Sensitivity: Free field pink noise measurement at 40 ft (12.2 m) at 60% power; extrapolated to 1 meter and an input of 2.45 volts RMS.
- 2. Watts: All wattage figures are calculated using the rated nominal impedance.
