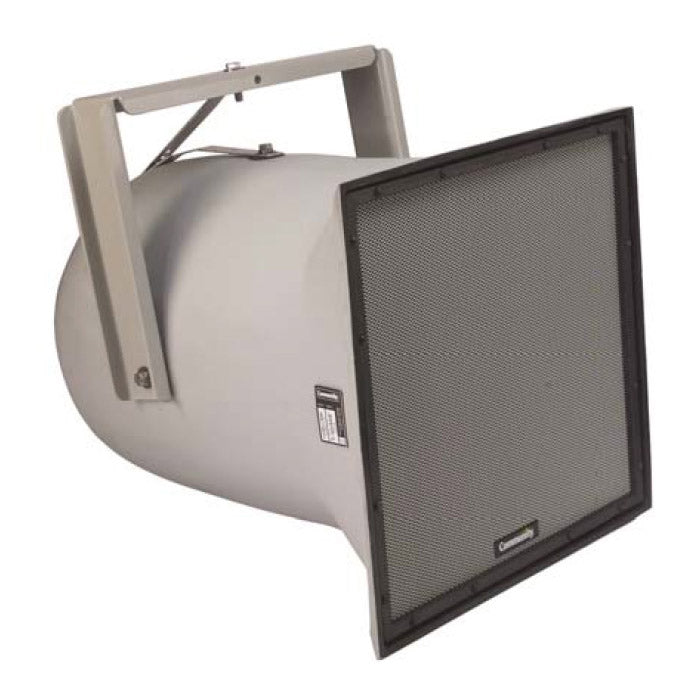

• Community R2-694Z All-Weather 3-Way Speaker System
1 1

Community R2-694Z Dual 12-Inch Weather-Resistant Speaker

Community R2-694Z Dual 12-Inch Weather-Resistant Speaker

SoundPro Item: 46702 | Part Number: 911.1279.900

$4,431.00
$4,431.00 $4,431.00
Your Price Sold out
MSRP: $4,431.00 | MAP: $4,431.00

Usually ships in 5-7 business days

  • Weather resistant construction
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Application-specific coverage pattern
  • High-efficiency horn loading
  • High-fidelity, full-range reproduction of music and speech
  • Included weather-resistant mounting yoke for easy mounting and aiming
  • Five-year product warranty / Fifteen-year enclosure warranty
Log in or register for YOUR best price

The R2-694Z full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.

The R2-694Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.

Applications

  • Athletic fields (football, soccer, baseball, tennis)
  • Small arenas, athletic field houses
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Racing tracks, skating rinks, swimming pools
  • Convention centers, factories, warehouses
  • Cruise ships
  • Portable sound systems
  • Electronic carillons
View full details

Specifications

Dimensions
Dimensions (HxWxD)
24.75" x 24.75" x 30.75"
Electrical
Continuous Power Handling 3 @ Nominal Impedance
40V, 400W @ 4 ohms (1600W peak)
Audio
Nominal Sensitivity 4
@1W 104dB, @2.83 V 107 dB
Nominal Max SPL 5 (whole space)
Peak 136 dB, Continuous 130 dB
Equialized Sensitivity 6
@ 1W 104dB, @ 2.83V 107dB
Equalized Max SPL 7
Peak 136 dB, Continuous 130 dB
Connectivity
Input Connection
12' (3.6m) SJOW #16 cable
Shipping
Weight
73 pounds (loudspeaker only) 96 pounds (loudspeaker and yoke)
General
Operating Mode
passive
Operating Environment
indoor / continuous outdoor direct exposure
Operating Range2
70Hz to 16.5 kHz
Nominal Beamwidth (HxV)
60°-90°x 40°
LF
2 x 12" (305mm) weather-treated, Ferrofluid-cooled
MF
1 x M200 2" exit, non-metallic diaphragm, Ferrofluid-cooled
HF
1 x 1" exit, titanium diaphragm
Recommended Amplifiers
400W - 800W @ 4 ohms, (40V - 57V)
Mounting Points
(5) 1/2"-13 threaded rigging points, Steel zinc-rich epoxy dual-layer powder-coated mounting yoke; Aluminum aiming straps to secure angle
Environmental
IP55 per IEC 60529, conforms with MIL-STD-810G
2
OPERATING RANGE The frequency range in which the on-axis processed response remains within 10dB of the average SPL.
3
CONTINUOUS POWER HANDLING Maximum continuous input voltage (and the equivalent power rating, in watts, at the stated nominal impedance) that the system can withstand, without damage, for a period of 2 hours using an EIA-426-B defined spectrum; with recommended signal processing and protection filters.
4
NOMINAL SENSITIVITY Averaged SPL over the operating range with an input voltage that would produce 1 Watt at the nominal impedance and the averaged SPL over the operating range with a fixed input voltage of 2.83V, respectively; swept sine wave axial measurements with no external processing applied in whole space, except where indicated.
5
NOMINAL MAXIMUM SPL Calculated based on nominal / peak power handling, respectively, and nominal sensitivity; exclusive of power compression.
6
EQUALIZED SENSITIVITY The respective SPL levels produced when an EIA-426-B signal is applied to the equalized loudspeaker system at a level which produces a total power of 1 Watt, in sum, to the loudspeaker subsections and also at a level which produces a total voltage, in sum, of 2.83V to the loudspeaker subsections, respectively; each referenced to a distance of 1 meter
7
EQUALIZED MAXIMUM SPL The SPL produced when an EIA-426-B signal is applied to the equalized loudspeaker system, at a level which drives at least one subsection to its rated continuous input voltage limit, referenced to a distance of 1 meter. The peak SPL represents the 2:1 (6dB) crest factor of the EIA-426-B test signal.
