• Community RMG-200A Voice Range Announcement System
1 1

Community RMG-200A Voice Range Announcement System

Community RMG-200A Voice Range Announcement System

SoundPro Item: 63022 | Part Number: 930-00892-00001

$1,575.00
$1,575.00 $1,575.00
Your Price Sold out
MSRP: $1,575.00 | MAP: $1,575.00

Usually ships in 5-7 business days

  • 2-inch (51 mm) throat exit M200 driver
  • Low distortion, high efficiency, high power output
  • Non-metallic diaphragm
  • Swivel yoke bracket included
  • Highly resistant to harsh environments, IP65W rating per IEC 60529
Log in or register for YOUR best price

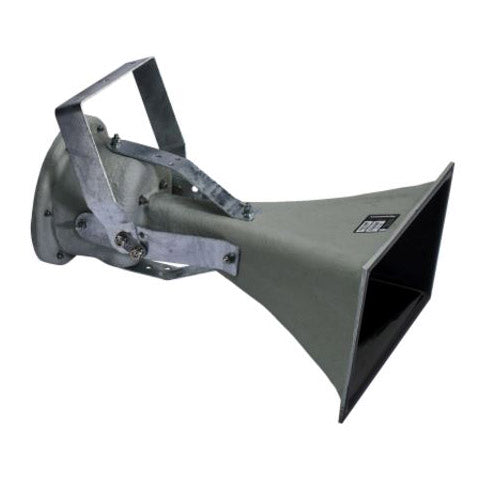

The RMG-200 is an extremely efficient standalone horn/driver system designed for long projection voice-range sound reinforcement, announcement and signaling applications. The 50° x 40° horn, driven by Community’s M200 midrange compression driver, delivers focused, high-output sound projection from 400 Hz to 8 kHz with effortless vocal clarity and extremely low distortion. The rugged fiberglass construction and inherently weather-resistant driver design ensure exceptional long-term durability and performance predictability. The RMG-200 is available from the factory with a 200W autoformer installed for 70V/100V applications. A weather-resistant, rotatable hot-dipped galvanized steel mounting bracket is included for installation convenience.

View full details

Specifications

Dimensions
Height
9.75 inches (248 mm)
Width (front)
17.63 inches (448 mm)
Width (rear)
10.5 inches (267 mm)
Depth
25 inches (635 mm)
Weight
Weight (with bracket)
21 lbs (9.5 kg)
Shipping Weight
27 lbs (12.2 kg)
Electrical
Minimum Impedance
10.8 Ohms @ 1.8 kHz
Audio
Sensitivity (1W/1m)
115 dB SPL (400 Hz to 4 kHz 1/3 octave bands)
Crossover Frequency
No internal crossover
1. Sensitivity
Free field pink noise measurement at 40 ft (12.2 m) at 50% power; extrapolated to 1 meter and an input of 3.4 volts RMS.
Connectivity
Max Input Ratings
75W continuous, 120W program
Maximum Output
134 dB SPL / 141 dB SPL (peak)
Input Connection
16 gauge, 2 conductor, 12 foot (4 m) SJOW cable through gland nut
Construction
Enclosure
Fiberglass
General
Loudspeaker Type
Voice-range horn system
Operating Range
400 Hz to 8 Khz, 500 Hz to 4 khz (±3.5 dB)
Recommended Power Amplifier
100W to 140W
Nominal Impedance
11 Ohms
Nominal –6dB Beamwidth
50°H (+14° / -9°, 2 kHz to 4 kHz), 40°V (+10° / -10°, 2 kHz to 4 kHz)
Axial Q / Di
35 / 15.4, 2 kHz to 4 kHz
Recommended Signal Processing
400 Hz high pass filter 24dB / Oct.
Drivers
MF 1 x M200, Ferrofluid-cooled
Driver Protection
None
Controls
None
Enclosure Hardware
None
Mounting/Rigging Provisions
(4) 1/4” holes at the corners of the horn mouth Grille: None
Environmental Performance
IEC529 IP66W rating with a minimum 5-degree downward aiming angle
Required Accessories
400 Hz high pass filter 24dB / Oct.
2. Watts
All wattage figures are calculated using the rated nominal driver impedance.
