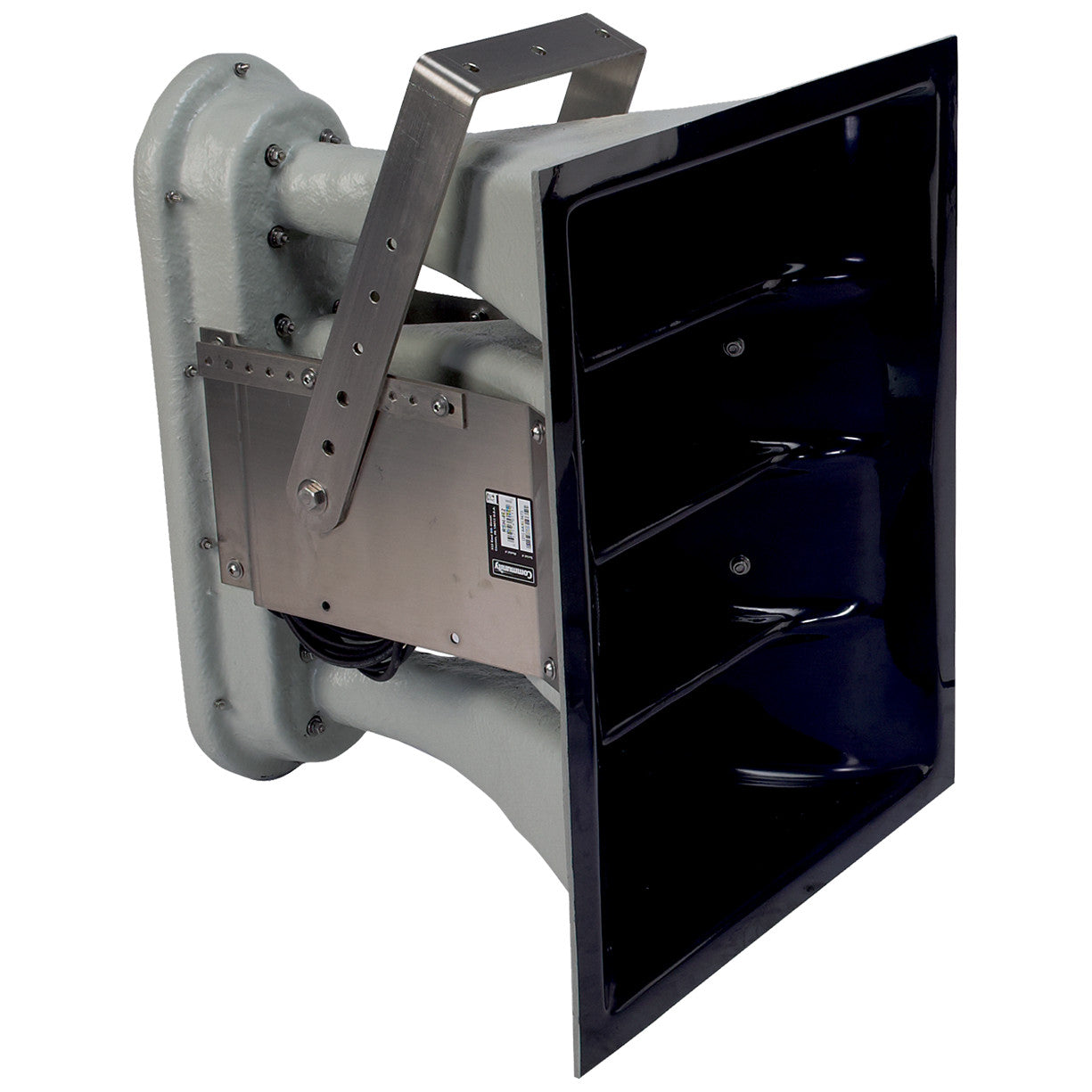

• Community RSH-462 Exponential Focused Array High Level Horn System
1 1

Community RSH-462 Horn Speaker

Community RSH-462 Horn Speaker

SoundPro Item: 63262 | Part Number: 911.1298.900

$4,083.00
$4,083.00 $4,083.00
Your Price Sold out
MSRP: $4,083.00 | MAP: $4,083.00

Usually ships in 5-7 business days

  • 4x 2-inch (51mm) throat exit
  • High efficiency, high power output
  • Non-metallic diaphragms
  • Highly resistant to harsh environments
  • IP65W rating per IEC 60529
Log in or register for YOUR best price

The RSH-462 is Community’s highest efficiency, longest projection distance loudspeaker system, also designed for use in standalone voice-range sound reinforcement, announcement and signaling applications. It is ideal for very long projection voice and critical emergency warning notification systems. Four inherently weather-resistant M200 midrange compression drivers, mounted on Community’s proprietary FocusedArray™ 60° x 20° exponential waveguide, provide extremely high-output sound reproduction from 400 Hz to 8 kHz with unrivaled vocal clarity and very low distortion. A robust, hot-dipped galvanized steel, locking mounting bracket is included with the RSH-462.

View full details

Specifications

Dimensions
Throat Entrance Diameter
4 x 2”
Exterior
Grey gelcoat
Dimensions (HxWxD)
28.5x24.5x22.5" (723.9x622.3x571.5mm)
Weight
Weight (loudspeaker)
54.2 lbs (24.58 kg)
Weight (loudspeaker with Bracket assembly)
71.3 lbs (32.34 kg)
Shipping Weight
82 lbs (37.2 kg)
Electrical
Minimum Impedance
10.8 ohms @ 570 Hz
Audio
Axial Sensitivity (1W/1m)
118 dB SPL (600 Hz to 4 kHz 1/3 octave bands), 117 dB SPL (250 Hz to 4 kHz speech range)
Connectivity
Max Input Ratings
300W continuous, 750W program, 49 volts RMS, 110 volts momentary peak
Maximum Output
143 dB SPL / 150 dB SPL (peak)
Construction
Construction
Hand laminated, reinforced composite fiberglass
Interior
Black gelcoat
General
Loudspeaker Type
Exponential FocusedArray™ Horn System
Operating Range
400 Hz to 8 kHz, 600 Hz to 4 kHz (± 4dB)
Recommended Power Amplifier
630W to 900W @ 8 ohms
Usable LF Limit
400 Hz
Nominal Impedance
11 ohms
Nominal –6dB Beamwidth
60°H (+1° / -4°, 1600 Hz to 4000 Hz), 20°V (+20° / -0°, 1600 Hz to 4000 Hz)
Axial Q
27.5 1.6 to 4 kHz
Axial DI
14.4
Required Signal Processing
400 Hz high pass filter (24 dB/Oct), 8 kHz low pass filter (12 db/Oct), (for 4 x M200 driver standalone)
Drivers
4 x M200 ferrofluid-cooled
Environmental Performance
IEC529 IP66W rating with a minimum 5-degree downward aiming angle
