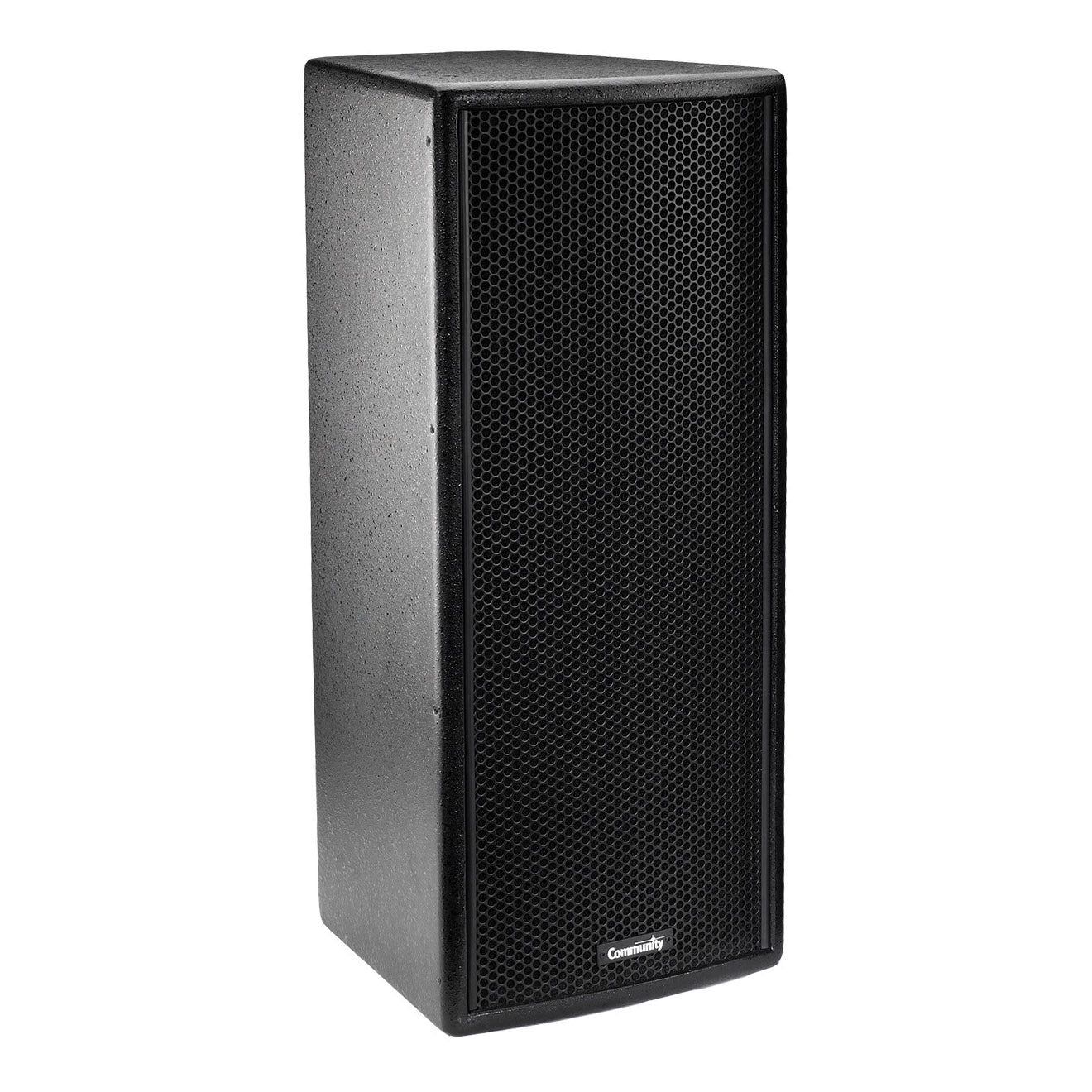

- Loudspeaker TypeCompact two-way, full-range, trapezoidal, vented bass, frequency shaded LF, user rotatable horn
- Operating Range60 Hz to 18 kHz (-10 dB)
- Frequency Response90 Hz to 16 kHz (±3 dB)
- Max Input Ratings300W continuous, 750W program 34.6 volts RMS, 69.2 volts momentary peak
- Sensitivity (1W/1m)94 dB (100 Hz to 12.5 kHz) free space
- Maximum Output119 dB SPL / 125 dB SPL (peak)
- Nominal Impedance4 ohms
- Minimum Impedance3.4 ohms @ 200 Hz
- Nominal –6dB Beamwidth90° H x 70° V (in vertical position)
- Crossover Frequency1.3 kHz
- Recommended Signal Processing70 Hz, 24 dB/octave Butterworth high pass filter
- Drivers:
- LF 2 x 8-inch cone
- HF 1 x 1-inch
- Driver ProtectionDYNA-TECH protection circuitry
- Input ConnectionNL4-compatible locking connector with terminal strip in parallel
- ControlsNone
- Enclosure:
- Trapezoidal (22.5° included angle)
- 18mm, 11-ply cross-laminated birch
- Mounting/Rigging Provisions:
- 9 x M6 threaded rigging fittings
- 4 x M8 for third-party suspension products
- FinishCatalyzed polyester two-part paint, black or white
- GrillePowder coated steel, black or white finish
- Required AccessoriesNone
- Dimensions (HxWxD)25.5x11.3x11.7" (649x287x298mm)
- Weight
- Incl. bracket: 36.7 lbs (16.7 kg)
- With autoformer: 38.7 lbs (17.7 kg)
- Model Options:
- V2-28B (low impedance, black finish)
- V2-28W (low impedance, white finish)
- V2-28BT (built-in autofomer for 70V100V applications, black finish)
- V2-28WT (built-in autofomer for 70V100V applications, white finish)
- NOTES:
- 1. Sensitivity: Free field pink noise measurement at 6ft (1.8m) at 10% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
- 2. Watts: All wattage figures are calculated using the rated nominal impedance.
