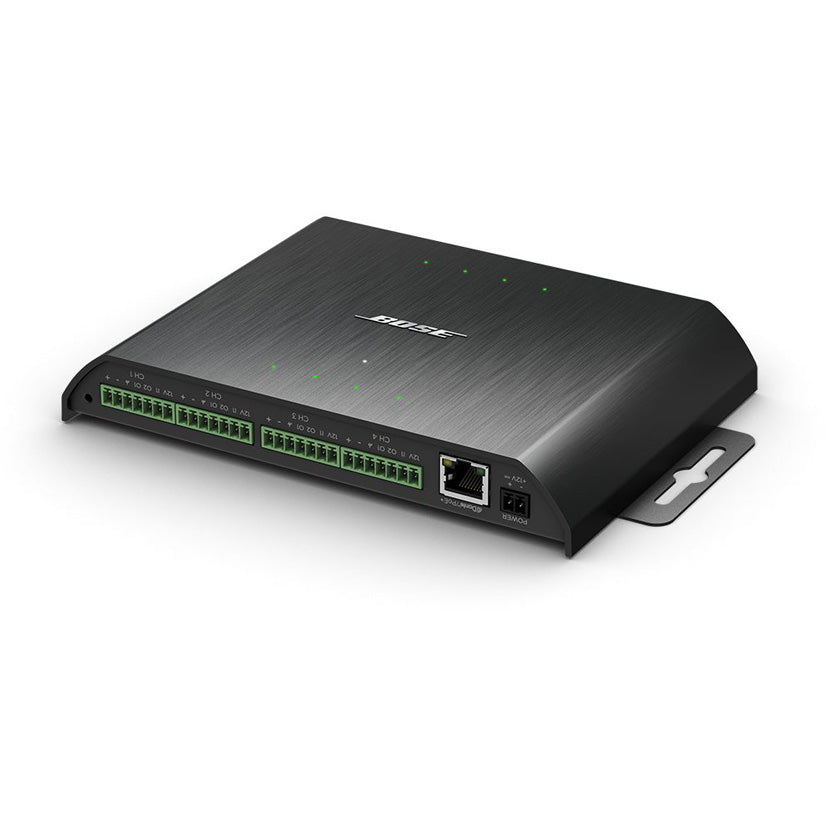

Bose ControlSpace EX-8ML Microphone/GPIO Dante Endpoint

Bose ControlSpace EX-8ML Microphone/GPIO Dante Endpoint

SoundPro Item: 107111 | Part Number: 772045-0110

$1,399.00
$1,699.00 $1,399.00
Your Price Sold out
MSRP: $1,699.00 | MAP: $1,399.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-8ML Dante endpoint, is a convenient, cost effective solution for connecting up to 8 conferencing microphones over a single Cat 5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-8ML adds 8 high-quality microphone/line inputs, 8 GPI, and 16 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing routing, and simplified logic control in ControlSpace Designer make configuring the EX-8ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.

View full details

Specifications

AMPLIFICATION
Frequency Response
20 Hz - 20 kHz (±1 dB)
THD+N
< 0.01% at any gain setting, input signal 3 dB below maximum
AUDIO INPUTS, ANALOG
Input Channels
8 balanced, mic/line
Connectors
(8) 7-pin Euroblock, 3.81 mm, detachable
Equivalent Input Noise
-115 dBu at +45 dB gain
Sensitivity Options
0 dB, +15 dB, +30 dB, +45 dB, software-selectable
Input Impedance
> 1.8 kΩ at any gain setting
Maximum Input Level
+8 dBu at 0 dB gain
Phantom Power
48 VDC, software-selectable per input
AUDIO INPUTS/OUTPUTS, DIGITAL
Connectors
(1) RJ-45 Dante in / (1) RJ-45 Dante out
COMPLIANCE
EMC
FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition)
CONTROL INPUTS
Inputs (Control)
(8) general-purpose (1 per audio input), 7-pin Euroblock, 3.81 mm
CONTROL OUTPUTS
Outputs (Control)
(16) general-purpose (2 per audio input), 7-pin Euroblock, 3.81 mm
ELECTRICAL
Connectors
(1) RJ-45 port / (1) Euroblock, 2 pins
Power Range
12 VDC, daisy-chainable
PoE Class
Class 0 802.3at PoE+, PD-compliant
Power Range
12 VDC, 200 mA
AC Power Consumption
5.6 W + 2 W phantom power (if used)
GENERAL
Compatible with
ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Microphone Extension Cable, ControlSpace EX Endpoint Mounting Bracket
Software Applications
ControlSpace Designer 5.0 or later (Windows)
INDICATORS AND CONTROLS
LED Status Indicators
(1) power LED, (8) input signal status LEDs
PHYSICAL
Colors
Black
Suspension/Mounting
(2) mounting tabs
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Product Dimensions (HxWxD)
1.1 in x 8.4 in x 5.2 in (29 mm x 213 mm x 132 mm)
