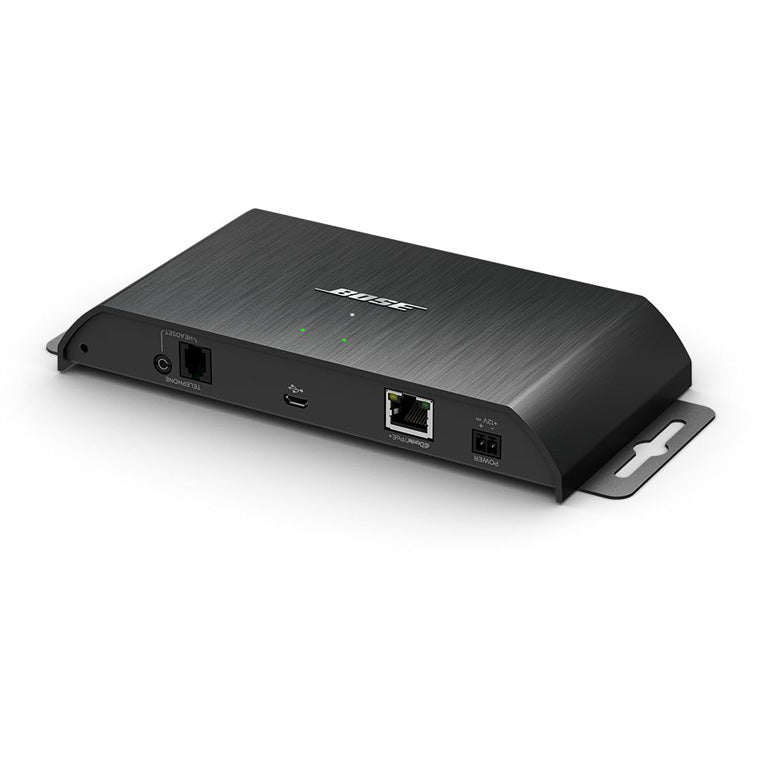

Bose ControlSpace EX-UH USB/headset Dante Endpoint

Bose ControlSpace EX-UH USB/headset Dante Endpoint

SoundPro Item: 107112 | Part Number: 771784-0110

$834.00
$834.00 $834.00
Your Price Sold out
MSRP: $834.00 | MAP: $834.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-UH Dante endpoint, is a convenient, cost effective solution for connecting remote BYOD devices or telephone handsets over a single Cat 5/6 cable. Whether used under a conference table to connect a laptop running a soft-codec such as Skype for Business, or to connect a customer's handset for bridging calls, or both, the EX-UH's high-quality USB and headset to Dante audio conversion simplifies wiring and adding extra codecs to a conferencing system. Autodiscovery, drag and drop programming, and auto-routing in ControlSpace Designer make connecting the EX-UH easy.

View full details

Specifications

AMPLIFICATION
Frequency Response
0 Hz - 20 kHz (±1 dB), USB audio / 20 Hz - 20 kHz (±1 dB), TRRS audio / 200 Hz - 10 kHz (±1 dB), RJ-9 audio
THD+N
0.02%, USB audio / 1.0%, TRRS audio / 0.05%, RJ-9 audio
AUDIO INPUTS, ANALOG
Input Channels
1
Connectors
(1) RJ-9, (1) 1/8-in (3.5 mm) TRRS
AUDIO INPUTS/OUTPUTS, DIGITAL
Channels
2 in, 2 out
Connectors
(1) RJ-45 Dante in / (1) RJ-45 Dante out / (1) USB 2.0 micro-B
AUDIO OUTPUTS, ANALOG
Channels
2
Connectors
(1) RJ-9, (1) 1/8 in (3.5 mm) TRRS
COMPLIANCE
EMC
FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition)
ELECTRICAL
Connectors
(2) Euroblock, 2 pins, 3.81 mm
Power Range
12 VDC, daisy-chainable
PoE Class
Class 0 802.3at PoE+, PD-compliant
AC Power Consumption
5 W
GENERAL
Compatible with
ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Mounting Bracket
Software Applications
ControlSpace Designer 5.0 or later (Windows)
INDICATORS AND CONTROLS
LED Status Indicators
(1) power LED, (1) USB audio signal LED, (1) headset audio signal LED
PHYSICAL
Colors
Black
Suspension/Mounting
(2) mounting tabs
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Product Dimensions (HxWxD)
1.1 in x 8.4 in x 3.6 in (29 mm x 213 mm x 92 mm)
