Specifications
Audio
Frequency Response
20 Hz to 20 kHz
Polar Pattern
Omnidirectional
Sensitivity
W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa); W5 (red band): 4.0 mV/Pascal (-48 dB re 1V/Pa)
Equivalent Acoustic Noise
24 dBA
Overload Sound Level
Wireless: 140 dBA SPL (5V, red band); Phantom: 150 dBA SPL (48V, red band)
Electrical
Power Requirements
Wireless: 3V to 12V at 200 uA; Phantom: 9V to 48V (4mA at 48V)
Connectivity

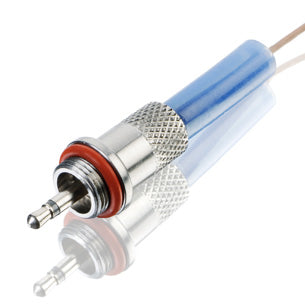

Connector
Waterproof 2.5mm
Gain
Mid Gain
Compatibility
Lectrosonics MM200, MM400, MM400a, MM400b, MM400c
Construction
Cable Length
5 Feet
Cable Diameter
2mm
Cable Material
Duramax Aramid-Reinforced
Color
Black
Dimensions
Capsule Dimensions
0.23" x 0.18" (5.8mm x 4.6mm)
Shipping Dimensions
9.125" x 5.125" x 1.375"
Weight
Capsule Weight
0.012 oz (0.34 g)
Shipping Weight
0.75 lbs
Identifiers
MPN
B3W5FF05BLW
