Specifications
Audio
Polar Pattern
Omnidirectional
Frequency Response
20 Hz to 20 kHz
Sensitivity (W4 Standard, Gray Band)
16.0 mV/Pa (-36 dB re 1V/Pa)
Sensitivity (W5 Mid, Red Band)
7.0 mV/Pa (-43 dB re 1V/Pa)
Sensitivity (W6 Low, Blue Band)
2.0 mV/Pa (-54 dB re 1V/Pa)
Equivalent Acoustic Noise (W4)
24 dBA
Equivalent Acoustic Noise (W5)
29 dBA
Equivalent Acoustic Noise (W6)
39 dBA
Overload Sound Level (W4)
120 dB SPL
Overload Sound Level (W5)
130 dBA SPL
Overload Sound Level (W6)
140 dBA SPL
Electrical
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load +5V with 6.8 kOhm load +9V with 15 kOhm load
Connectivity
Connector

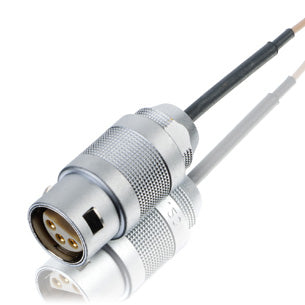

Lemo 6 pin (FFA.2C.306)
Detachability
Fixed/Non-Detachable
Compatibility
Audio Limited RMS-2000-mxl, TX2000
Construction
Cable Length
5 Feet
Cable Diameter
1.25mm
Cable Type
Aramid-Reinforced
Color
Black
Weight
Microphone Weight
0.07 oz (2 g)
Shipping Weight
0.75 lb
Shipping
Shipping Dimensions
9.125" x 5.125" x 1.375"
