Specifications
Weight
Product Weight
0.07 oz (2 g)
Shipping Weight
0.75 lbs
Audio
Frequency Response (Directional)
30 Hz to 15 kHz
Sensitivity (Directional W7, Purple Band)
0.6 mV/Pascal
Equivalent Acoustic Noise (W7)
39 dBA
Overload Sound Level (Directional W7)
145 dBA SPL
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load, +5V with 6.8 kOhm load, +9V with 15 kOhm load
Connectivity
Connector Type
TA4F (AX)
Compatibility
Shure AD1, ADX1, AXT100TA4F, GLXD1, PGXD1, QLXD1, ULXD1
Construction
Cable Diameter
2mm
Cable Type
Duramax Aramid-Reinforced
Cable Length
5 Feet

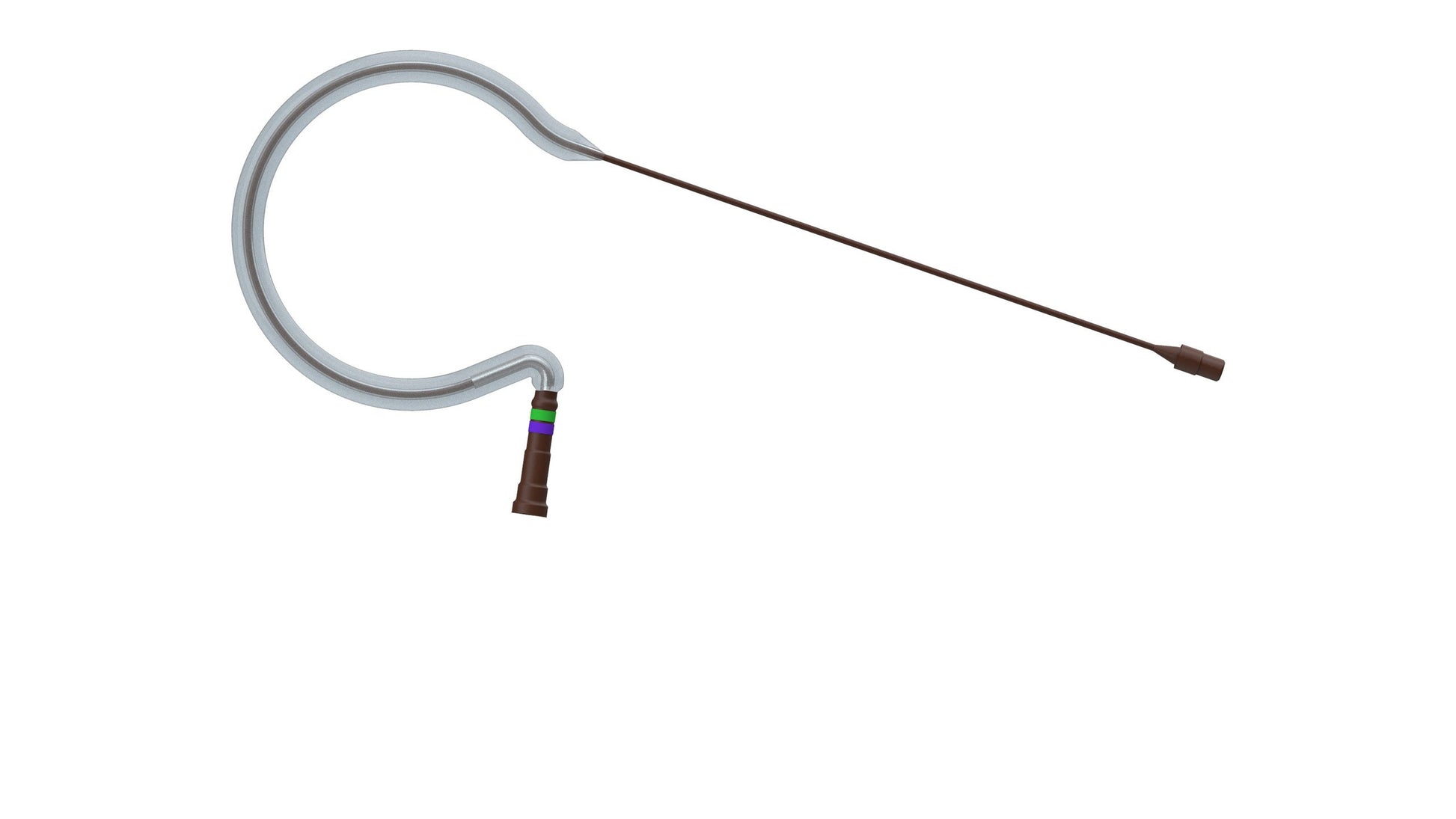

Boom Type
Flexible boom and springy ear section
Color
Cocoa
Shipping
Shipping Dimensions
9.125" x 5.125" x 1.375"
Weight
0.07 oz (2 g)
General
Omnidirectional
20 Hz to 20 kHz
Omnidirectional W5 (no band)
7.0 mV/Pascal
Omnidirectional W6 (blue band)
2.0 mV/Pascal
Omnidirectional W7 (purple band)
0.7 mV/Pascal
Directional W5 (no band)
6.0 mV/Pascal
Directional W6 (blue band)
1.9 mV/Pascal
W5
24 dBA
W6
29 dBA
W7
39 dBA
Omnidirectional W5
120 dB SPL
Omnidirectional W6
130 dBA SPL
Omnidirectional W7
140 dBA SPL
Directional W5
125 dBA SPL
Directional W6
135 dBA SPL
