Specifications
Weight
Mic Weight
0.07 oz (2 g)
Shipping Weight
1 lb
Electrical
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load, +5V with 6.8 kOhm load, +9V with 15 kOhm load
Power Supply Voltage
+3V with 2.7 kOhm load, +5V with 6.8 kOhm load, +9V with 15 kOhm load
Audio
Polar Pattern
Omnidirectional
Frequency Response (Omnidirectional)
20 Hz to 20 kHz
Frequency Response (Directional)
30 Hz to 15 kHz
Sensitivity (Omni W5, no band)
7.0 mV/Pascal
Sensitivity (Omni W6, blue band)
2.0 mV/Pascal
Sensitivity (Omni W7, purple band)
0.7 mV/Pascal
Sensitivity (Directional W5, no band)
6.0 mV/Pascal
Sensitivity (Directional W6, blue band)
1.9 mV/Pascal
Sensitivity (Directional W7, purple band)
0.6 mV/Pascal
Equivalent Acoustic Noise (W5)
24 dBA
Equivalent Acoustic Noise (W6)
29 dBA
Equivalent Acoustic Noise (W7)
39 dBA
Overload Sound Level (Omni W5)
120 dB SPL
Overload Sound Level (Omni W6)
130 dBA SPL
Overload Sound Level (Omni W7)
140 dBA SPL
Overload Sound Level (Directional W5)
125 dBA SPL
Overload Sound Level (Directional W6)
135 dBA SPL
Overload Sound Level (Directional W7)
145 dBA SPL
Polar Patterns
Directional, Omnidirectional
Connectivity
Connector Type

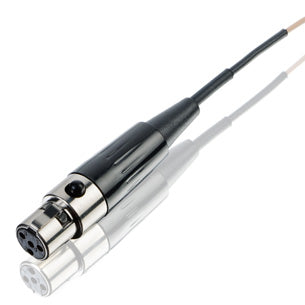

TA4F (SL)
Construction
Cable Diameter
1.25 mm
Cable Reinforcement
Aramid strength members and engineered alloys
Cable Length
5'
Flexibility
Classic/springy boom
Color
Light Beige
Shipping
Shipping Dimensions
9.75" x 7.625" x 3.25"
Weight
0.07 oz (2 g)
Identifiers
MPN
H6OW7LSL
General
Transducer Type
Condenser
Omnidirectional W5 (no band)
7.0 mV/Pascal
Omnidirectional W6 (blue band)
2.0 mV/Pascal
Omnidirectional W7 (purple band)
0.7 mV/Pascal
W5
24 dBA
W6
29 dBA
W7
39 dBA
Omnidirectional W5
120 dB SPL
Omnidirectional W6
130 dBA SPL
Omnidirectional W7
140 dBA SPL
