d&b Audiotechnik Z0516.001 V12 3-Way Passive Line Array Speaker

d&b Audiotechnik Z0516.001 V12 3-Way Passive Line Array Speaker

SoundPro Item: 206774 | Part Number: Z0516.001

$10,108.91
$10,108.91 $10,108.91
Your Price Sold out
MSRP: $10,108.91 | MAP: $10,108.91

Usually ships in 5-7 business days

  • Symmetrical Dipolar Driver Layout Maintains Constant 120° Horizontal Dispersion to 250 Hz
  • Neodymium LF Components Reduce Rigging Load in Extended Vertical Arrays
  • Polyurea Cabinet Protection Finish Delivers Impact and Weather Resistance
  • 1° Increment Splay Adjustment Enables Precise Vertical Wavefront Control
  • Coaxial MF and HF Arrangement Ensures Smooth Crossover Integration Across Bands
  • Dual NLT4 Connections Support Parallel Signal Distribution Through Multiple Units
Log in or register for YOUR best price

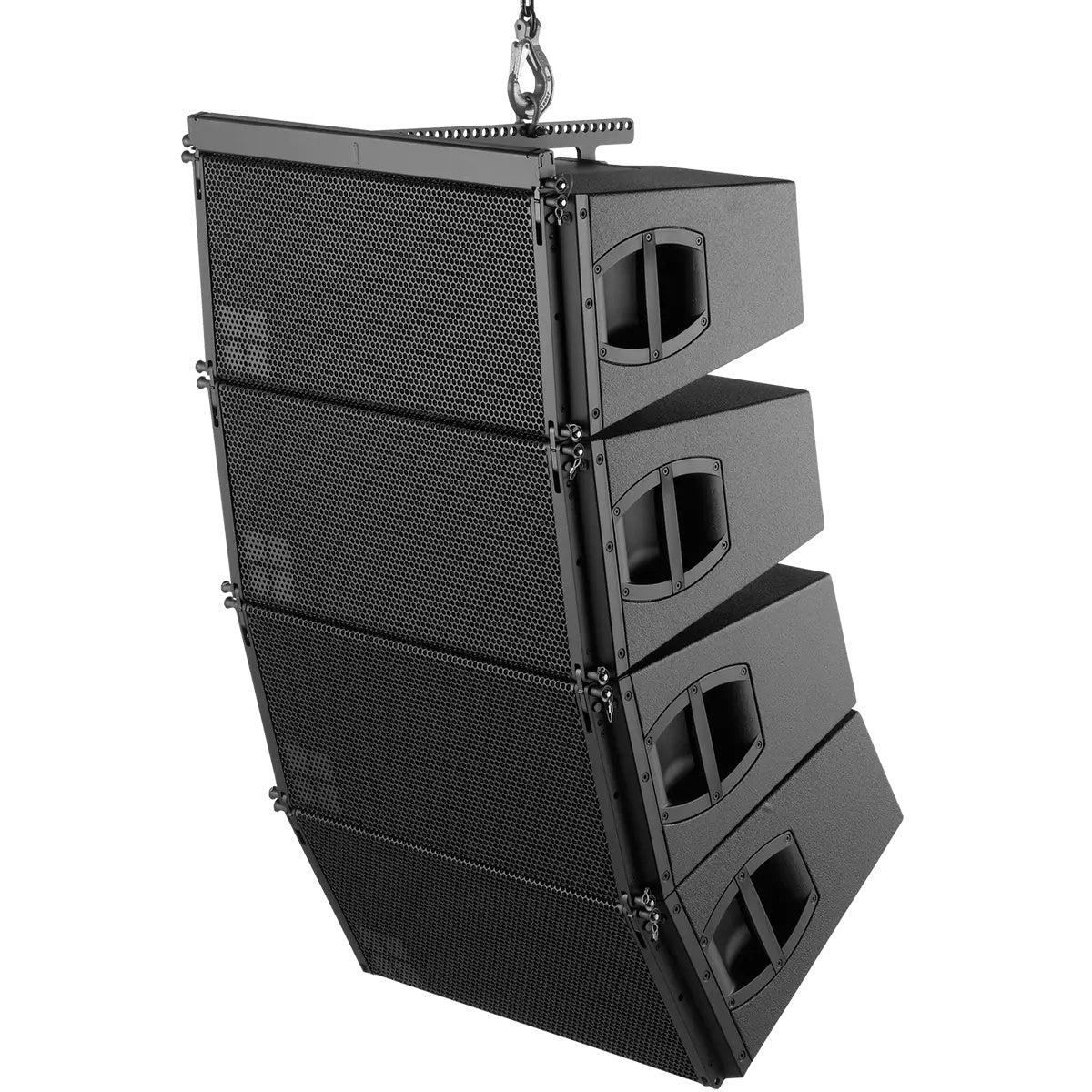

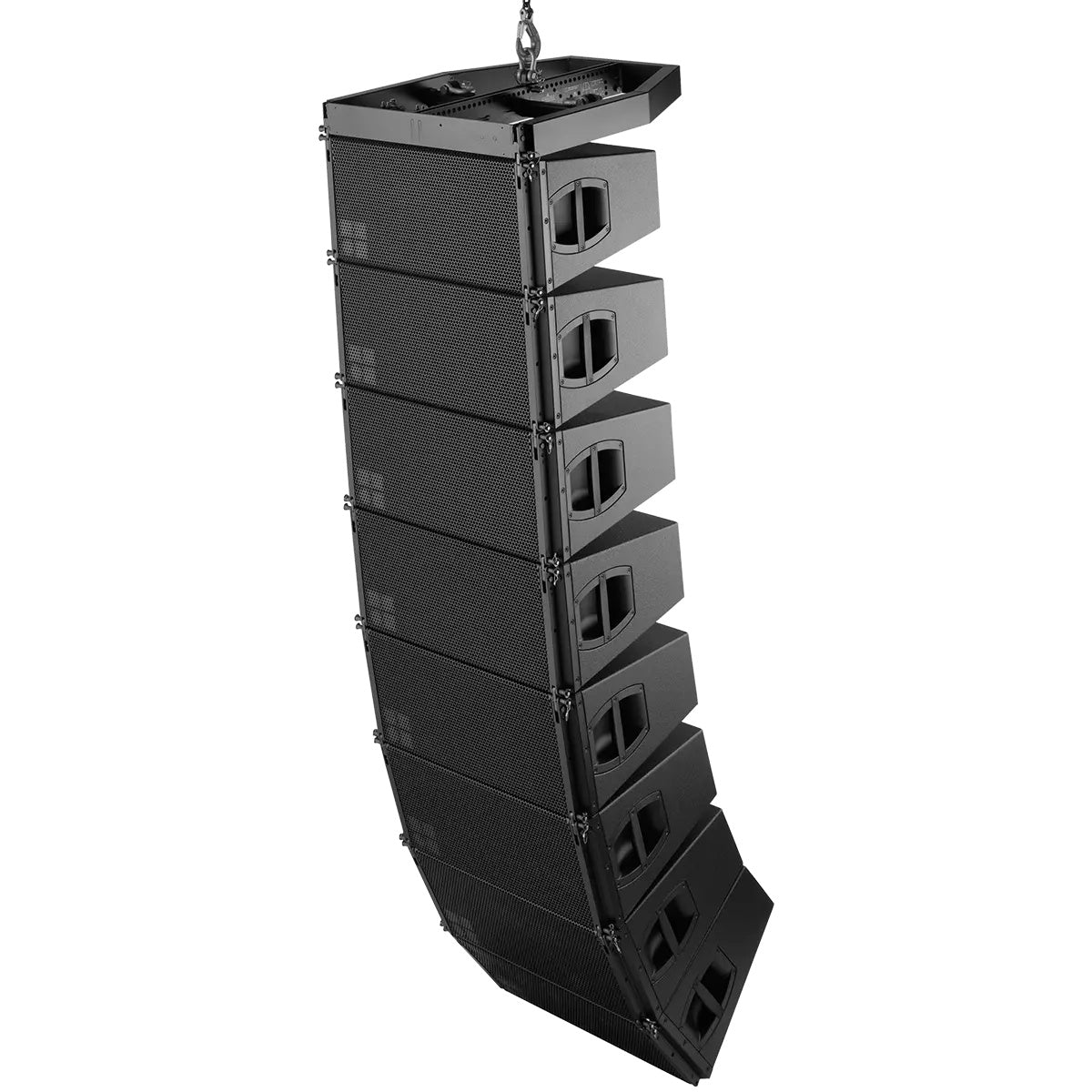

The V12 serves touring production companies and fixed installation integrators requiring precise vertical beam control in large-format reinforcement systems. Its symmetrical dipolar arrangement positions dual 10" neodymium LF drivers around a coaxial 8" midrange and dual 1.4" compression drivers, enabling exceptional horizontal directivity control nominally maintained to 250 Hz. This 3-way passive design supports flown vertical arrays up to twenty-four cabinets, used alone or combined with V8 and V-SUB elements for adaptive beam steering.

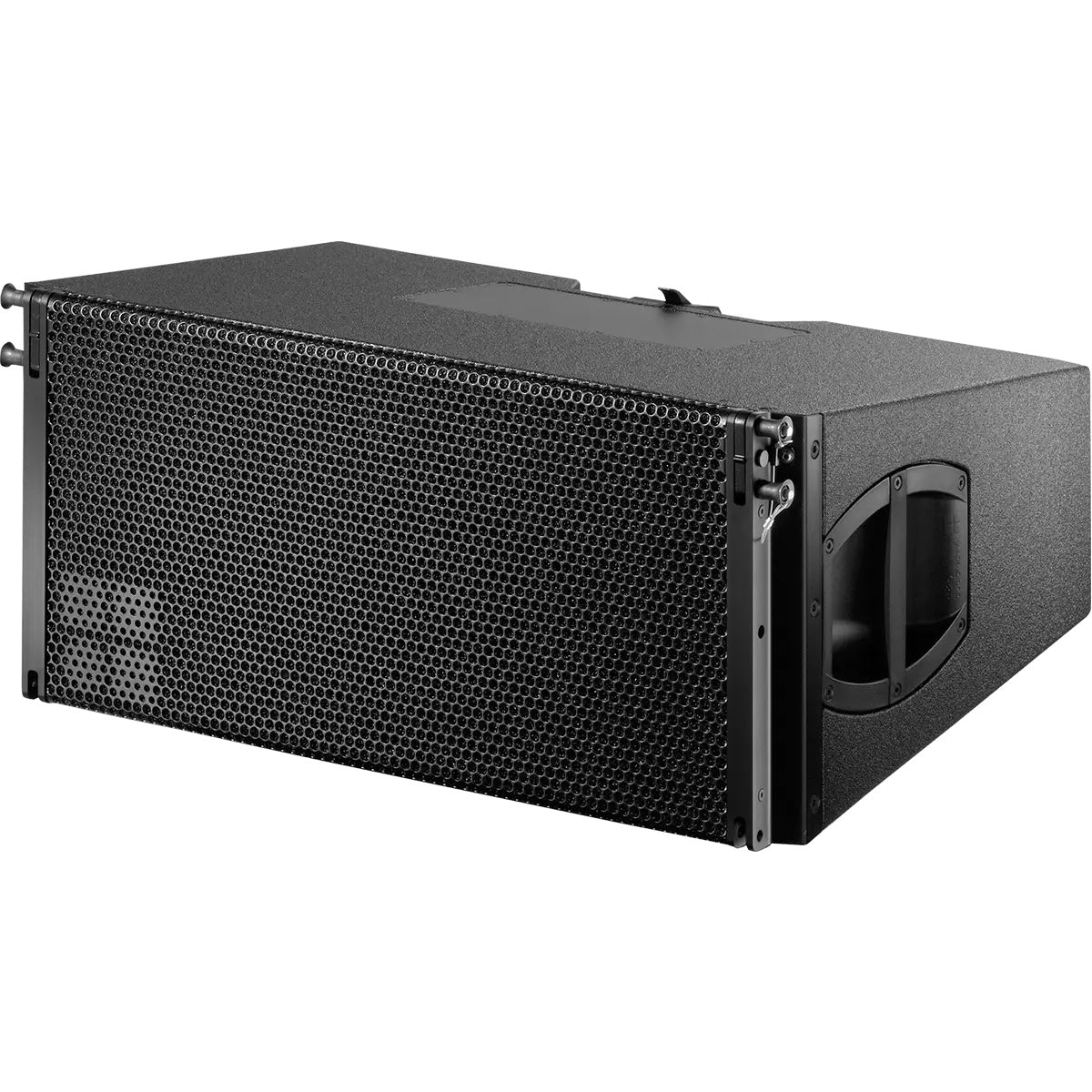

Marine plywood construction with Polyurea Cabinet Protection finish ensures durability in both transport and outdoor deployment. The rigid metal grill backed by acoustically transparent foam protects transducers without compromising output. Integrated side handles and rear recessed grips facilitate rigging and ground stacking scenarios. Splay angle adjustment in 1° increments from 0° to 14° enables precise wavefront shaping across the array.

Dual NLT4 female/male connections support parallel feeds through multiple cabinets when driven by D40, D80, D90, or 40D amplifier platforms. Optional NL4 connectivity accommodates legacy signal chains. The 8-ohm nominal impedance and 500W RMS power handling enable two cabinets per amplifier channel at full rated output.

Downloads

View full details

Specifications

Audio
Frequency Response (-5 dB Standard)
67 Hz - 18 kHz
Frequency Response (-5 dB CUT Mode)
100 Hz - 18 kHz
Maximum SPL (D40/D80/D90/40D)
142 dB
Nominal Impedance
8 Ω
Power Handling (RMS/Peak 10 ms)
500/2000 W
Nominal Dispersion Angle (Horizontal)
120°
Components
LF Drivers
2 x 10"
MF Driver
1 x 8"
HF Compression Drivers
2 x 1.4" exit
Crossover
Passive network
Connectivity
Input Connections
2 x NLT4 F/M
Optional Connections
2 x NL4
Cabinets per Amplifier Channel
2
Configuration
Type
3-way passive line array
Splay Angle Settings
0° - 14° (1° increment)
Dimensions
Height x Width x Depth
12.2" x 27.5" x 18" (310 x 700 x 460 mm)
Weight
Product Weight
75 lbs (34 kg)
