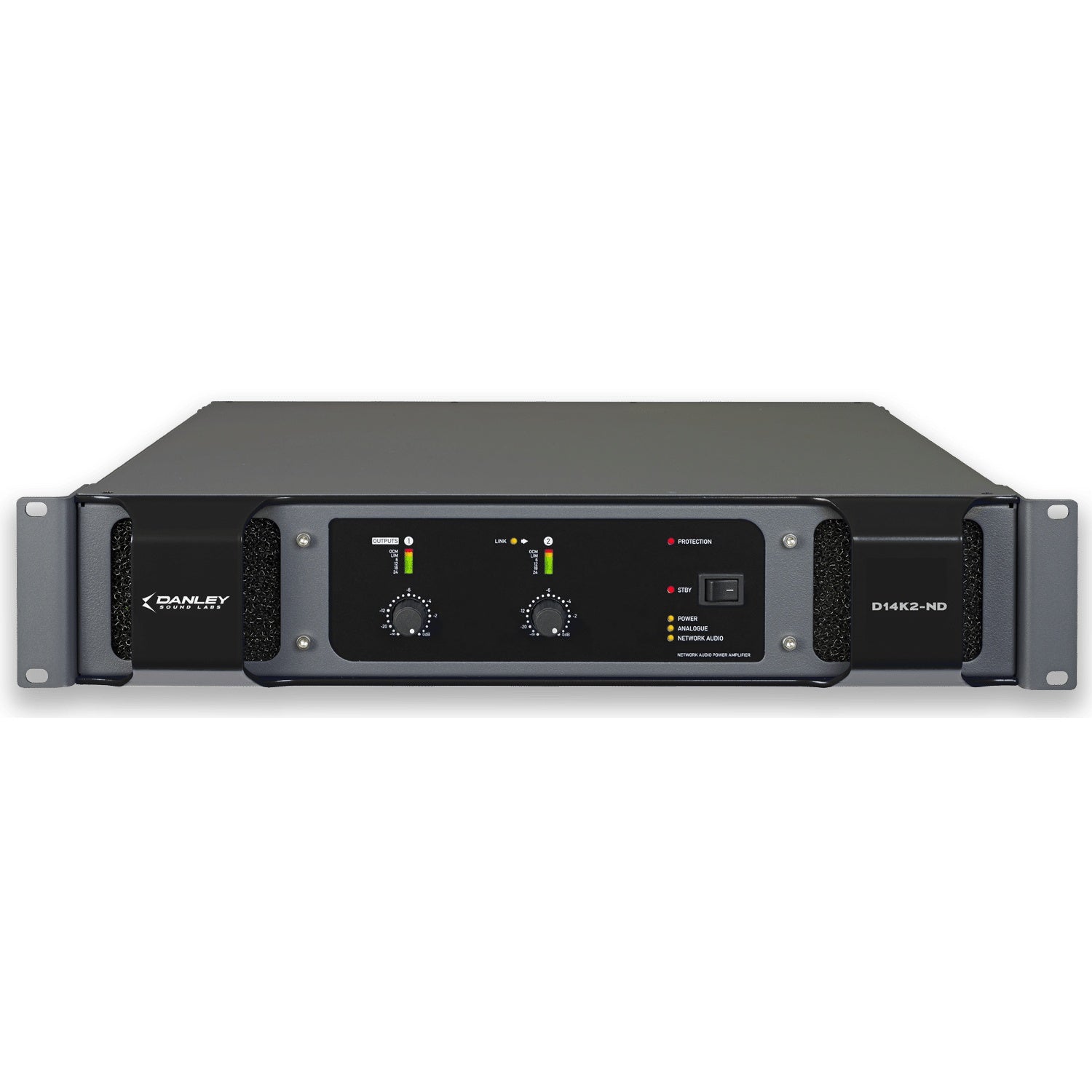

Danley D14K2-ND-220 DSP Amplifier with Built-In WiFi

Danley D14K2-ND-220 DSP Amplifier with Built-In WiFi

SoundPro Item: 203969 | Part Number: D14K2-ND-220

$6,783.00
$7,140.00 $6,783.00
Your Price Sold out
MSRP: $7,140.00 | MAP: $6,783.00

Usually ships in 5-7 business days

  • Built-in WAP supports direct WiFi configuration
  • Full matrix DSP enables flexible signal routing
  • TCP/IP control streamlines remote system setup
  • Lo-Z and Hi-Z support fits varied speaker loads
  • UMAC(TM) Class D output lowers distortion
  • Protection circuits guard against common faults
Log in or register for YOUR best price

The Danley DSA series is a collection of multi-purpose installation amplifiers. The DSA 125X4 is a four channel wifi enabled DSP amplifier. The amplifier has a built in Wireless Access Point (WAP) for simple connection and configuration via WiFi.

The DSA 125X4 features a full matrix digital signal processor (DSP) embedded and controlled via TCP/IP and an optimal hybrid of low and high Z performance.

View full details

Specifications

Amplifier
Channels
4 x Lo-Z / 2x Hi-Z
Output Circuitry
UMAC(TM) Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage
70Vp / 140 Vpp (unloaded) // Bridged 140Vp / 280 Vp (unloaded)
THD+N (typical)
< 0.05% (+0/-0.25dB (8 Ohm load, 3dB below rated power)
Frequency Response
20Hz – 20kHz (+0/-0.25dB (8 Ohm load, 3dB below rated power)
Protection Circuits
Short circuit-, DC-, Undervoltage-, Temperature- and Overload protection
Power
Output power @ 4 Ohms / 8 Ohms / 70V / 100V* All Channels Driven
125W Lo-Z / 250W Hi-Z
Output power @ 4 Ohms / 8 Ohms / 70V / 100V* Single Channel Driven
125W
Output power @ 16 Ohms All Channels Driven
125W
Power Consumption
150W
Power Ratings
1% THD @ 120Vac and 230Vac
Physical
Weight
6.2 lbs | 2.8 kg
Dimensions
1.75″ x 8.66″ x 11.65″ | 44.5 x 220 x 296 mm
Operating Temperature
0-40C
Accessories
Rack Mount Kit / Wall/Desktop Mount Kit, 1x IEC to NEMA 5-15
