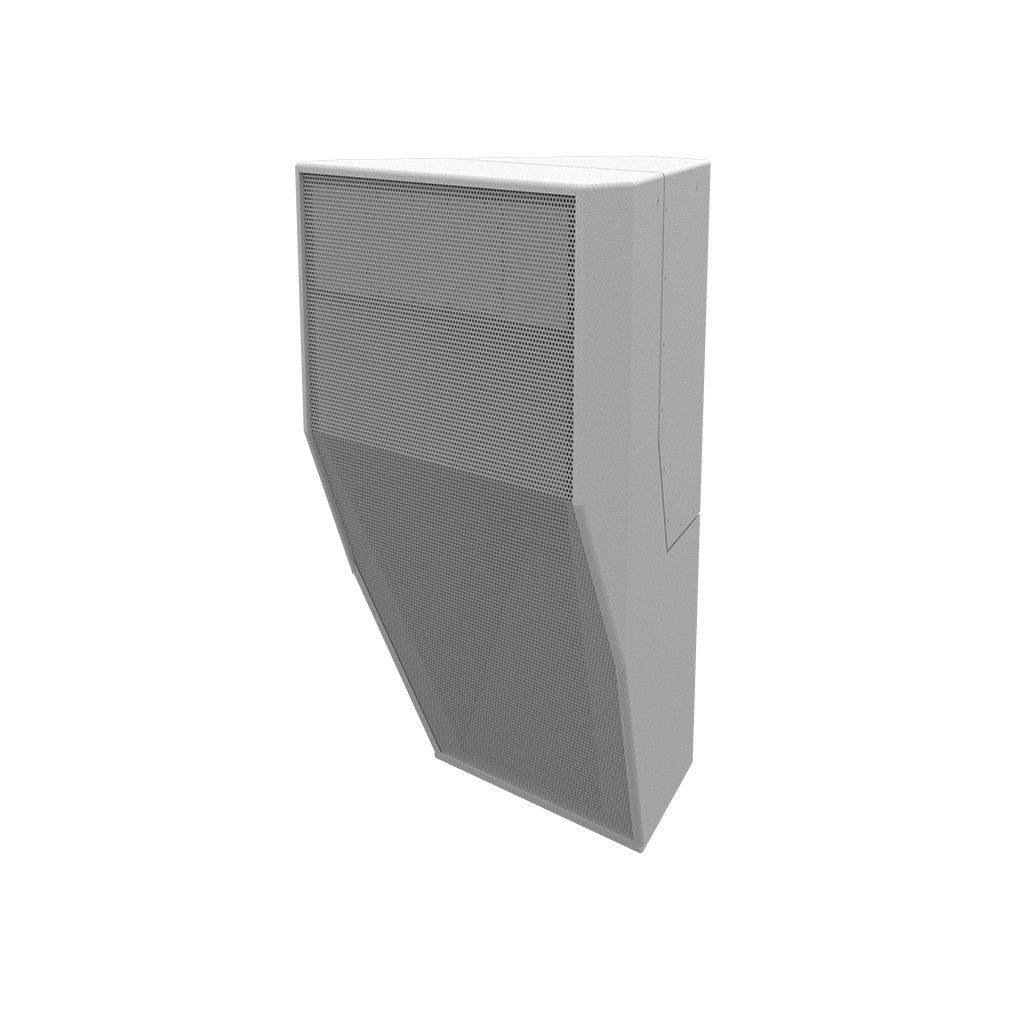

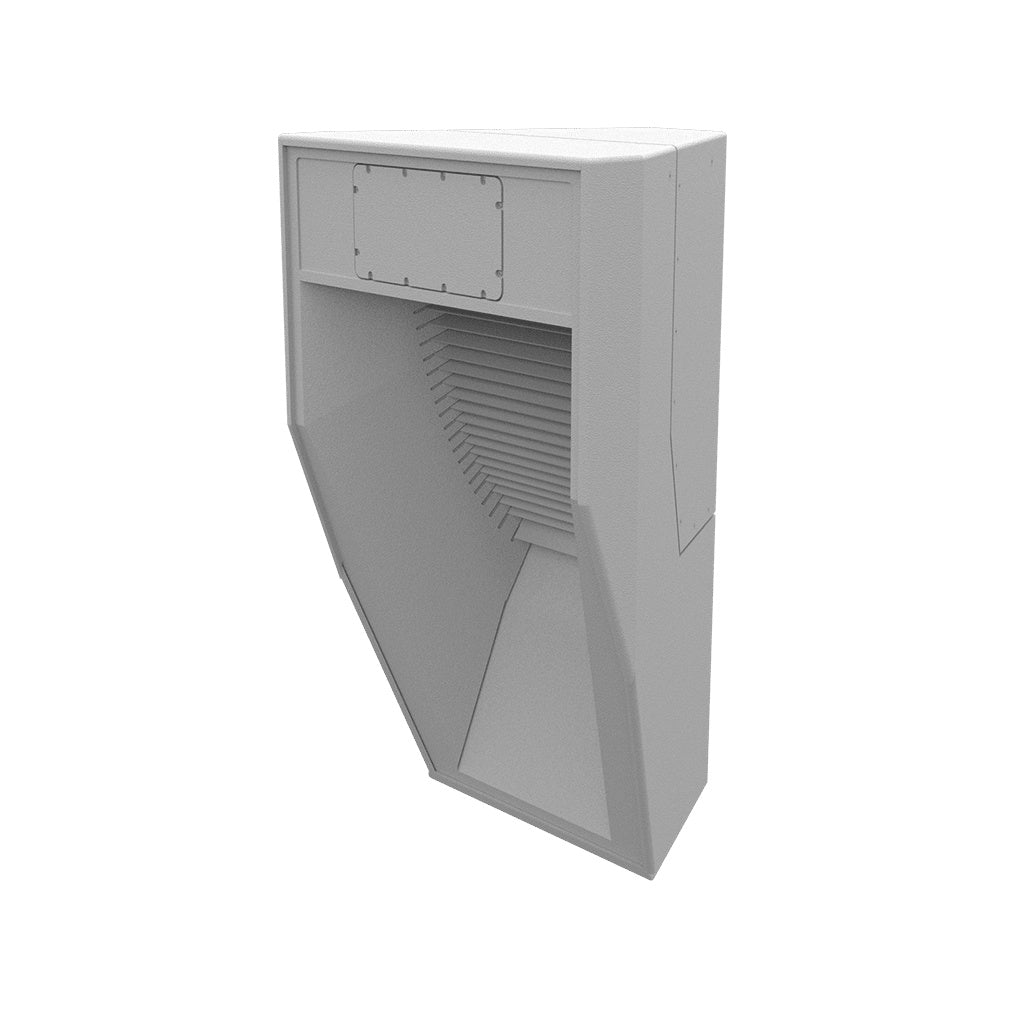

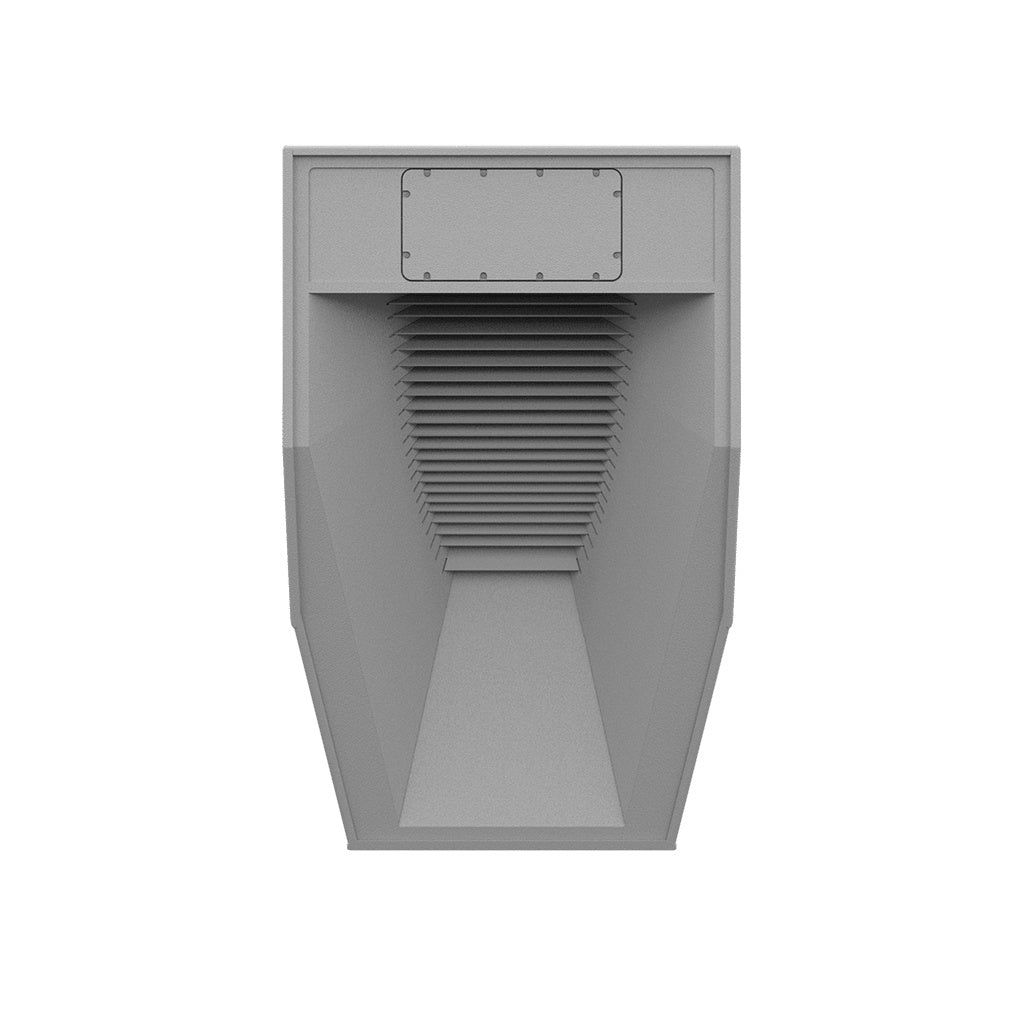

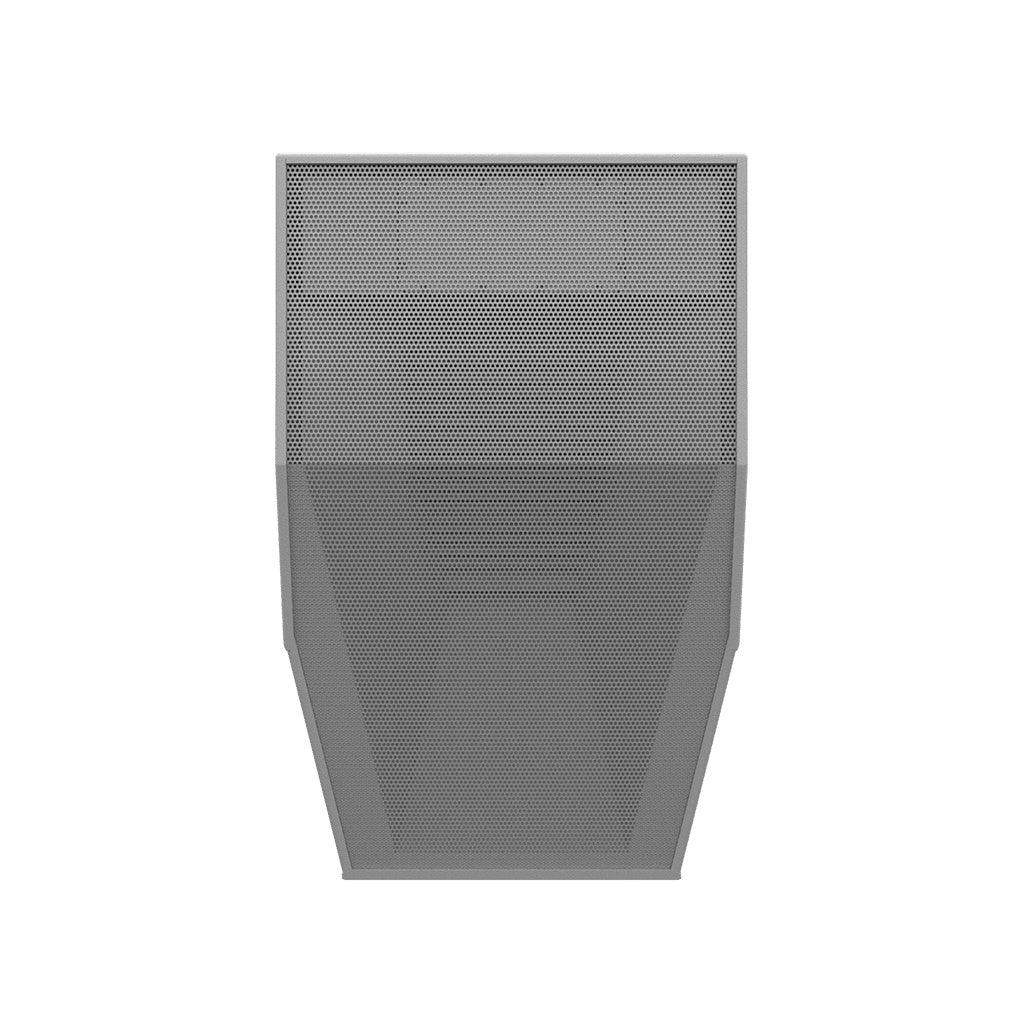

Danley GH60-I-C Genesis Horn Loudspeaker 60° X 45° | Install Version | Custom

Danley GH60-I-C Genesis Horn Loudspeaker 60° X 45° | Install Version | Custom

SoundPro Item: 134587 | Part Number: GH60-I-C

$14,661.35
$15,433.00 $14,661.35
Your Price Sold out
MSRP: $15,433.00 | MAP: $14,661.35

Usually ships in 5-7 business days

  • Synergy Horn design supports coherent projection
  • Paraline technology aids controlled pattern behavior
  • Shaded Amplitude Lens improves distant audience coverage
  • Point-source format simplifies targeted system design
  • High sensitivity supports efficient amplifier use
Log in or register for YOUR best price

The Danley GH60 is a Genesis Horn loudspeaker built for applications that need controlled directivity, high intelligibility, and substantial output from a single enclosure. Using Danley’s Synergy Horn™, Paraline™, and Shaded Amplitude Lens™ technologies, it is designed to provide even front-to-back coverage while maintaining point-source behavior. For integrators and system designers, that means a compelling option when consistency across the audience area matters as much as sheer level.

Its 60° horizontal by 45° vertical pattern suits venues where coverage control is critical, including performance spaces, houses of worship, and other installed sound environments. The operating range of 90 Hz to 16 kHz supports full-range vocal and program reinforcement when paired appropriately within a larger system design. With continuous output rated at 133 dB SPL and peak output at 139 dB SPL, the GH60 is positioned for demanding professional use where clarity and projection are essential.

The enclosure houses 18 drivers in a format intended to do more than conventional array behavior from one box. A rated 4-ohm impedance, 1400-watt continuous power handling, and substantial sensitivity make it relevant for high-performance deployments that require efficient acoustic output. At 48 x 30 x 23 inches and 199 lbs, the GH60 is a serious loudspeaker for professional applications where coverage precision and advanced horn loading are key selection factors.

View full details

Specifications

General
Brand
Danley
MPN
GH60
Product Type
Genesis Horn loudspeaker
Coverage & Performance
Coverage Pattern
60˚ horizontal 45˚ SA vertical
Operating Frequency Range
90 Hz – 16 kHz ( -10 dB points)
Continuous Output
133 dB SPL
Peak Output
139 dB SPL
Sensitivity
104 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
Magnitude Response
90-16kHz
Drivers
Driver Complement
Low 8 x 6.5″ Mid 8 x 4″ High 2 x 1.4″
Electrical
Rated Impedance
4 ohms
Power Rating
1400 Watts Cont. 5600 Watts Peak
Physical
Dimensions
48 x 30 x 23 inches
Weight
199 lbs
