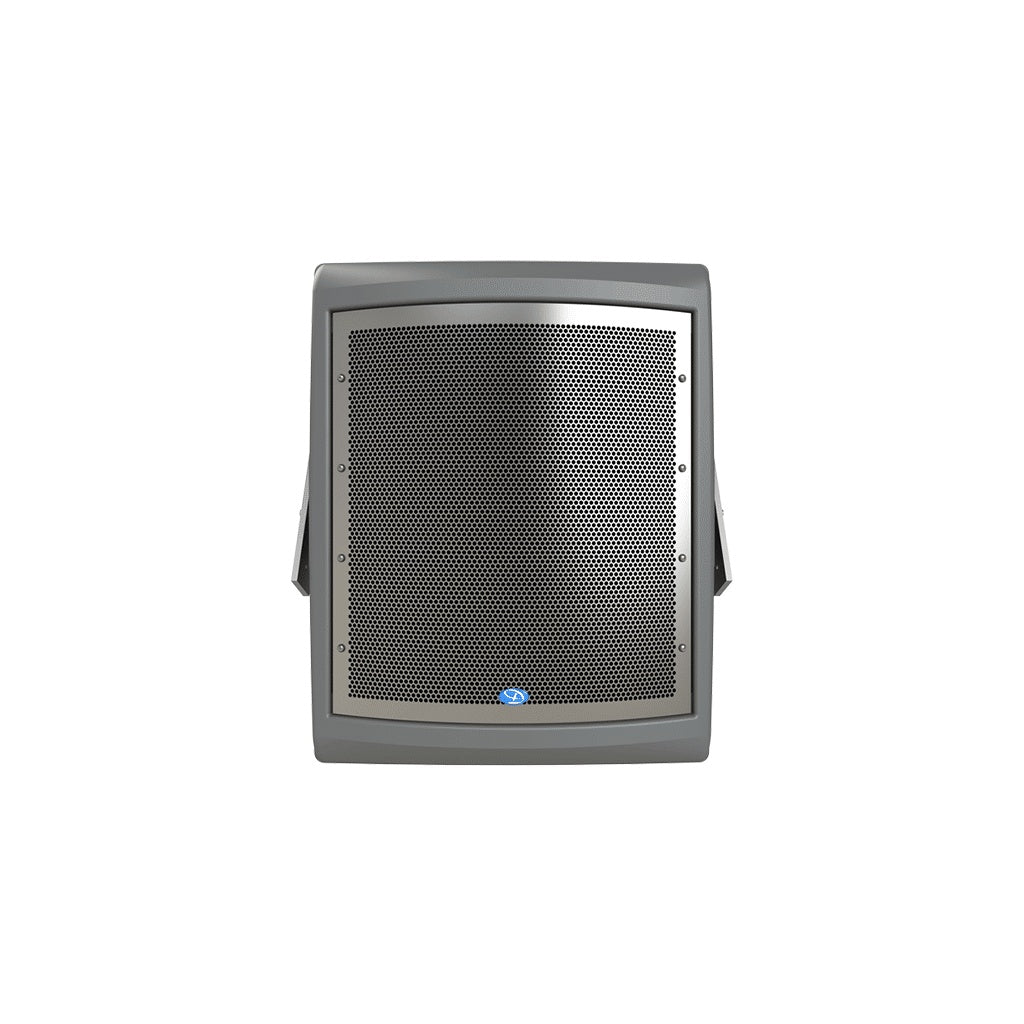

Danley OS62-G-NL Outdoor Synergy Horn Loudspeaker 60° X 20° | Grey

Danley OS62-G-NL Outdoor Synergy Horn Loudspeaker 60° X 20° | Grey

SoundPro Item: 204096 | Part Number: OS62-G-NL

Regular price $7,912.55
Regular price $8,329.00 Sale price $7,912.55
Your Price Sold out
MSRP: $8,329.00 | MAP: $7,912.55

Usually ships in 5-7 business days

  • Synergy Horn design aids phase-coherent projection
  • Paraline geometry supports long-distance coverage
  • Single-channel operation can simplify system layout
  • Sentinel HF protection helps guard against overload
  • IP55 build suits exposed installation environments
  • Included bracket and angle strap aid mounting

The Danley OS62 is a compact three-way loudspeaker built for applications that need high intelligibility, controlled directivity, and substantial output from a single enclosure. Its design combines Danley Synergy Horn architecture with Paraline technology so low, mid, and high frequencies integrate through a common horn path. For integrators and system designers, that means more consistent coverage behavior and better voice clarity over distance than many conventional point-source designs in similarly compact formats.

This model is well suited to stadium concourses, athletic venues, outdoor gathering spaces, houses of worship, transportation facilities, and other projects where long-throw performance and pattern control matter. The OS62 uses a thermo-molded poly-composite enclosure, a two-stage stainless grille, and a hydrophobic screen for IP55-rated protection in exposed environments. Danley also includes a heavy-duty aluminum mounting bracket and angle strap to support secure installation. A single-channel amplifier approach can simplify deployment, while users pairing it with Danley DNA or D Series processing can optimize system management and protection.

View full details

Specifications

General
Brand
Danley
MPN
OS62
Category
Loudspeaker
Coverage
Coverage Pattern
60° horizontal x 20° vertical
Performance
Operating Frequency Range
128Hz – 10kHz (-3dB) 105Hz-12kHz (-10dB)
Continuous Output
136 dB SPL
Peak Output
143.4 dB SPL
Sensitivity
107 dB (110dB 2kHz – 8kHz)
Rated Impedance
8 ohms
Power Rating
800 W continuous 3,200 W peak
Drivers
Driver Complement
Low: 4 x 8” Neodymium Mid/High: 1.4”/1.0” exit Coaxial ring-radiator compression driver
Physical
Dimensions
32.25 x 26 x 14.5 inches
Weight
95 lbs
