Specifications
General
Brand
Danley
MPN
SH110
Product Type
Passive loudspeaker
Category

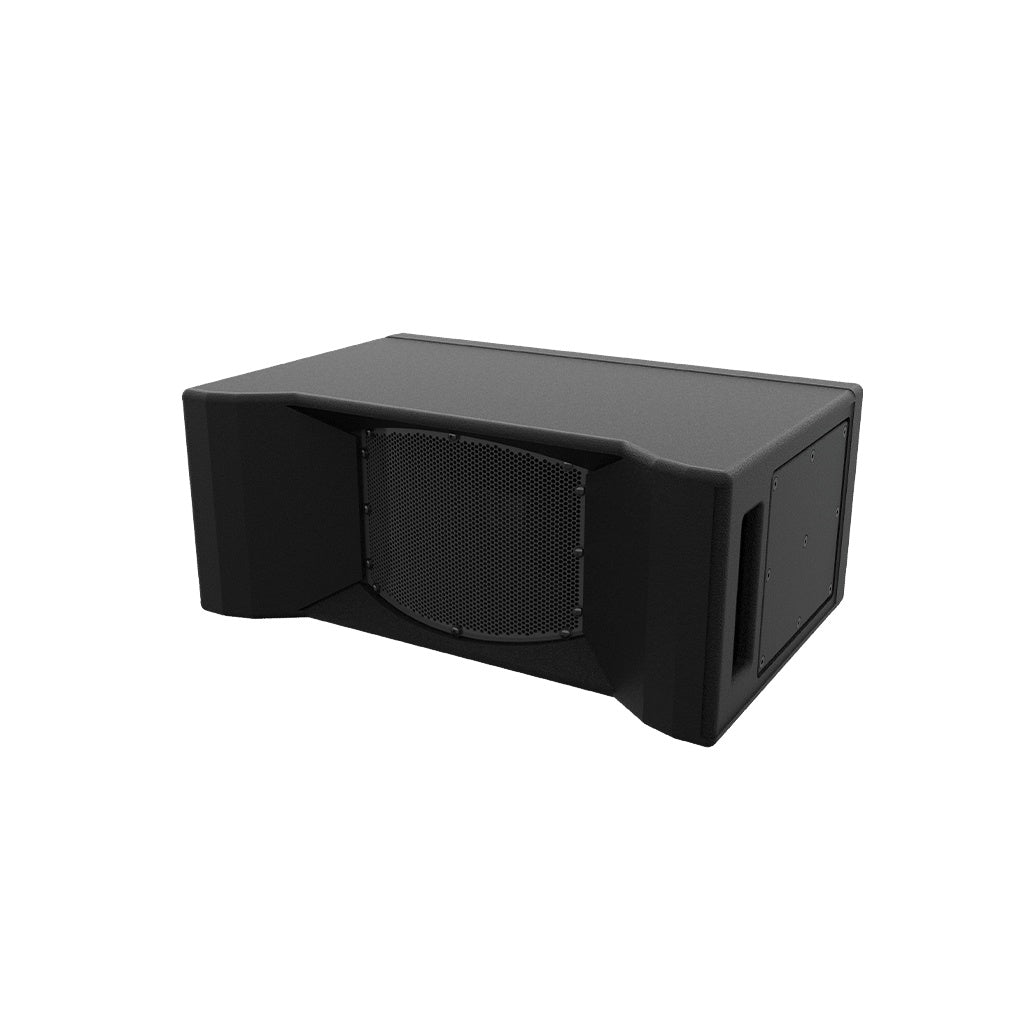

Front fill loudspeaker
Operating Mode
two-way single channel amplified
Acoustic Performance
Coverage Pattern
110˚ horizontal x 60˚ vertical
Operating Frequency Range
360 Hz – 15 kHz, -3dB; 90 Hz – 20 kHz, -10dB
Sensitivity
104 dB (2.83V @ 1 meter)
Maximum SPL
128 dB continuous | 134 dB peak
Transducers
Low Frequency Drivers
2 x 8″
High Frequency Driver
1 x 1.4″ exit high frequency
Power
Power Handling
500 watts continuous | 2000 watts peak
Impedance
4 ohm
Recommended Power Amplifier
1000 Watts
Connections
Connections (SH110 install / touring)
(2) Neutrik NL 4 Speakon wired in parallel Pin 1 +/- | Full Range Pin 2 +/- | Pass Through
Connections (SH110 – install / EW)
1 x 2 conductor lead-in wire
Physical
Mounting / Suspension Points
(2) M10 yoke points (SH110 install / EW) M10 rigging points
Dimensions / Weight
24 in. x 10 in. x 15.5 in. | 611 x 254 x 194 mm; 42 lbs | 19 kg
Finish
black polyurea coated enclosure with matte black grille / white polyurea coated enclosure with matte white grille / gray UV resistant painted enclosure with matte gray grille
Enclosure Material
18mm Baltic Birch, polyurea coated
Options & Accessories
Options
SH110 I-EW | Extreme Weathered Version; SH110-I | Install Version; SH110-T | Touring Version
Accessories
BRKT-95 – U-Bracket for SH110-4/16/SH95
