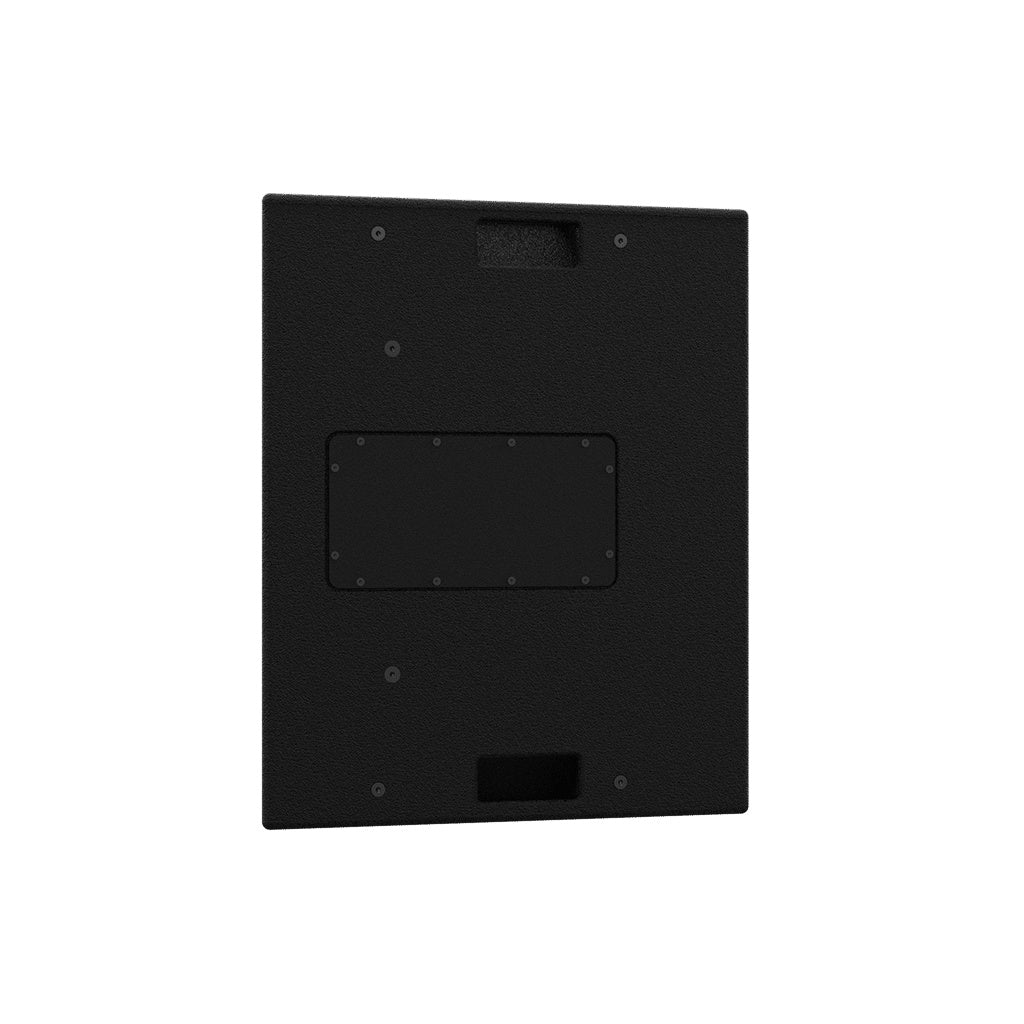

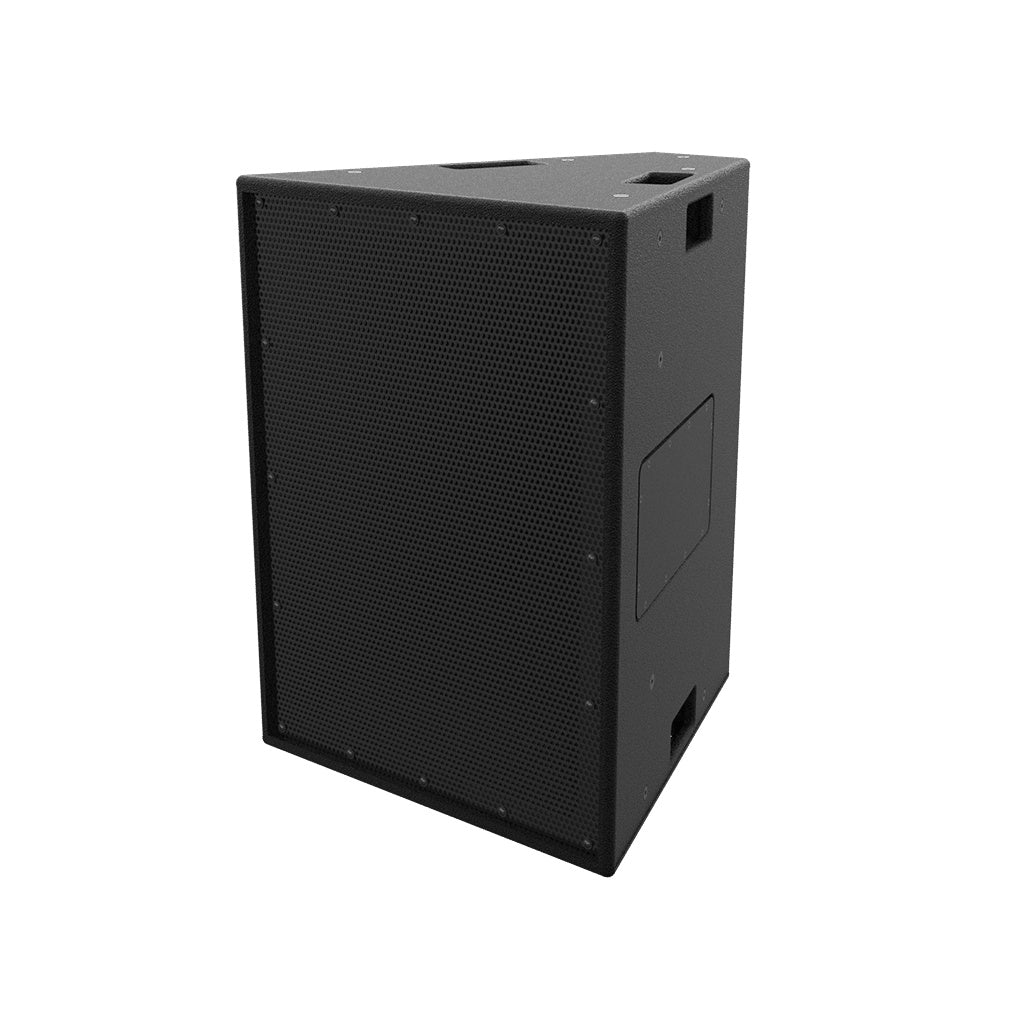

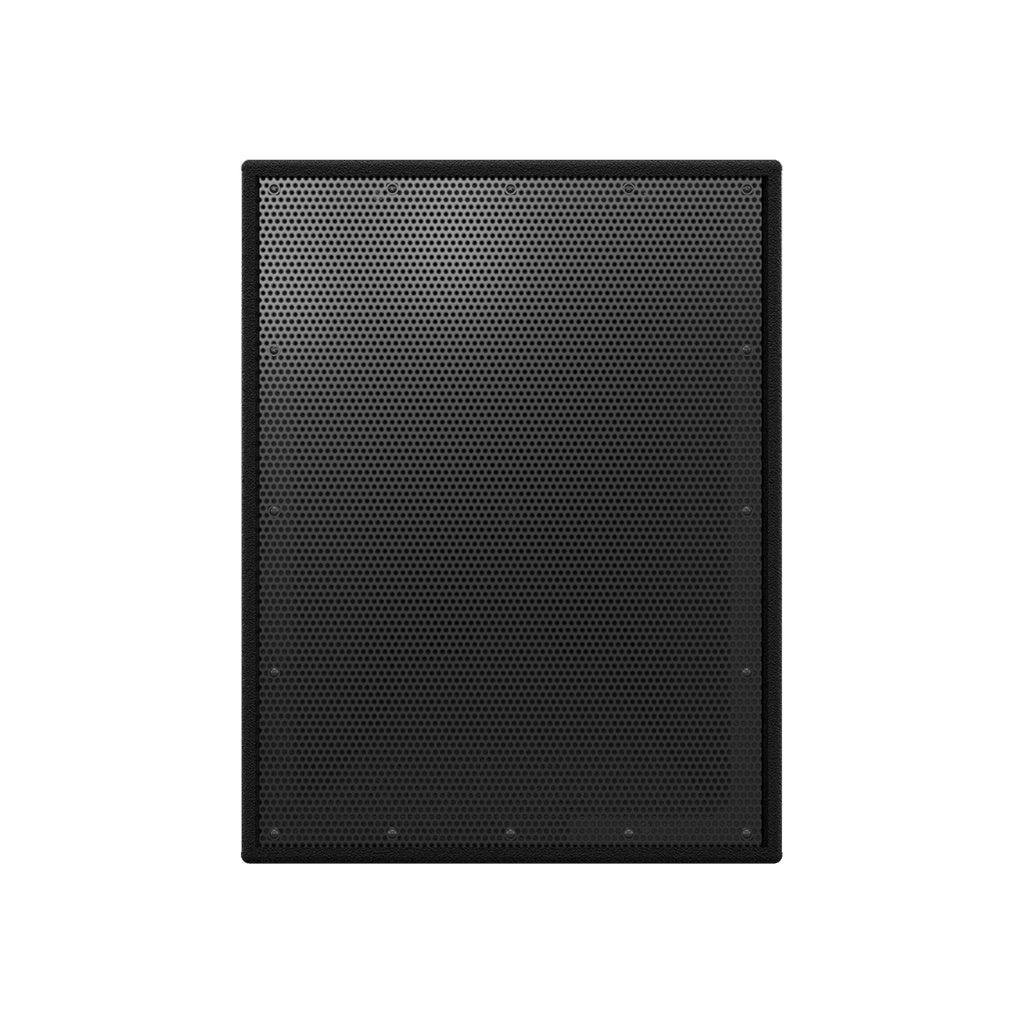

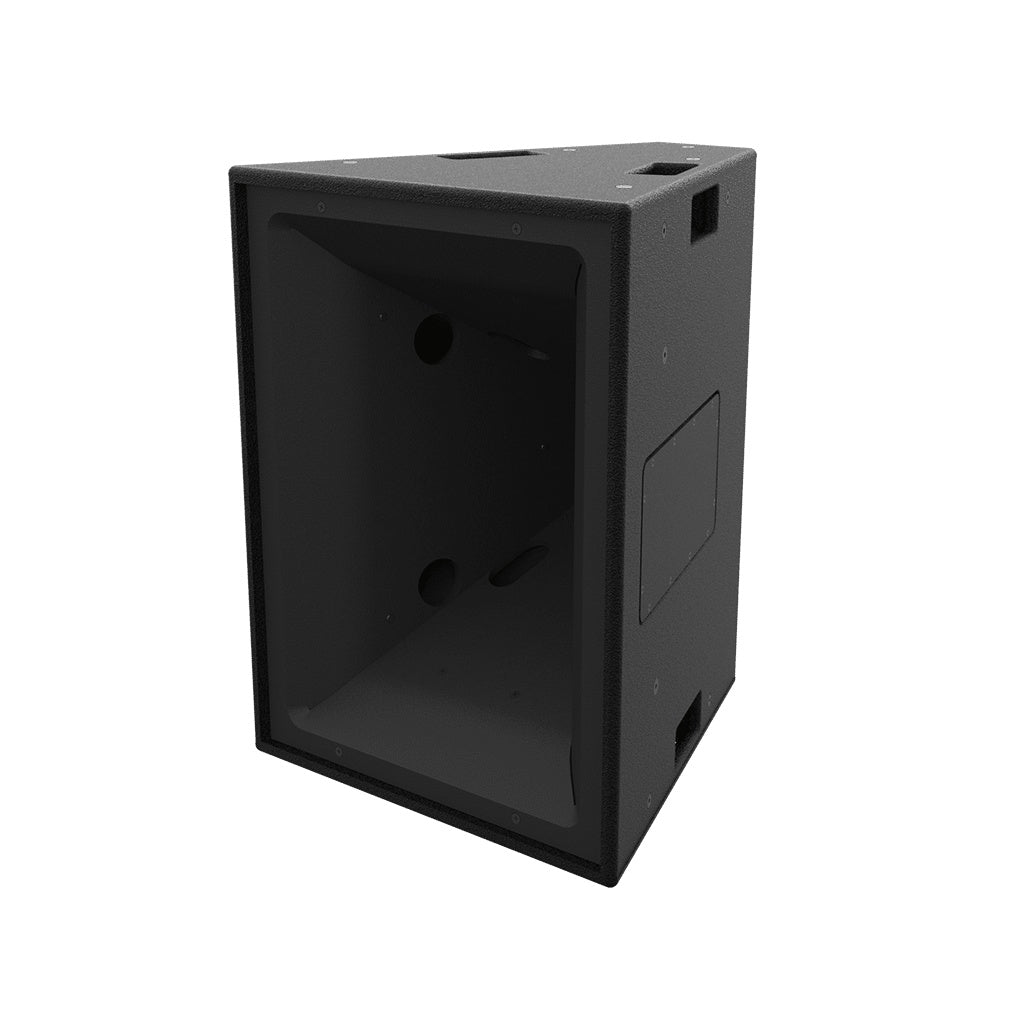

Danley SH46-T-EDM Synergy Horn Loudspeaker 40° X 60° | Touring Version | Black

Danley SH46-T-EDM Synergy Horn Loudspeaker 40° X 60° | Touring Version | Black

SoundPro Item: 204164 | Part Number: SH46-T-EDM

Regular price $9,664.35
Regular price $10,173.00 Sale price $9,664.35
Your Price Sold out
MSRP: $10,173.00 | MAP: $9,664.35

Usually ships in 5-7 business days

  • Small footprint for space-conscious system design
  • Modular array-able for scalable coverage plans
  • High sensitivity supports efficient system output
  • Controlled dispersion helps target the audience
  • Continuous and peak power support demanding use
  • Install or touring deployment flexibility

The Danley SH46 is a Synergy Horn loudspeaker built for professional audio systems that need strong output, precise directivity, and a compact physical footprint. Its 40° horizontal by 60° vertical pattern makes it a practical choice for spaces where coverage discipline matters, including speech-heavy rooms, performance venues, and systems that need predictable results from box to box. With modular array capability, the SH46 also gives designers and production teams a path to scale coverage while maintaining the core advantages of the Synergy Horn approach.

This model combines high sensitivity with substantial power handling, making it well suited for applications that need clarity and headroom from a relatively small enclosure. The driver complement supports full-range performance through the vocal band and into high frequencies, while the published response and output figures position it for demanding foreground reinforcement roles. Danley notes that the SH46 can be used in permanent installations, and a touring version is available with handles for easier transport, giving buyers flexibility based on deployment needs.

View full details

Specifications

General
Brand
Danley
MPN
SH46
Product Type
Loudspeaker
Performance
Coverage Pattern
40˚ horizontal 60˚ vertical
Operating Frequency Range
71 Hz – 14.5 kHz +/- 3dB; 58 Hz – 16 kHz -10dB
Continuous Output
135 dBSPL
Peak Output
141 dB SPL
Sensitivity
106 dB SPL (2.83 Volts into rated Z, at 1 meter)
Magnitude Response
58 Hz – 16 kHz
Rated Impedance
4 Ohms
Power Rating
1400 Watts Cont. 5600 Watts Peak
Drivers
Driver Complement
Low 2 x 12″ Mid 4 x 4″ High 1 x 1.4″
Physical
Dimensions
29 x 22.3 x 22.7 inches
Weight
118 lbs
