Danley SH69HT-I-W Full-Range Loudspeaker Compact Design | Install Version | White

Danley SH69HT-I-W Full-Range Loudspeaker Compact Design | Install Version | White

SoundPro Item: 119708 | Part Number: SH69HT-I-W

$7,892.60
$8,308.00 $7,892.60
Your Price Sold out
MSRP: $8,308.00 | MAP: $7,892.60

Usually ships in 5-7 business days

  • Compact full-range format for flexible placement
  • 60° x 90° pattern aids coverage control
  • Dual 12" LF section supports strong low-end output
  • Six 4" mids improve vocal and program clarity
  • High sensitivity helps efficient system design
Log in or register for YOUR best price

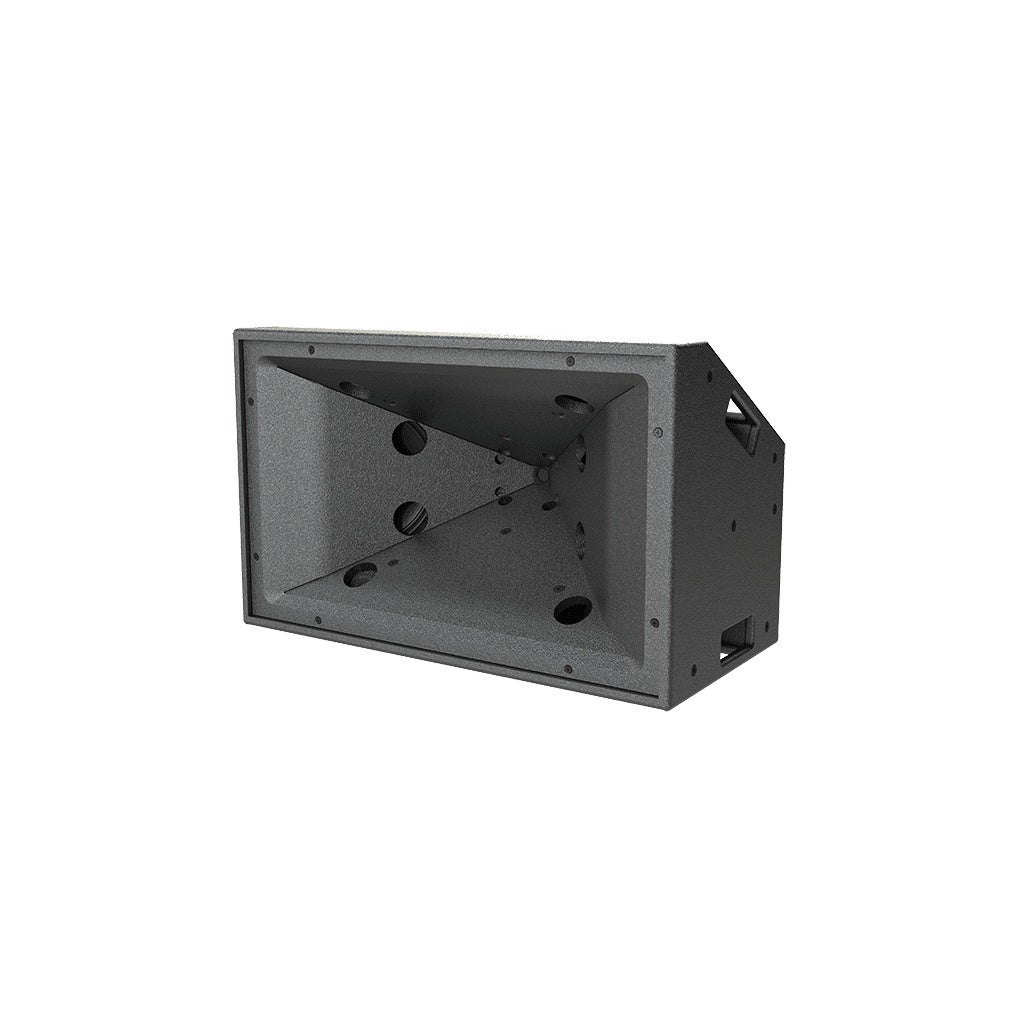

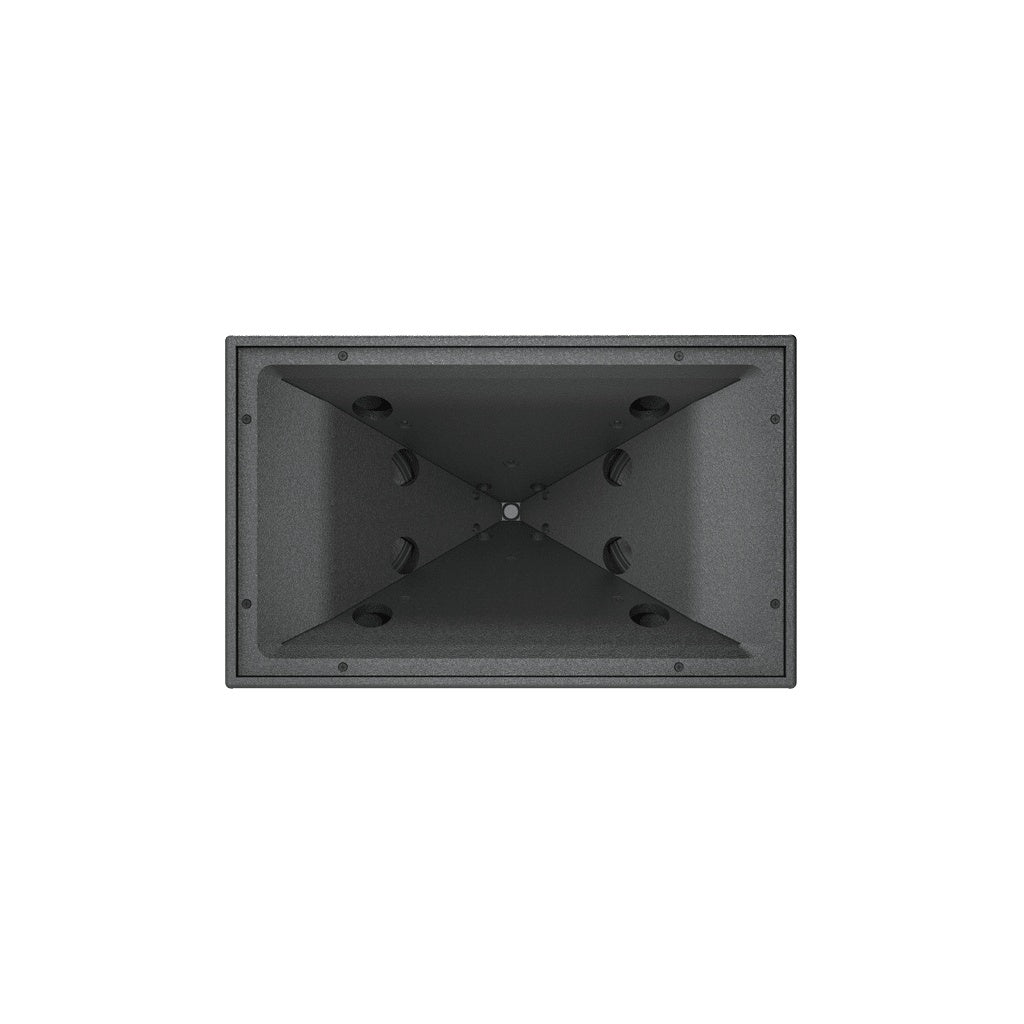

The Danley SH69HT is a compact full-range loudspeaker built for professional audio systems that need controlled coverage and strong output from a single enclosure. Its design combines two 12" woofers, six 4" midrange drivers, and a 1" high-frequency driver in one cabinet, giving system designers and production teams a practical option when space, weight, and performance all matter. With a 60° x 90° coverage pattern, it is suited to applications that require focused dispersion across audience areas without moving to a larger box format.

For installed audio, the SH69HT fits venues that need speech intelligibility and musical impact from a compact footprint. For portable and production use, it offers a full-range approach that can simplify deployment where fewer boxes are preferred. The published operating range of 55 Hz to 18 kHz (+/- 3 dB), sensitivity of 99 dB SPL, and continuous output of 126 dB SPL support use in demanding environments. Its 4-ohm rated impedance and 1000-watt continuous power rating should be considered during amplifier selection and system planning.

View full details

Specifications

General
Brand
Danley
MPN
SH69HT
Category
Full-range loudspeaker
Performance
Coverage Pattern
60˚ 90˚
Operating Frequency Range
55 Hz – 18 kHz +/- 3 dB; 33 Hz- 24 kHz – 10 dB
Continuous Output
126 dB SPL
Peak Output
132 dB SPL
Sensitivity
99 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in whole space
Magnitude Response
55 Hz- 18 kHz
Drivers
Driver Complement
Low 2 x 12″ Mid 6 x 4″ High 1 x 1″
Physical
Dimensions
34 x 21 x 17 inches
Weight
116 lbs
Electrical
Rated Impedance
4 Ohms
Power Rating
1000 Watts Continuous 4000 Watts Peak
