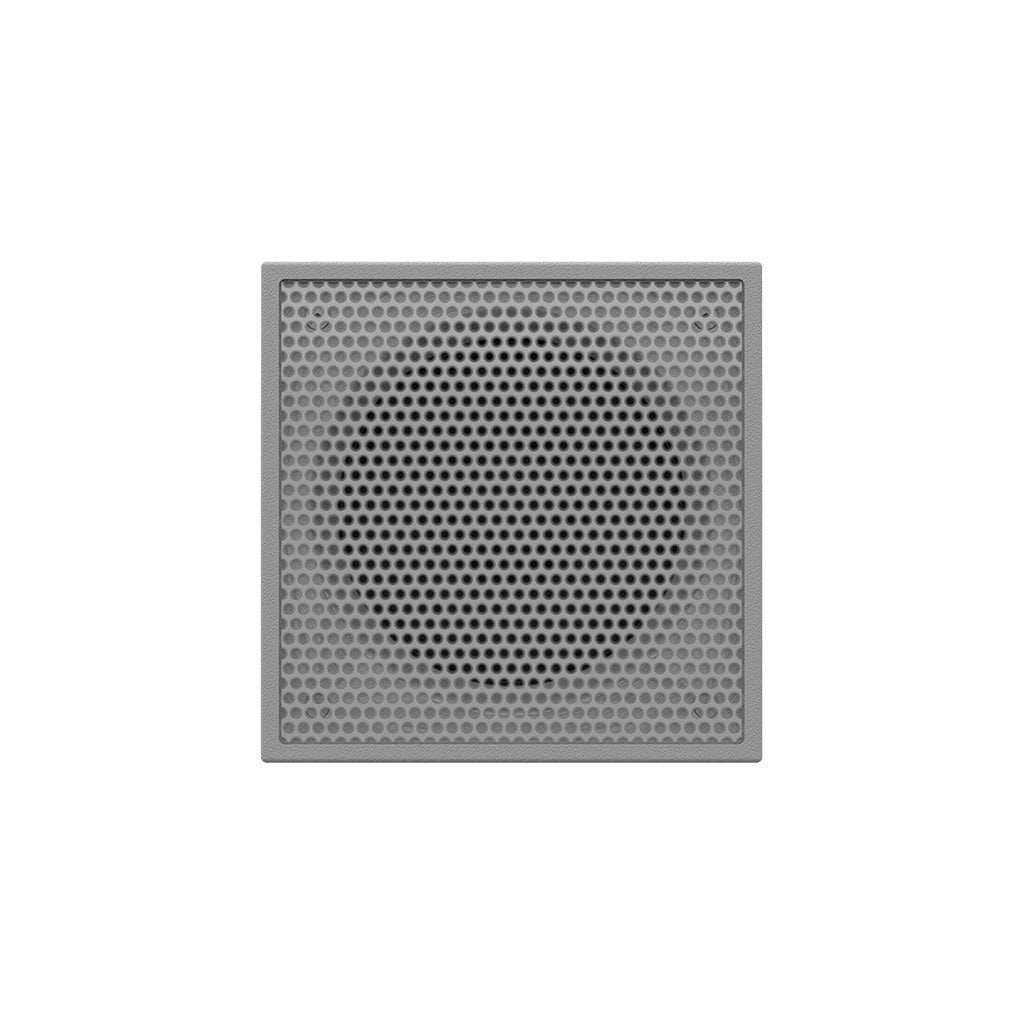

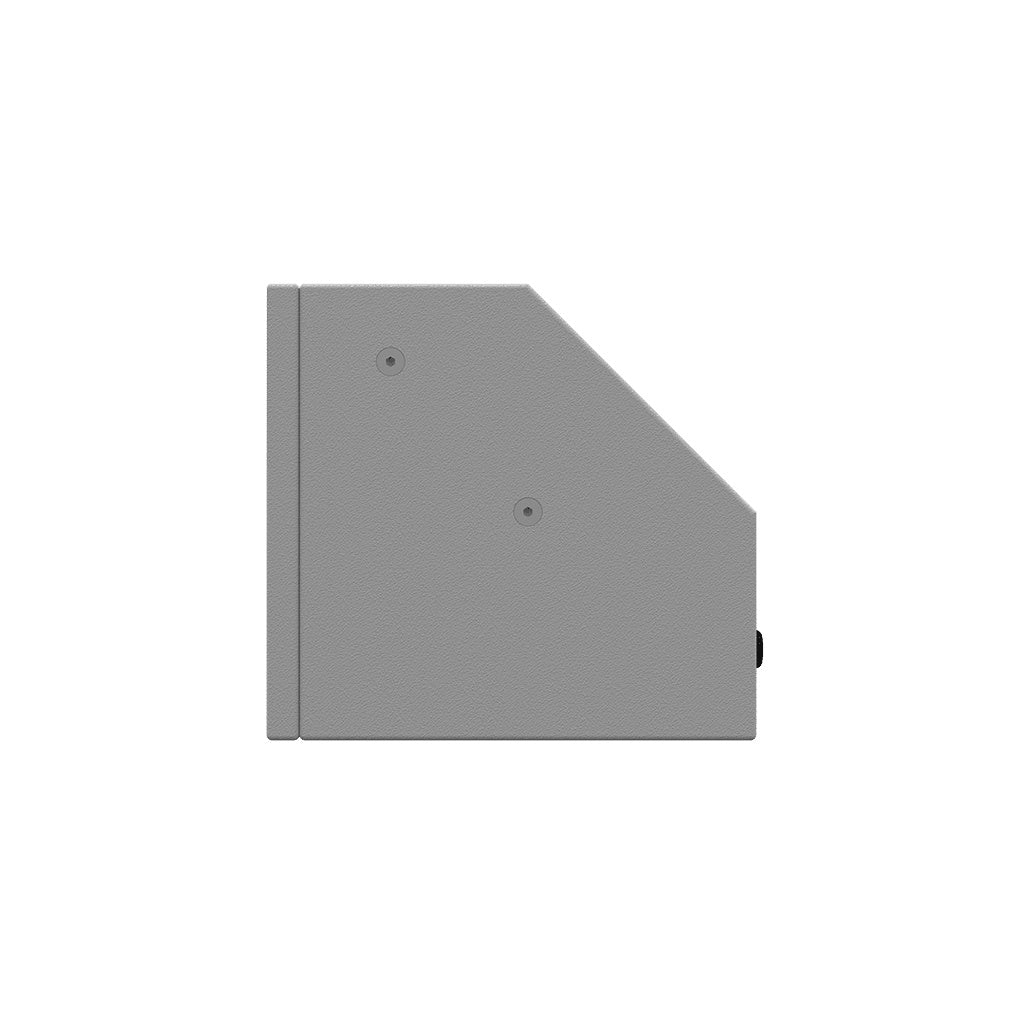

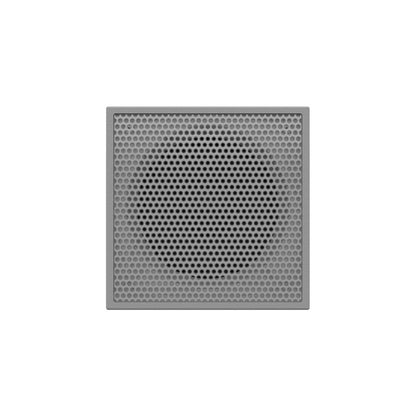

Danley SHMini-C Compact Coaxial Loudspeaker 100° Conical | Custom

Danley SHMini-C Compact Coaxial Loudspeaker 100° Conical | Custom

SoundPro Item: 134607 | Part Number: SHMini-C

Regular price $1,975.05
Regular price $2,079.00 Sale price $1,975.05
Your Price Sold out
MSRP: $2,079.00 | MAP: $1,975.05

Usually ships in 5-7 business days

  • 100° conical pattern for even room coverage
  • Compact cabinet fits tight AV positions
  • Coaxial design supports coherent playback
  • Useful for installs or low-profile monitors
  • 8 Ohm load simplifies amp matching

The Danley SHMini is a compact full-range loudspeaker built for projects where footprint matters but intelligibility and musical detail still need to hold up. Its small enclosure and 100° conical pattern make it a practical fit for distributed audio zones, under-balcony coverage, front-fill positions, and other installations where consistent dispersion is more important than sheer cabinet size. It can also serve in production environments that need a low-profile speaker with controlled, even coverage.

For monitor applications, the SHMini offers a compact option when stage real estate is limited. The 8" coaxial design helps keep the acoustic source aligned, supporting clear vocal and program reproduction in close listening positions. With published output, sensitivity, and impedance data available, it is also straightforward for system designers and integrators to match with appropriate amplification and deployment plans.

View full details

Specifications

General
Brand
Danley
MPN
SHMini
Category
Loudspeaker
Performance
Coverage Pattern
100° conical
Operating Frequency Range
125 Hz – 18 kHz +/- 3dB; 88 Hz – 20 kHz -10dB
Continuous Output
111 dB SPL
Peak Output
117 dB SPL
Sensitivity
88 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
Magnitude Response
125 Hz – 18 kHz
Rated Impedance
8 Ohms
Power Rating
200 Watts Cont.; 800 Watts Peak
Configuration
Driver Complement
1 x 8″ coaxial
Physical
Dimensions
10 x 10 x 10.5 inches
Weight
22.5 lbs
