Danley SM100F-I-G Coaxial Loudspeaker With 110° Coverage | Install Version | Grey

Danley SM100F-I-G Coaxial Loudspeaker With 110° Coverage | Install Version | Grey

SoundPro Item: 204267 | Part Number: SM100F-I-G

$5,825.40
$6,132.00 $5,825.40
Your Price Sold out
MSRP: $6,132.00 | MAP: $5,825.40

Usually ships in 5-7 business days

  • 110° conical pattern for wide audience coverage
  • 15"/8" coaxial design supports coherent response
  • 128 dB continuous output for demanding rooms
  • Compact enclosure suits tight placement areas
  • 8-ohm load integrates into many system designs
Log in or register for YOUR best price

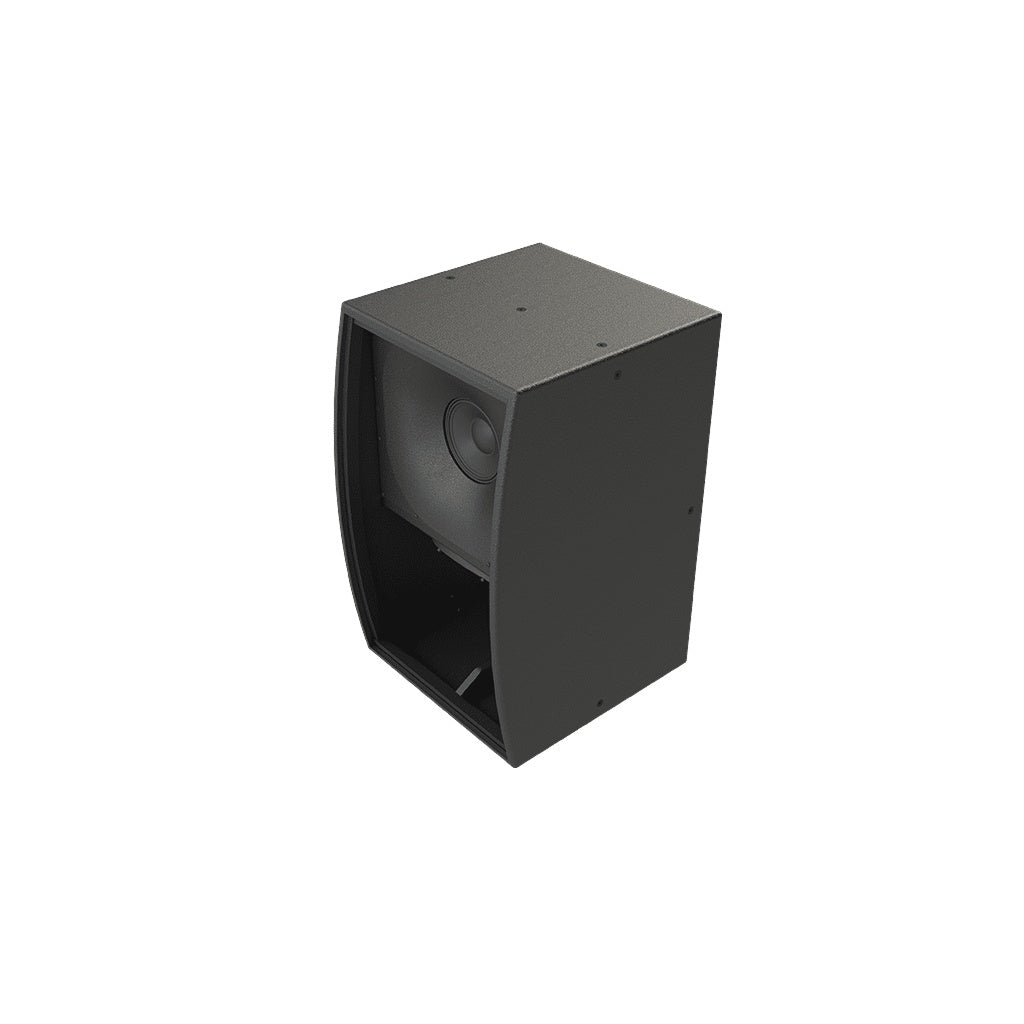

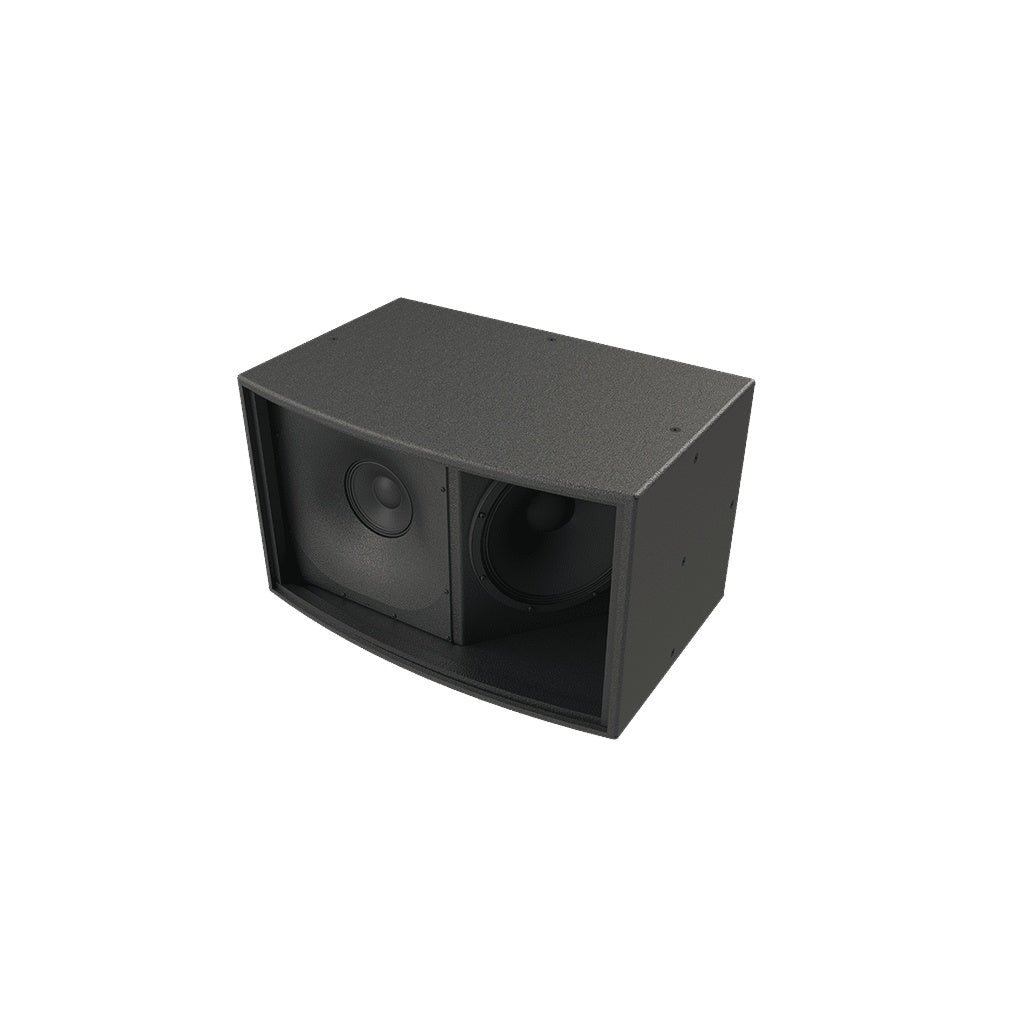

The Danley SM100F is a compact high-output loudspeaker built for applications that need broad coverage from a single enclosure. Its 110° conical pattern makes it a practical choice for venues that want consistent audience coverage without relying on multiple boxes per side. With a 15-inch low-frequency driver and 8-inch high-frequency coaxial arrangement, it is suited to speech and music reinforcement where space, placement flexibility, and strong broadband performance matter.

This model fits well in small to mid-size rooms, side-fill positions, and portable systems that need substantial output from a relatively compact cabinet. Danley positions the SM100F as a workhorse solution capable of covering a substantial seating area with one enclosure per side, with or without subwoofers depending on system goals. Engineers evaluating point-source options for live sound or installed audio will appreciate its combination of wide pattern control, useful low-frequency extension, and solid SPL capability.

View full details

Specifications

General
Brand
Danley
MPN
SM100F
Product Type
Loudspeaker
Performance
Coverage Pattern
110° conical
Operating Frequency Range
47 Hz – 18 kHz +/- 3 dB; 42 Hz – 19 kHz -10 dB
Continuous Output
128 dB SPL
Peak Output
134 dB SPL
Sensitivity
98 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
Rated Impedance
8 ohms
Power Rating
800 Watts Cont. 3200 Watts Peak
Drivers
Driver Complement
Low 1 x 15” High 1 x 8” coaxial
Physical
Dimensions
33.5 x 20.5 x 19.0 inches
Weight
122 lbs
