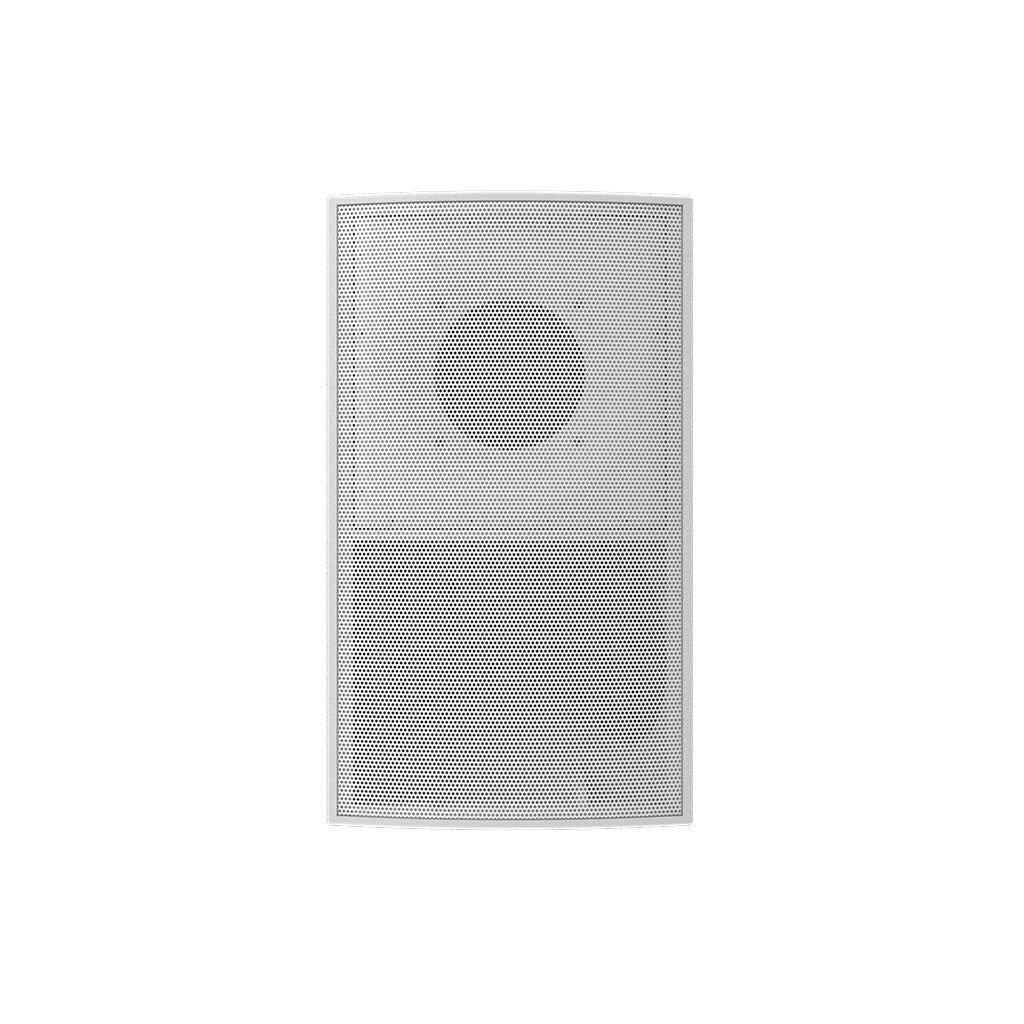

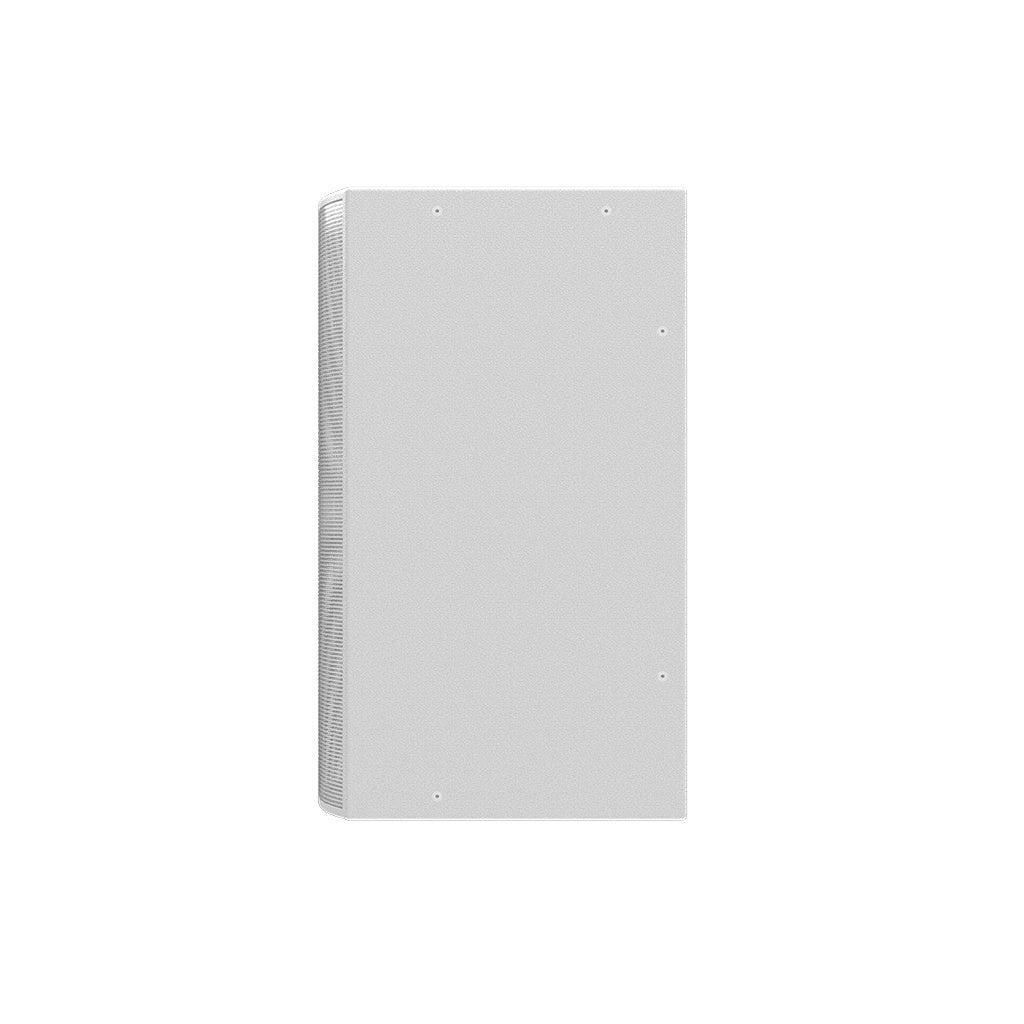

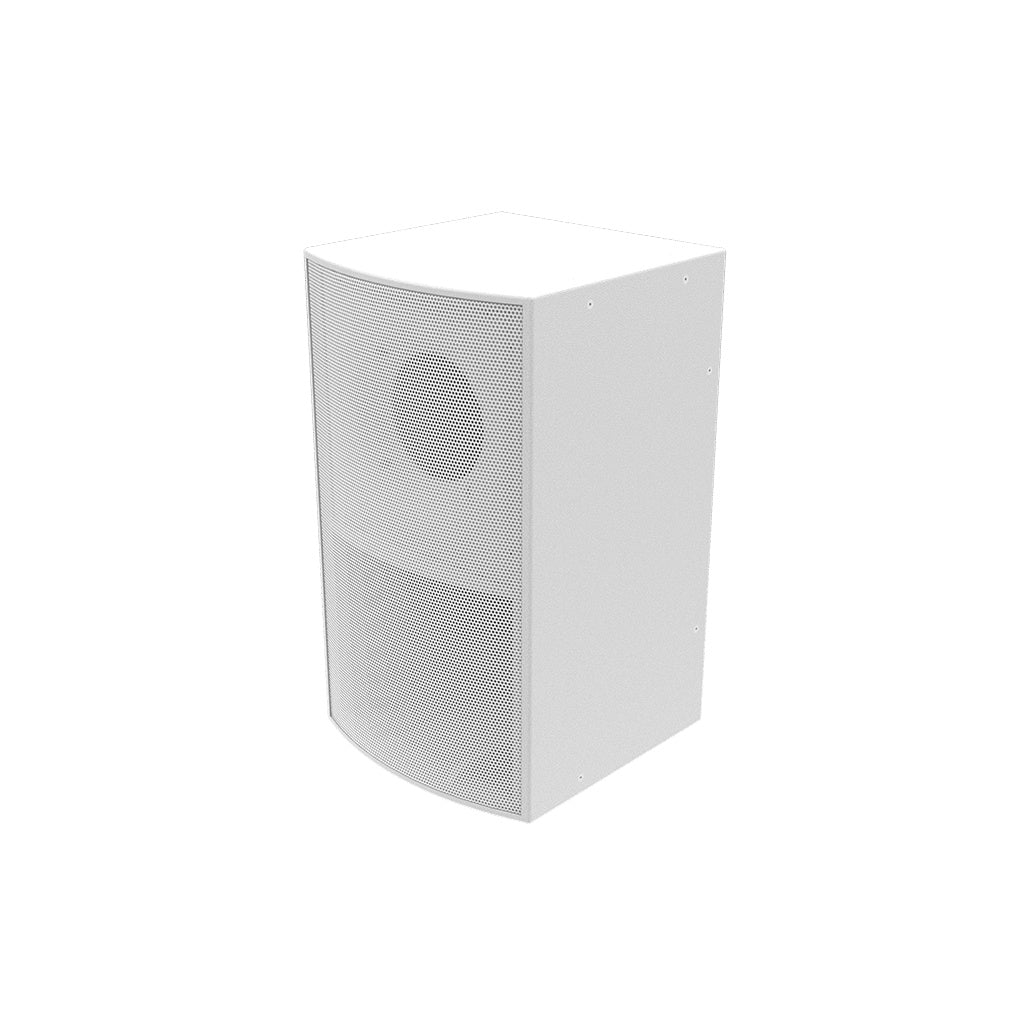

Danley SM80F-I-W Full-Range Loudspeaker With Synergy Design | Install Version | White

Danley SM80F-I-W Full-Range Loudspeaker With Synergy Design | Install Version | White

SoundPro Item: 119729 | Part Number: SM80F-I-W

Regular price $11,287.90
Regular price $11,882.00 Sale price $11,287.90
Your Price Sold out
MSRP: $11,882.00 | MAP: $11,287.90

Usually ships in 5-7 business days

  • 80° conical pattern supports even room coverage
  • Full-range design reduces subwoofer dependence
  • High output suits demanding SPL requirements
  • Synergy and Tapped Horn design aids system efficiency
  • Compact format helps in tighter deployment spaces

The Danley SM80F is a full-range loudspeaker designed for applications that need substantial output and broad bandwidth from a single enclosure. Its design combines Danley Synergy and Tapped Horn technologies to deliver controlled coverage with strong low-frequency performance, making it a practical option where system size, deployment efficiency, and vocal clarity all matter. For integrators and production teams, the SM80F addresses projects that call for fewer compromises between pattern control, impact, and musical range.

With an 80° conical pattern, the SM80F is suited to spaces where even coverage is important across both horizontal and vertical planes. The driver complement pairs a 12" coaxial section with dual 15" woofers, supporting applications that need intelligibility for speech as well as authority for full-range program material. Its output capability and sensitivity make it appropriate for demanding venues, while the relatively compact footprint helps when designing systems for rooms with limited placement options.

View full details

Specifications

Performance
coverage Pattern
80° Conical
operating frequency range
45Hz-17kHz +/- 3dB 39Hz-23kHz – 10dB
continuous output
Mid/High 128 dB SPL Low 135 dB SPL
peak output
Mid/High 134 dB SPL Low 141 dB SPL
sensitivity
Mid/High 102 dB SPL Low 106 dB SPL measured in wholespace at 1M @ 2.83V input
Rated Impedance
Mid/High 8 Ohms Low 2 Ohms
Power Rating
Mid/High 400 Watts Cont. 1600 Watts Peak Low 3400 Watts Cont. 13,600 Watts Peak
Configuration
driver complement
1 x 12″ coaxial 2 x 15″ woofers
Physical
dimensions
45 x 26 x 28 inches
weight
215 lbs
