Specifications
Performance
Frequency Range (-10 dB)
65 Hz – 22 kHz
Horizontal Coverage (-6 dB)
80º
Vertical Coverage
70º
Nominal Impedance
8 ohms
Transformer Taps 70 V
5 W-10 W-15 W
Transformer Taps 100 V
10 W-20 W-30 W
RMS Power Handling
100 W
Peak Power Handling
400 W
On-axis Sensitivity 1W/1 m
89 dB SPL
Maximum Peak SPL at 1 m
115 dB
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004
Connectivity

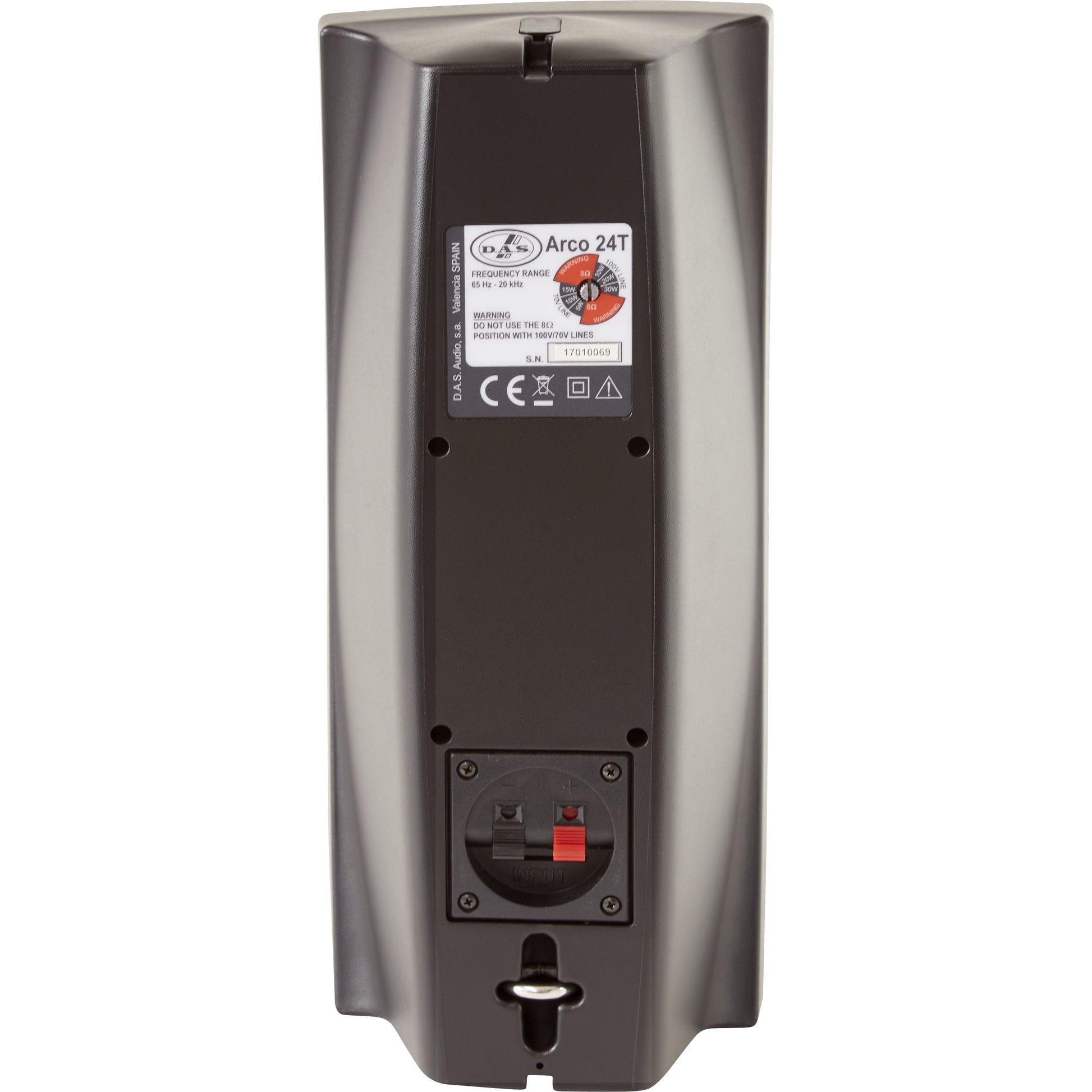

Audio Input Connector
Spring Terminals
Audio Output Connector
Spring Terminals
Construction

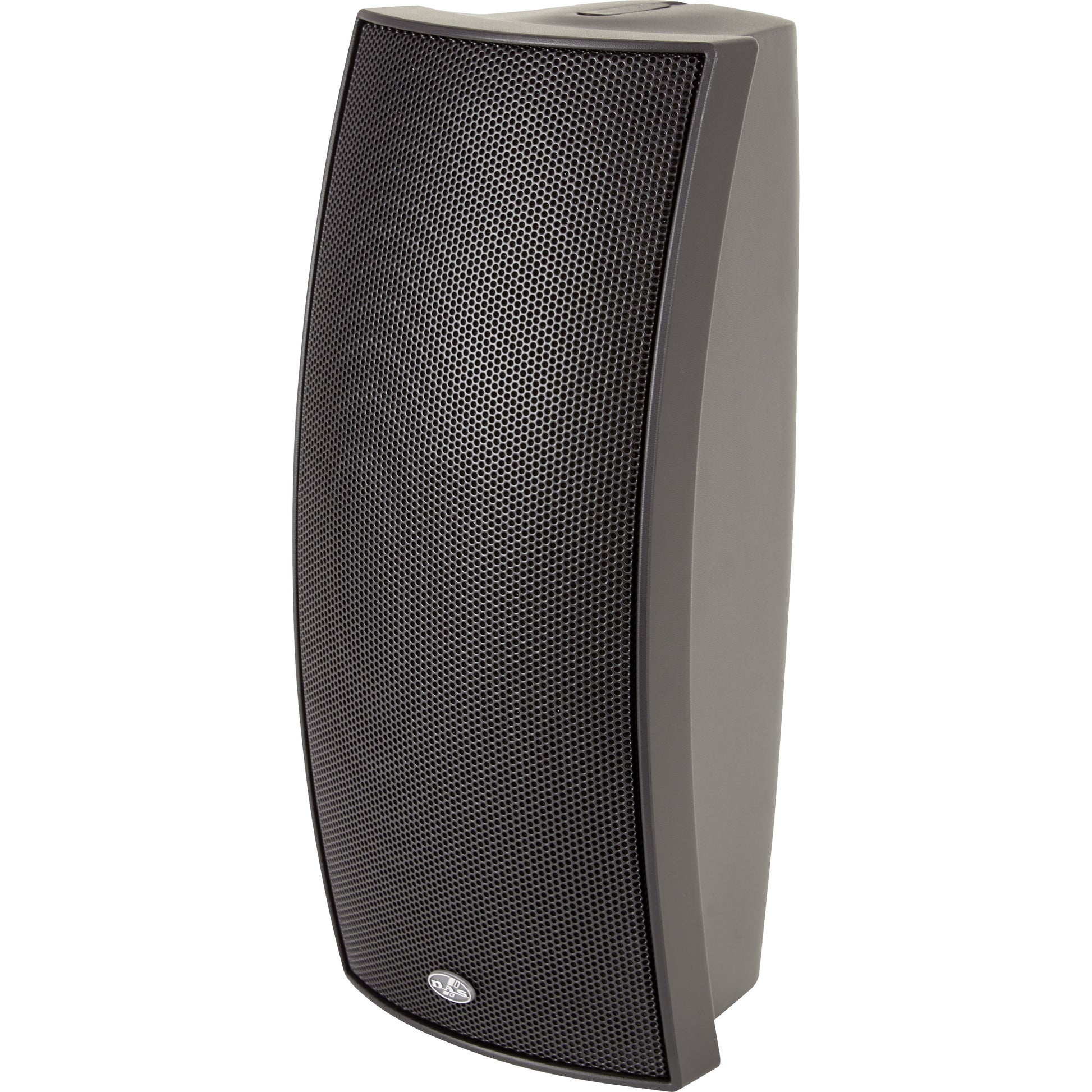

Enclosure Construction
High Impact ABS
Enclosure Geometry
Trapezoidal
Color
Black
LF Driver
4G4
HF Driver
TWT-24
Dimensions
Enclosure Dimensions (H x W x D)
13.4" x 5.7" x 5.5"
Weight
Net Weight
5.7 lbs
Shipping
Carton Dimensions (H x W x D)
17.9" x 13.0" x 6.7"
Shipping Weight
7.3 lbs
