Specifications
Performance
Frequency Range (-10 dB)
72 Hz – 22 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
90º
Nominal Impedance
8 ohms
Transformer Taps 70 V
2.5 W-5 W-7.5 W
Transformer Taps 100 V
5 W-10 W-15 W
RMS Power Handling
50 W
Peak Power Handling
200 W
On-axis Sensitivity 1W/1 m
86 dB SPL
Maximum Peak SPL at 1 m
109 dB
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004
Connectivity
Audio Input Connector

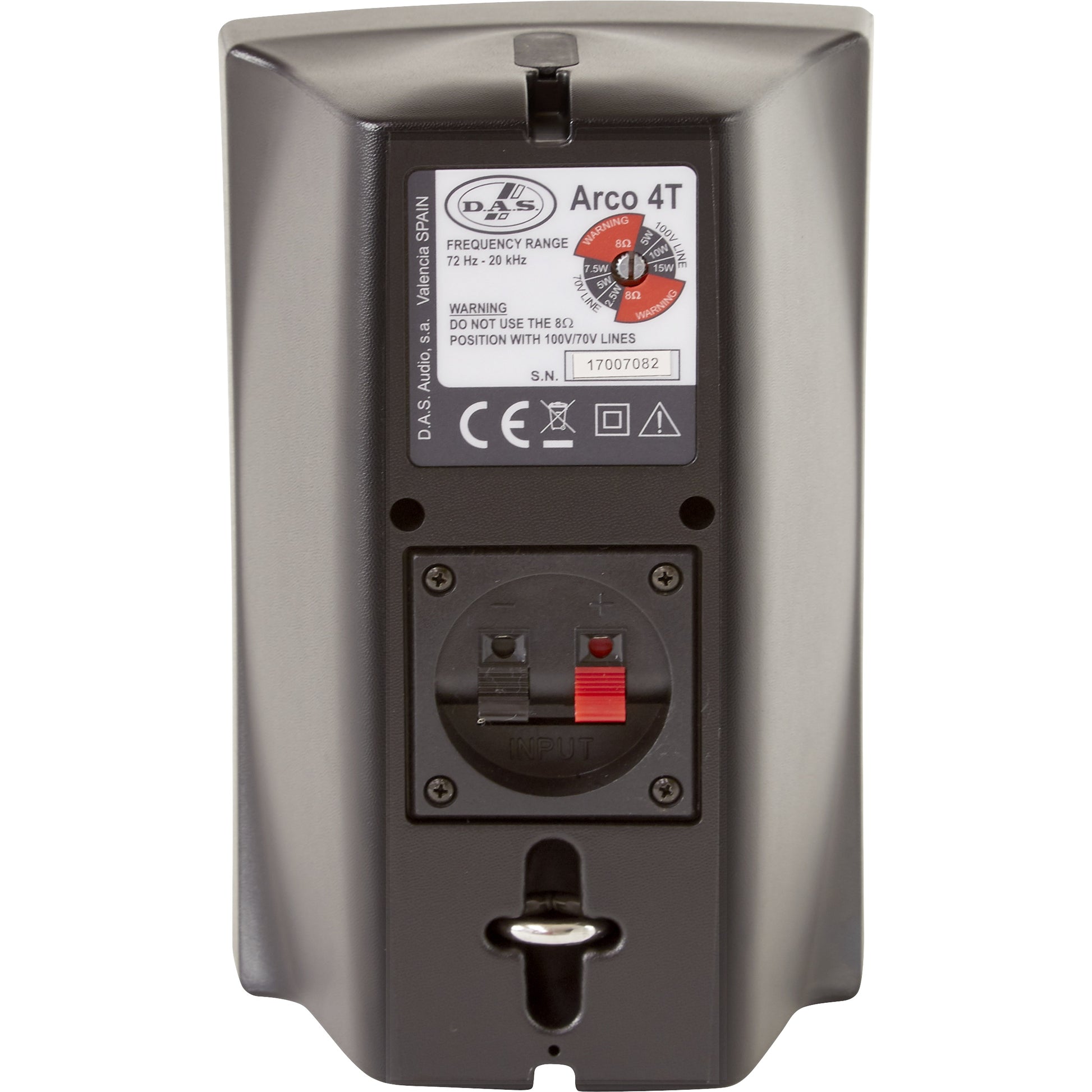

Spring Terminals
Audio Output Connector
Spring Terminals
Construction

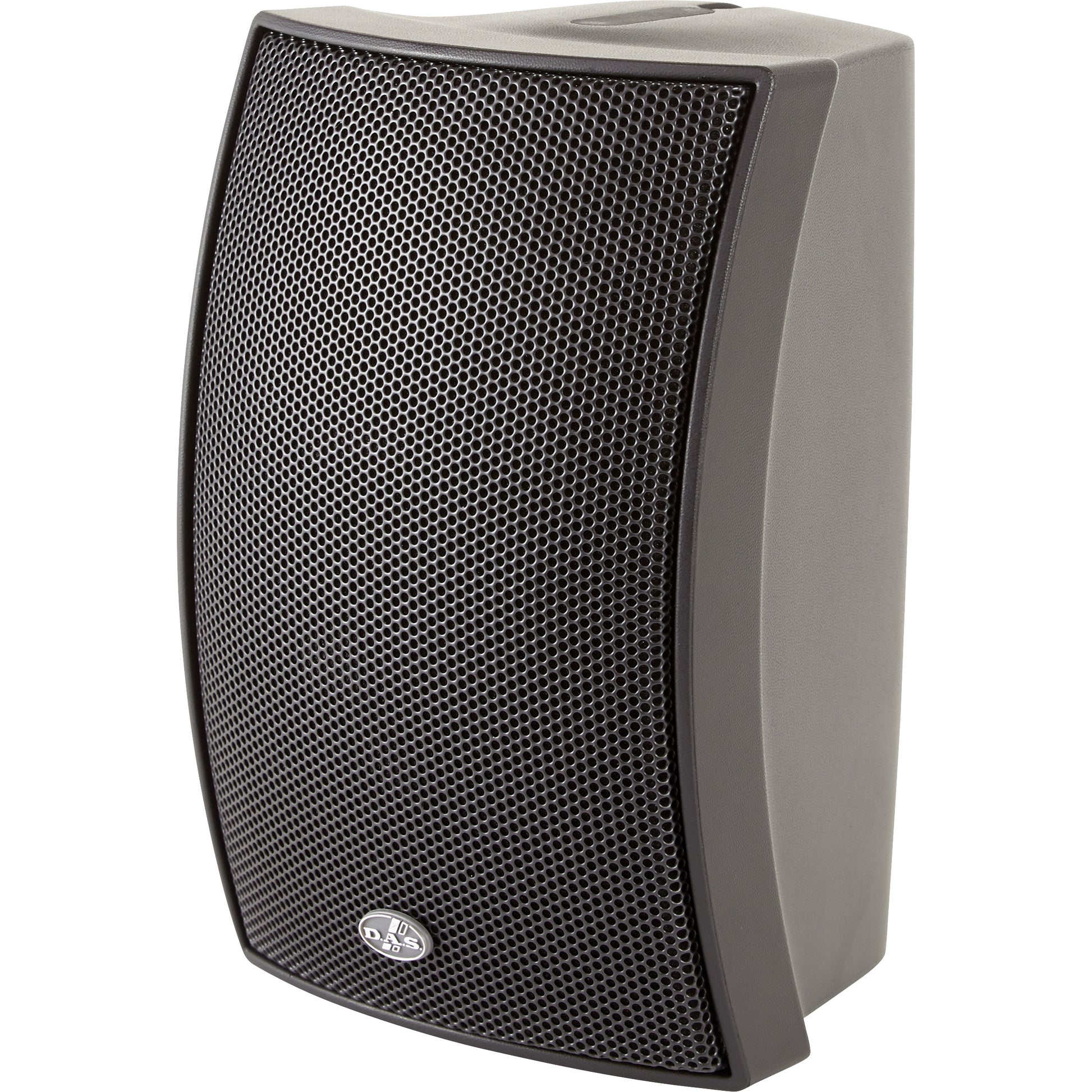

Enclosure Construction
High Impact ABS
Enclosure Geometry
Trapezoidal
Color
Black
LF Driver
4G
HF Driver
TWT-4
Dimensions
Enclosure Dimensions (H x W x D)
8.3" x 5.3" x 5.5"
Weight
Net Weight
3.5 lb
Shipping
Carton Dimensions (H x W x D)
12.8" x 13.0" x 6.7"
Shipping Weight
4.9 lb
