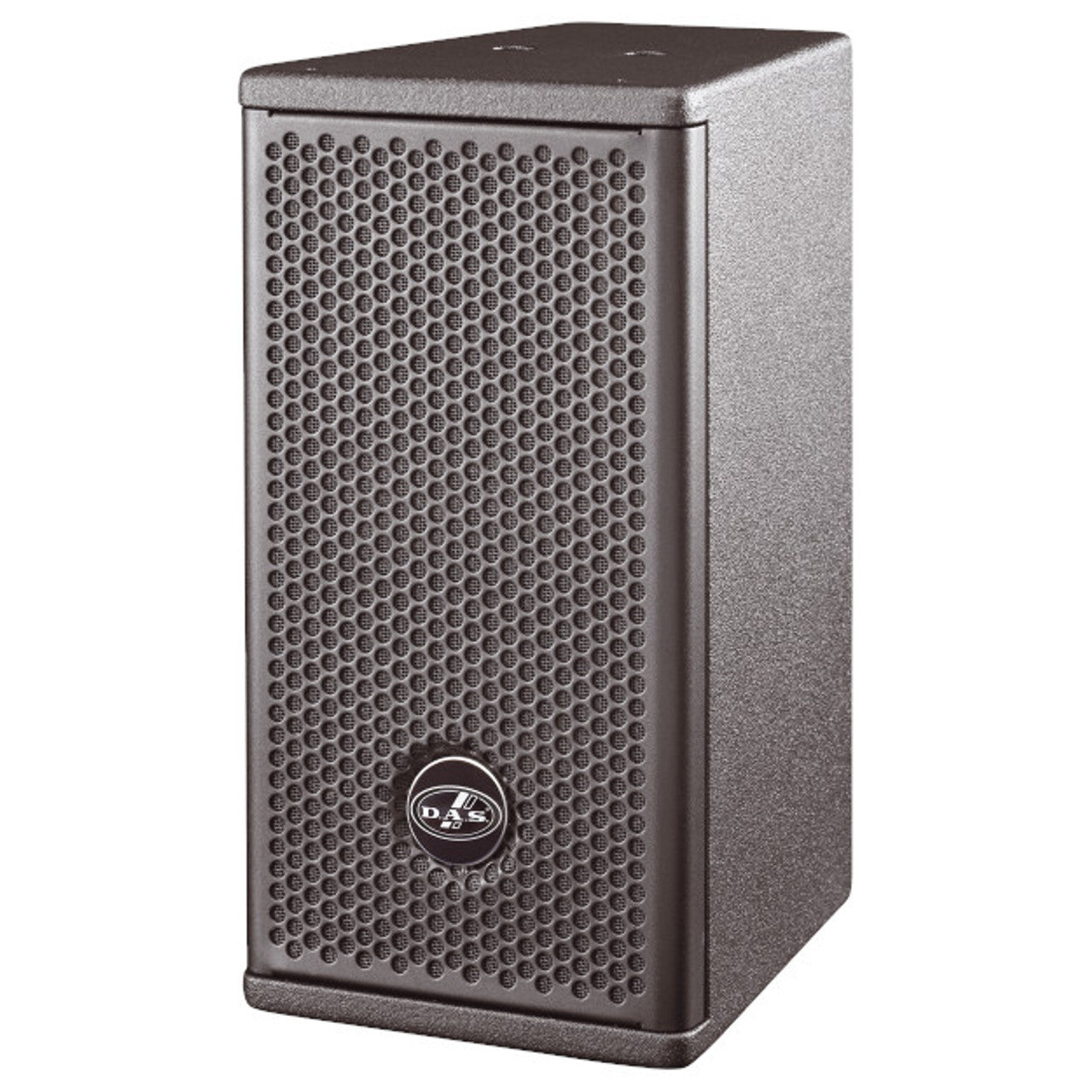

• DAS Audio ARTEC-306 6 2-Way Compact Passive Installation Speaker black

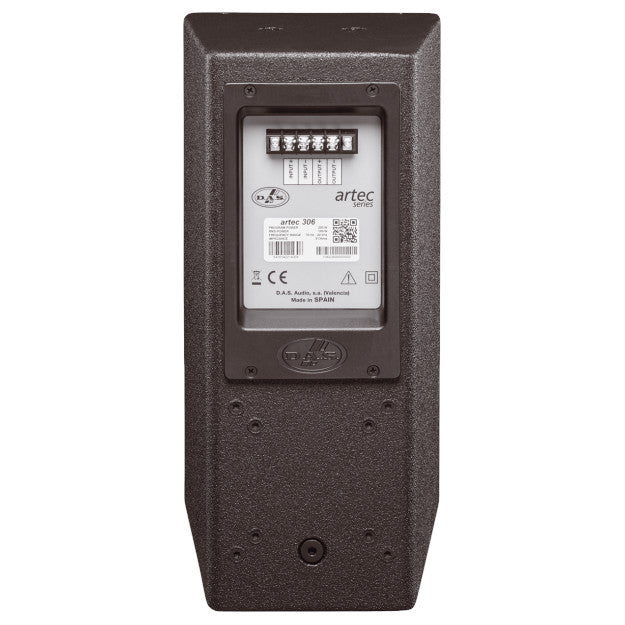

  • DAS Audio ARTEC-306 6 2-Way Compact Passive Installation Speaker back
1 2

DAS Audio ARTEC-306 6-Inch Passive Surface Mount Speaker | Model: ARTEC-306

DAS Audio ARTEC-306 6-Inch Passive Surface Mount Speaker | Model: ARTEC-306

SoundPro Item: 87394 | Part Number: ARTEC-306

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 1 x 6B low frequency loudspeaker
  • 1 x M-26 compression driverRotatable 90º x 60º horn
  • Vertical or horizontal positioning
  • VESA75/VESA100 standard threaded mounting points
  • AXU-A306 U-Bracket included
Log in or register for YOUR best price

The ARTEC-306 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.

View full details

Specifications

Dimensions
Depth
260 mm (10,2 in)
Dimensions (HxWxD)
15.2x7.7x10.2" (385x195x260 mm)
Carton Dimensions (HxWxD)
18.5x10.5x13" (471x266x330 mm)
Weight
Net Weight
15.8 lbs (7,2 kg)
Shipping Weight
20.3 lbs (9,2 kg)
Audio
On-axis Sensitivity 1W/1 M
90 dB SPL
Maximum Peak SPL at 1 M
116 dB
Audio Input Connector
Covered Barrier Strip Terminals
Audio Output Connector
Covered Barrier Strip Terminals
Construction
Enclosure Construction
Birch Plywood
Finish
ISO-flex Paint
Color
Black
General
Frequency Range (-10 dB)
70 Hz – 20 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
60º
Nominal Impedance
8 ohms
RMS Power Handling
100 W
Peak Power Handling
400 W
Recommended Amplifier
PA-900
Recommended Processor
DSP-226
Enclosure Geometry
Trapezoidal
Rigging
M10 Rigging Points
LF Driver
6B
Horn/Waveguide
BCT-96
Drivers
HF Driver
M-26
