DAS Audio ARTEC-306 6-Inch Passive Surface Mount Speaker | Model: ARTEC-306-W
DAS Audio ARTEC-306 6-Inch Passive Surface Mount Speaker | Model: ARTEC-306-W
SoundPro Item: 87395 | Part Number: ARTEC-306-W
Usually ships in 5-7 business days
- 1 x 6B low frequency loudspeaker
- 1 x M-26 compression driverRotatable 90º x 60º horn
- Vertical or horizontal positioning
- VESA75/VESA100 standard threaded mounting points
- AXU-A306 U-Bracket included
The ARTEC-306 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.
- Performance
- Frequency Range (-10 dB): 70 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 90º
- Vertical Coverage: 60º
- Nominal Impedance: 8 ohms
- RMS Power Handling: 100 W
- Peak Power Handling: 400 W
- On-axis Sensitivity 1W/1 m: 90 dB SPL
- Maximum Peak SPL at 1 m: 116 dB
- Recommended Amplifier: PA-900
- Recommended Processor: DSP-226
- Connectors

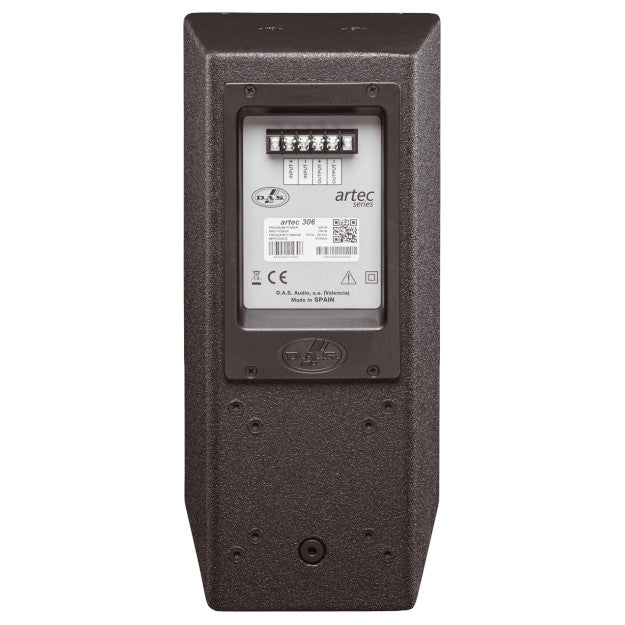

- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 260 mm (10,2 in)
- Dimensions (HxWxD): 15.2x7.7x10.2" (385x195x260 mm)
- Net Weight: 15.8 lbs (7,2 kg)
- Components
- LF Driver: 6B
- HF Driver: M-26
- Horn/Waveguide: BCT-96
- Shipping
- Carton Dimensions (HxWxD): 18.5x10.5x13" (471x266x330 mm)
- Shipping Weight: 20.3 lbs (9,2 kg)
