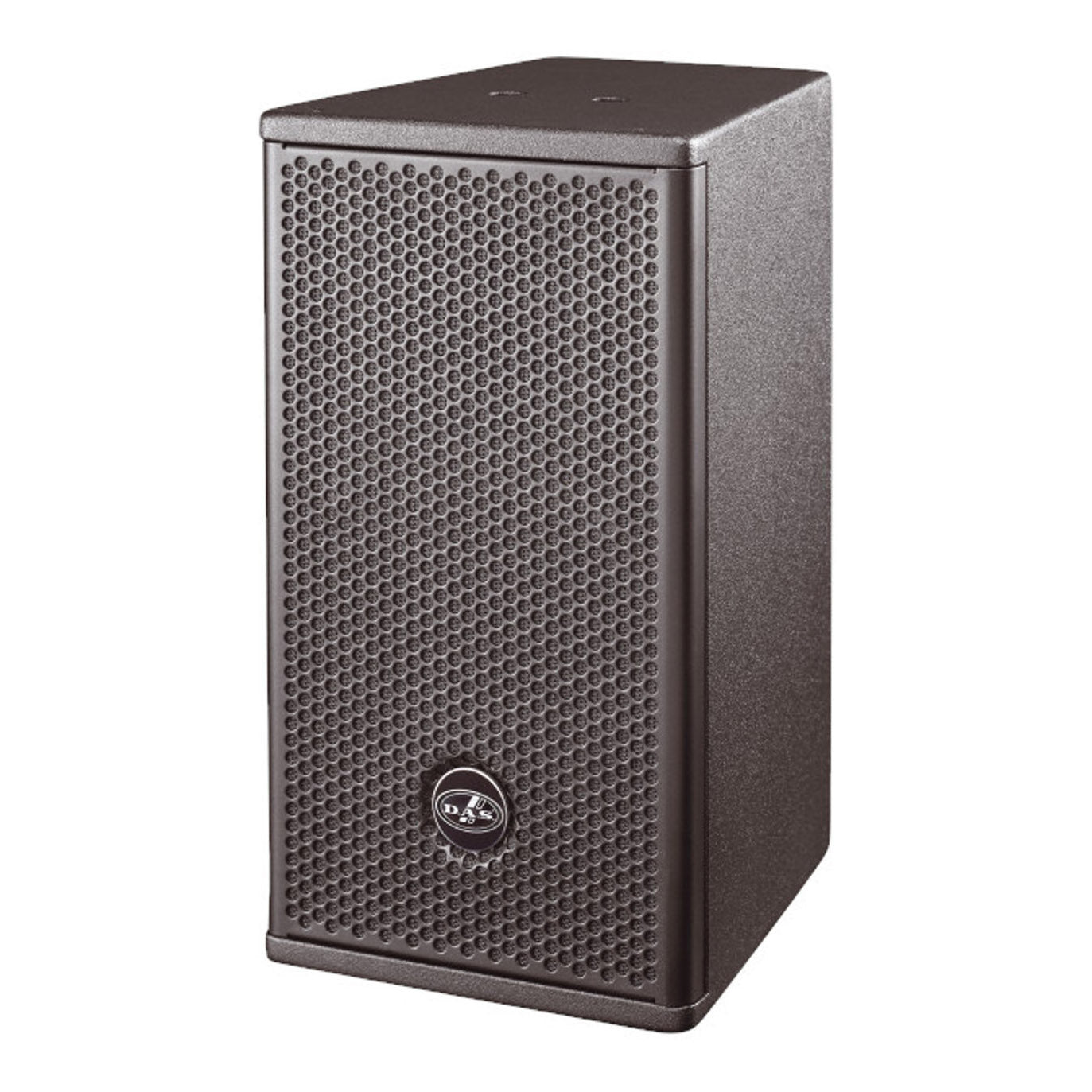

DAS Audio ARTEC-308 8-Inch Passive Surface Mount Speaker | Model: ARTEC-308-T
DAS Audio ARTEC-308 8-Inch Passive Surface Mount Speaker | Model: ARTEC-308-T
SoundPro Item: 87409 | Part Number: ARTEC-308-T
Usually ships in 5-7 business days
- 1 x 8GU low frequency loudspeaker
- 1 x M-26 compression driver
- Rotatable 90º x 60º hornVertical or horizontal positioning
- VESA75/VESA100 standard threaded mounting points
- AXU-A308 U-Bracket included
The ARTEC-308 2-way passive full range loudspeaker utilizes a 8″ low frequency transducer and the M-26 compression driver. The cabinet manufactured using top quality of Birch plywood and finished with a durable black paint finish. The 8″ woofer provides an exceptional bass response considering the cabinets reduced size.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.
- Performance
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 90º
- Vertical Coverage: 60º
- Nominal Impedance: 8 ohms
- RMS Power Handling: 150 W
- Peak Power Handling: 600 W
- On-axis Sensitivity 1W/1 m: 92 dB SPL
- Maximum Peak SPL at 1 m: 120 dB
- Recommended Amplifier: PA-900
- Recommended Processor: DSP-226

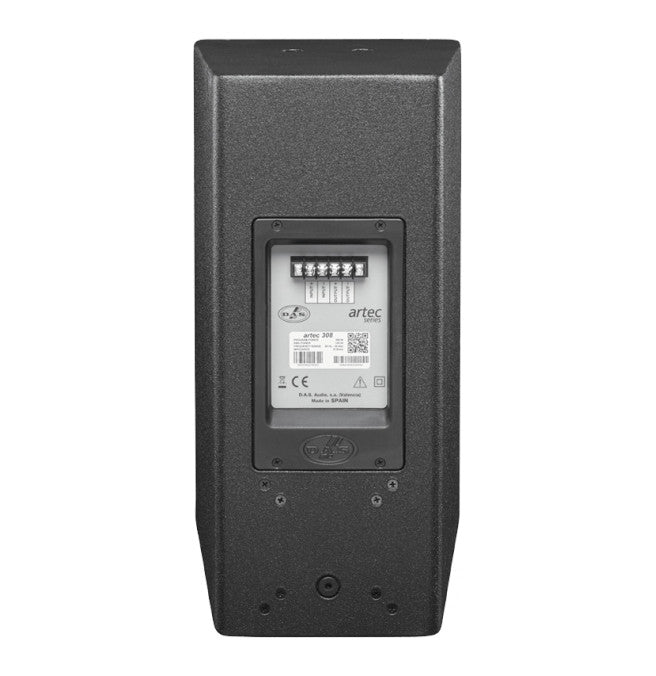

- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 290 mm (11,4 in)
- Dimensions (HxWxD): 17.7x9.7x114" (450x245x290 mm)
- Net Weight: 22.1 lbs (10 kg)
- Components
- LF Driver: 8GU
- HF Driver: M-26
- Horn/Waveguide: BCT-96
- Shipping
- Carton Dimensions (HxWxD): 21.3x12.2x14" (541x310x355 mm)
- Shipping Weight: 29.8 lbs (13,5 kg)
