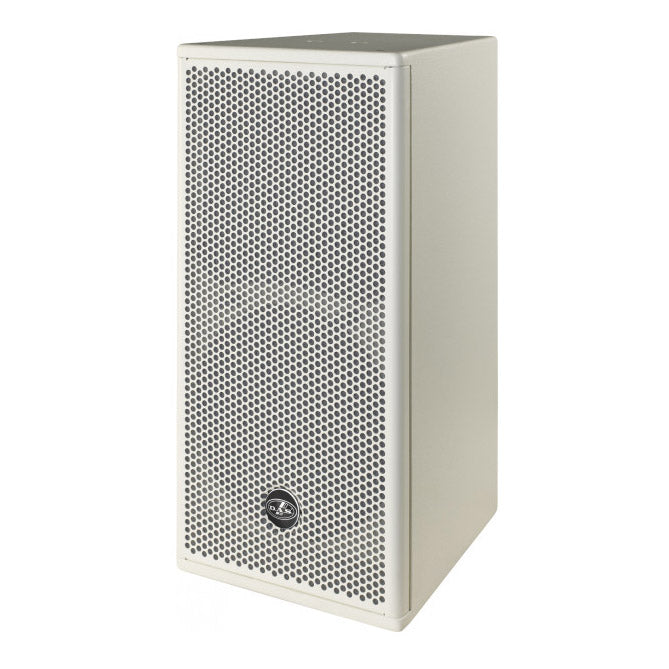

DAS Audio ARTEC-310 10-Inch Passive Surface Mount Speaker | Model: ARTEC-310.96-TW
DAS Audio ARTEC-310 10-Inch Passive Surface Mount Speaker | Model: ARTEC-310.96-TW
SoundPro Item: 87420 | Part Number: ARTEC-310.96-TW
Usually ships in 5-7 business days
- 1 x 10MI low frequency loudspeaker, 2.5” VCD
- 1 x M-34 compression driver
- VESA75/VESA100 standard threaded mounting points
- Rotatable 60º x 40º horns
- Vertical or horizontal positioning
- AXU-A310 U-Bracket included
The ARTEC-310.64 is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguideprovides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount.
- Performance
- Frequency Range (-10 dB): 50 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 60º
- Vertical Coverage: 40º
- Nominal Impedance: 8 ohms
- RMS Power Handling: 250 W
- Peak Power Handling: 1000 W
- On-axis Sensitivity 1W/1 m: 96 dB SPL
- Maximum Peak SPL at 1 m: 126 dB
- Recommended Amplifier: PA-900
- Recommended Processor: DSP-226
- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 345 mm (13,6 in)
- Dimensions (HxWxD): 24x11.6x13.6" (610x295x345 mm)
- Net Weight: 34.2 lbs (15,5 kg)
- Components
- LF Driver: 10MI
- HF Driver: M-34
- Horn/Waveguide: BC-614
- Shipping
- Carton Dimensions (HxWxD): 27.8x15.4x16.4" (705x391x416 mm)
- Shipping Weight: 43 lbs (19,5 kg)
