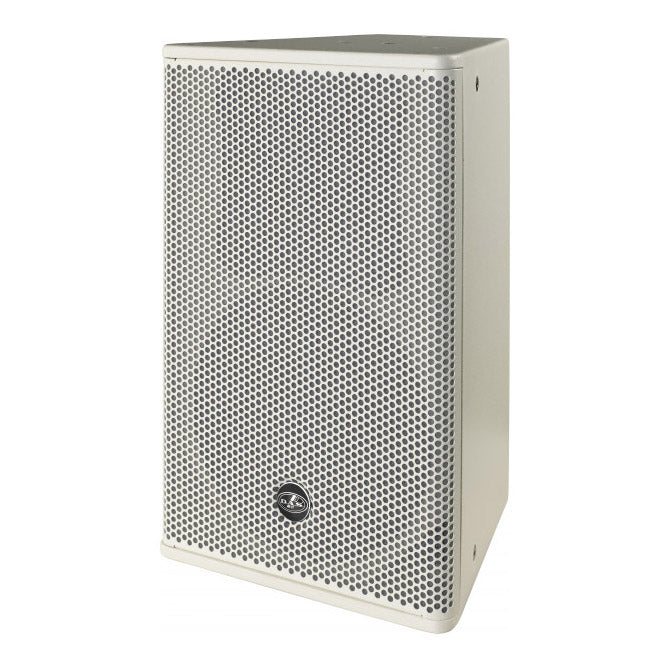

DAS Audio ARTEC-312 12-Inch Passive Surface Mount Speaker | Model: ARTEC-312.64-W
DAS Audio ARTEC-312 12-Inch Passive Surface Mount Speaker | Model: ARTEC-312.64-W
SoundPro Item: 87423 | Part Number: ARTEC-312.64-W
Usually ships in 5-7 business days
- 1 x 12MI low frequency loudspeaker, 2.5” VCD
- 1 x M-34 compression driver
- Rotatable 60º x 40º horn
- Vertical or horizontal positioning
- M-10 rigging points
The ARTEC-312.64 is a compact 2-way full-range loudspeaker system comprised of one 12″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The cabinet is fitted with M10 threaded suspension points.
- Performance
- Frequency Range (-10 dB): 50 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 60º
- Vertical Coverage: 40º
- Nominal Impedance: 8 ohms
- RMS Power Handling: 300 W
- Peak Power Handling: 1200 W
- On-axis Sensitivity 1W/1 m: 96 dB SPL
- Maximum Peak SPL at 1 m: 127 dB
- Recommended Amplifier: PA-1500
- Recommended Processor: DSP-226
- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 14.8" (375 mm)
- Dimensions (HxWxD): 24.2x15.2x14.8" (615x385x375 mm)
- Net Weight: 40.8 lbs (18,5 kg)
- Components
- LF Driver: 12MI
- HF Driver: M-34
- Horn/Waveguide: BC-614
- Shipping
- Carton Dimensions (HxWxD): 28x17.7x17.7" (710x450x450 mm)
- Shipping Weight: 44.9 lbs (20,4 kg)
