DAS Audio ARTEC-315 15-Inch Passive Surface Mount Speaker | Model: ARTEC-315.96
DAS Audio ARTEC-315 15-Inch Passive Surface Mount Speaker | Model: ARTEC-315.96
SoundPro Item: 87428 | Part Number: ARTEC-315.96
Usually ships in 5-7 business days
- 1 x 15MI low frequency loudspeaker, 2.5” VCD
- 1 x M-34 compression driver
- Rotatable 60° x 40° horn
- Vertical or horizontal positioning
- M10 rigging points

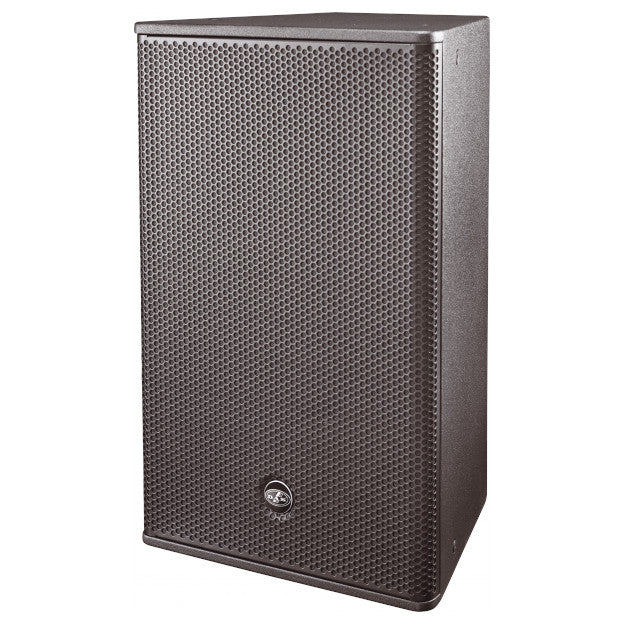

The ARTEC-315.64 is a compact 2-way full-range loudspeaker system comprised of one 15″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration.
The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets.
- Performance
- Frequency Range (-10 dB): 47 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 60º
- Vertical Coverage: 40º
- Nominal Impedance: 8 ohms
- RMS Power Handling: 350 W
- Peak Power Handling: 1400 W
- On-axis Sensitivity 1W/1 m: 96 dB SPL
- Maximum Peak SPL at 1 m: 127 dB
- Recommended Amplifier: PA-1500
- Recommended Processor: DSP-226
- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 15" (380 mm)
- Dimensions (HxWxD): 28.1x17.5x15" (715x445x380 mm) Net Weight: 47.3 lbs (21,5 kg)
- Components
- LF Driver: 15MI
- HF Driver: M-34
- Horn/Waveguide: BC-614
- Shipping
- Carton Dimensions (HxWxD): 31.9x17.3x20.1" (810x440x510 mm)
- Shipping Weight: 54 lbs (24,5 kg)
