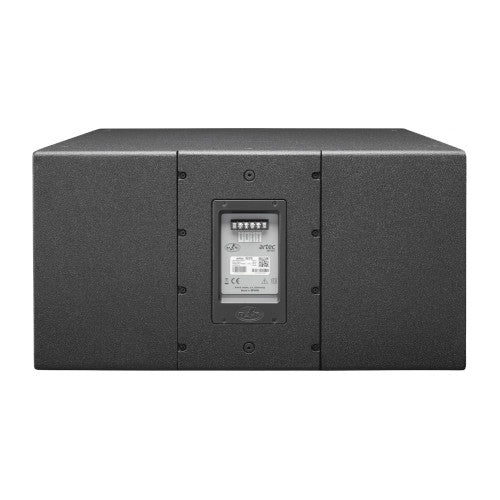

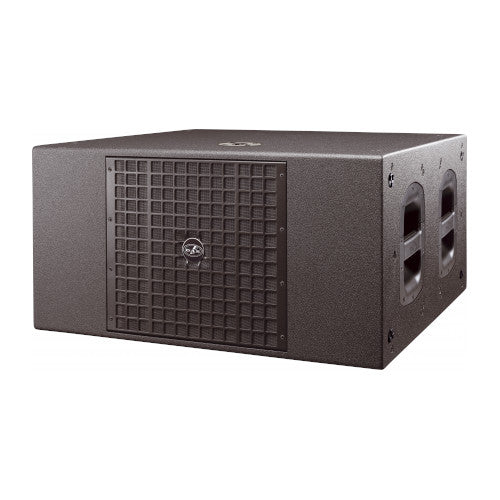

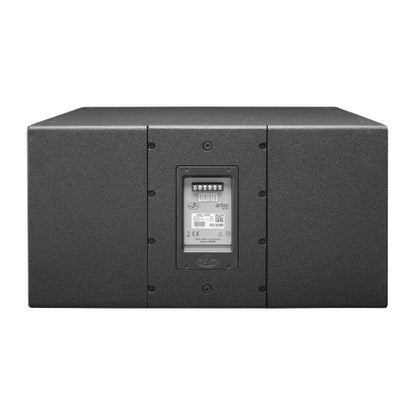

DAS Audio ARTEC-322S 2x12-Inch Line Array Subwoofer | Model: ARTEC-322S
DAS Audio ARTEC-322S 2x12-Inch Line Array Subwoofer | Model: ARTEC-322S
SoundPro Item: 87433 | Part Number: ARTEC-322S
Usually ships in 5-7 business days
- Compact bass-reflex subwoofer system
- 1600 W program power handling
- 2 x 12P low frequency loudspeakers, 3” VCD
- For use in biamplified systems
- Rigging compatible with the Artec 320
The ARTEC-322S is a compact twin 12″ subwoofer designed to provide low frequency reinforcement for the ARTEC-320 installation line array. The bass-reflex system configuration incorporates two DAS 12P loudspeakers with 3″ voice coils for ample power handling.
The Birch plywood enclosure is equipped with rigging points and finished in the durable ISO-flex protective coating. The ARTEC-322 is compatible with the ARTEC-320 and allows units to be flown from the subwoofers with a simple joining plate to form flown arrays.
- Performance
- Frequency Range (-10 dB): 37 Hz – 300 Hz
- Nominal Impedance: 4 ohms
- RMS Power Handling: 800 W
- Peak Power Handling: 3200 W
- On-axis Sensitivity 1W/1 m: 98 dB SPL
- Maximum Peak SPL at 1 m: 132 dB
- Recommended Amplifier: PA-2700
- Recommended Processor: DSP-226
- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Rectangular
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 27.2" (690 mm)
- Dimensions (HxWxD): 14.5x28x27.2" (370x710x690 mm)
- Net Weight: 93.5 lbs (42,5 kg)
- ComponentsLF Driver: 12P
- Shipping
- Carton Dimensions (HxWxD): 31.5x29.1x16.5" (800x740x420 mm)
- Shipping Weight: 95.9 lbs (43,5 kg)
