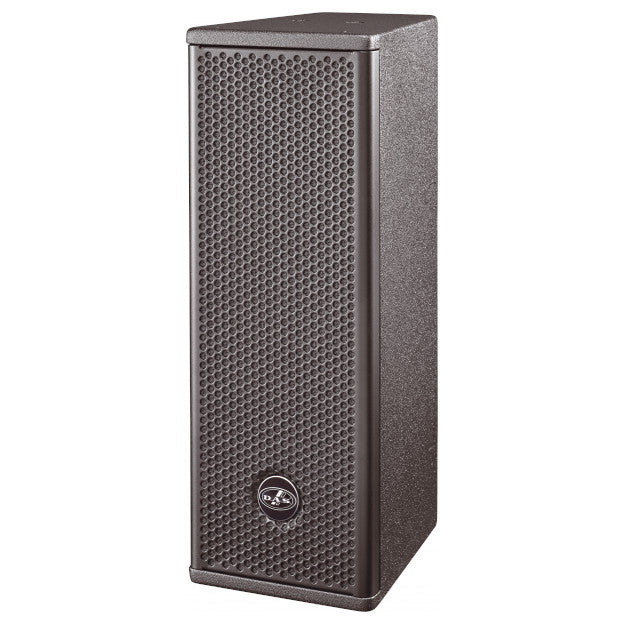

DAS Audio ARTEC-326 2x6-Inch Passive Surface Mount Speaker | Model: ARTEC-326

DAS Audio ARTEC-326 2x6-Inch Passive Surface Mount Speaker | Model: ARTEC-326

SoundPro Item: 87398 | Part Number: ARTEC-326

Regular price $933.85
Regular price $983.00 Sale price $933.85
Your Price Sold out
MSRP: $983.00 | MAP: $933.85

Usually ships in 5-7 business days

  • 2 x 6B low frequency loudspeakers
  • 1 x M-26 compression driver
  • Rotatable 90º x 60º horn
  • Vertical or horizontal positioning
  • VESA75/VESA100 standard threaded mounting points

The ARTEC-326 2-way passive full range loudspeaker utilizes twin 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. It is ideal for venues with low ceilings, or limited space when installed in the horizontal position.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.

View full details

Specifications

Dimensions
Depth
260 mm (10,2 in)
Dimensions (HxWxD)
21.7x7.7x10.2" (550x195x260 mm)
Carton Dimensions (HxWxD)
25.1x10.5x13" (638x266x330 mm)
Weight
Net Weight
22.1 lbs (10 kg)
Shipping Weight
29.8 lbs (13,5 kg)
Audio
On-axis Sensitivity 1W/1 M
93 dB SPL
Maximum Peak SPL at 1 M
122 dB
Audio Input Connector
Covered Barrier Strip Terminals
Audio Output Connector
Covered Barrier Strip Terminals
Construction
Enclosure Construction
Birch Plywood
Finish
ISO-flex Paint
Color
Black
General
Frequency Range (-10 dB)
60 Hz – 20 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
60º
Nominal Impedance
16 ohms
RMS Power Handling
200 W
Peak Power Handling
800 W
Recommended Amplifier
PA-900
Recommended Processor
DSP-226
Enclosure Geometry
Trapezoidal
Rigging
M10 Rigging Points
LF Driver
6B
Horn/Waveguide
BCT-96
Drivers
HF Driver
M-26
