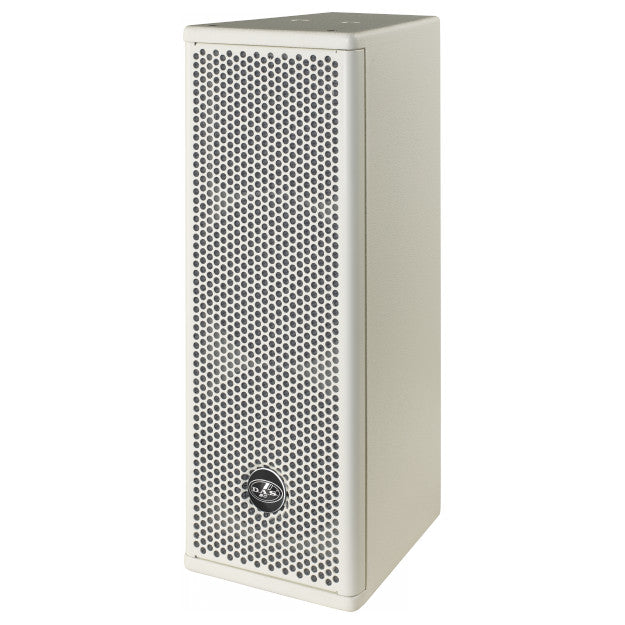

DAS Audio ARTEC-326 2x6-Inch Passive Surface Mount Speaker | Model: ARTEC-326-TW
DAS Audio ARTEC-326 2x6-Inch Passive Surface Mount Speaker | Model: ARTEC-326-TW
SoundPro Item: 87405 | Part Number: ARTEC-326-TW
Usually ships in 5-7 business days
- 2 x 6B low frequency loudspeakers
- 1 x M-26 compression driver
- Rotatable 90º x 60º horn
- Vertical or horizontal positioning
- VESA75/VESA100 standard threaded mounting points
The ARTEC-326 2-way passive full range loudspeaker utilizes twin 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. It is ideal for venues with low ceilings, or limited space when installed in the horizontal position.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.
- Performance
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 90º
- Vertical Coverage: 60º
- Nominal Impedance: 16 ohms
- RMS Power Handling: 200 W
- Peak Power Handling: 800 W
- On-axis Sensitivity 1W/1 m: 93 dB SPL
- Maximum Peak SPL at 1 m: 122 dB
- Recommended Amplifier: PA-900
- Recommended Processor: DSP-226
- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 260 mm (10,2 in)
- Dimensions (HxWxD): 21.7x7.7x10.2" (550x195x260 mm)
- Net Weight: 22.1 lbs (10 kg)
- Components
- LF Driver: 6B
- HF Driver: M-26
- Horn/Waveguide: BCT-96
- Shipping
- Carton Dimensions (HxWxD): 25.1x10.5x13" (638x266x330 mm)
- Shipping Weight: 29.8 lbs (13,5 kg)
