Specifications
Dimensions
Dimensions (HxWxD)
15.2" x 7.7" x 10.2"
Electrical
Current Draw 230 V / 115 V
-/2.4 A
Audio
Max. Peak SPL at 1m
118 dB
Input Impedance
20 kΩ
Input Sensitivity
1.95 V (+8 dBu)

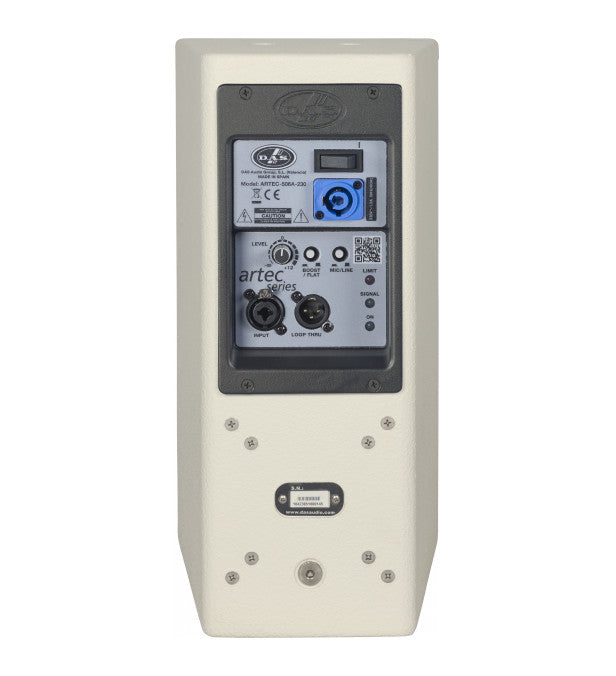

Audio Signal Input Connector
1 x female XLR
Audio Signal Loop Thru Connector
1 x male XLR
Connectivity
Input Type
balanced
Construction
Construction
birch plywood
Finish
ISO-flex paint
Shipping
Weight
19.8 pounds
General
Frequency Range (-10dB)
65Hz - 20,000Hz
Horizontal Coverage (-6dB)
80°
Vertical Coverage
80°
LF Continuous
360 W
LF Peak
720 W
HF Continuous
180 W
HF Peak
360 W
LF Driver
6P
Horn/Waveguide
BC-88
Geometry
trapezoidal
Rigging
M10 rigging points
Drivers
HF Driver
M-34
