DAS Audio ARTEC-508 8-Inch Passive Surface Mount Speaker | Model: ARTEC-508-W
DAS Audio ARTEC-508 8-Inch Passive Surface Mount Speaker | Model: ARTEC-508-W
SoundPro Item: 115254 | Part Number: ARTEC-508-W
Usually ships in 5-7 business days
- Single 8” loudspeaker
- M-34 compression driverVertical or horizontal positioning
- Threaded fixing points for wall mounts
- Pole mount socket
- Ideal for A/V systems, corporate events, conference rooms, classrooms, restaurants and more

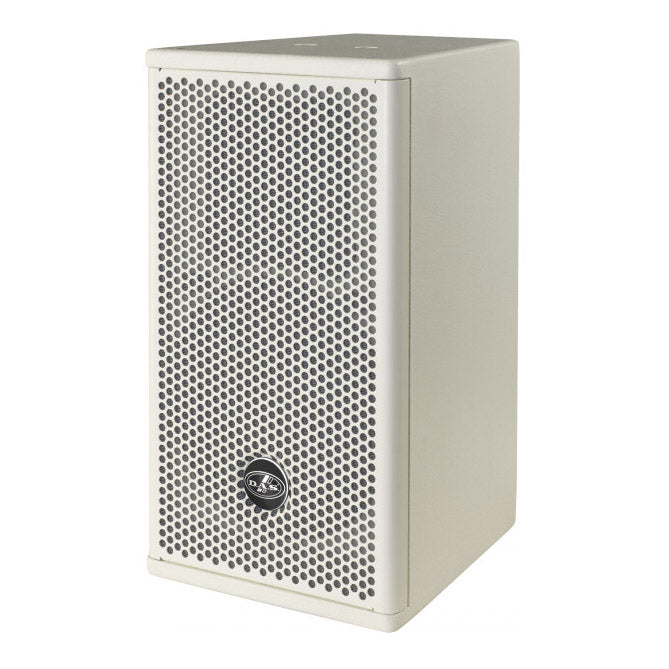

The Artec-508 employs a single 8C woofer for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and a pole mount socket augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
Available Configurations
- ARTEC-508: black speaker
- ARTEC-508W: white speaker
- Frequency Range (-10dB)60Hz - 20,000Hz
- Horizontal Coverage (-6dB)80°
- Vertical Coverage80°
- Nominal Impedance8Ω
- RMS Power Handling300W
- Peak Power Handling1200W
- On-Axis Sensitivity 1W/1m91dB SPL
- Max. Peak SPL at 1m122dB
- Recommended Amplifier
- DX-80-230
- DX-80-115
- Recommended ProcessorDSP-2040

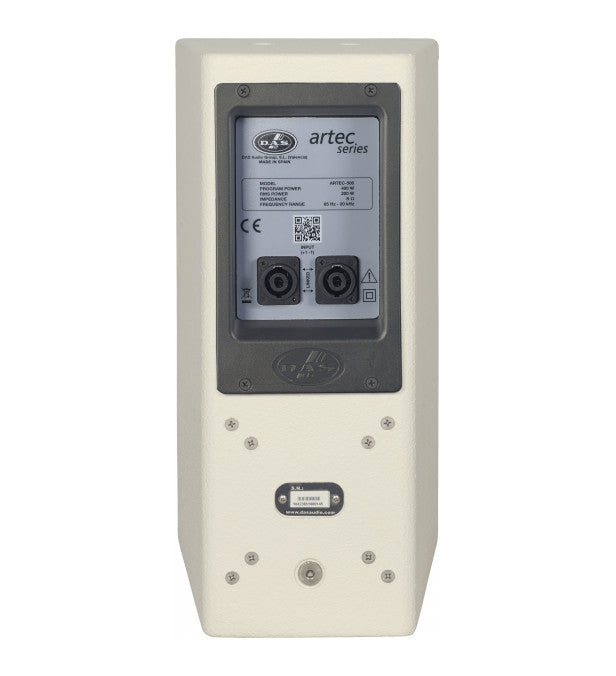

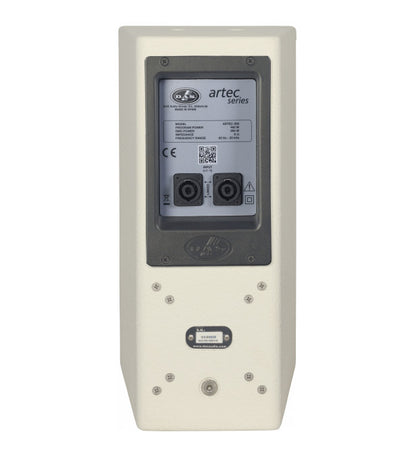

- Connectors
- Audio Input Connector: 1 x speakON NL4
- Audio Output Connector: 1 x speakON NL4
- Components
- LF Driver: 8C
- HF Driver: M-34
- Horn/Waveguide: BC-88
- Enclosure
- Construction: birch plywood
- Geometry: trapezoidal
- Rigging: M10 rigging points
- Finish: ISO-flex paint
- Dimensions (HxWxD): 17.7" x 9.7" x 11.4"
- Weight: 25.4 pounds
