DAS Audio DECO-40-T 4" Coaxial 70V/100V Ceiling Speaker

DAS Audio DECO-40-T 4" Coaxial 70V/100V Ceiling Speaker

SoundPro Item: 152375 | Part Number: DECO-40-T

$727.70
$766.00 $727.70
Your Price Sold out
MSRP: $766.00 | MAP: $727.70

Usually ships in 5-7 business days

  • 2-Way 4" Coaxial Design Delivers Balanced Music And Speech Reproduction

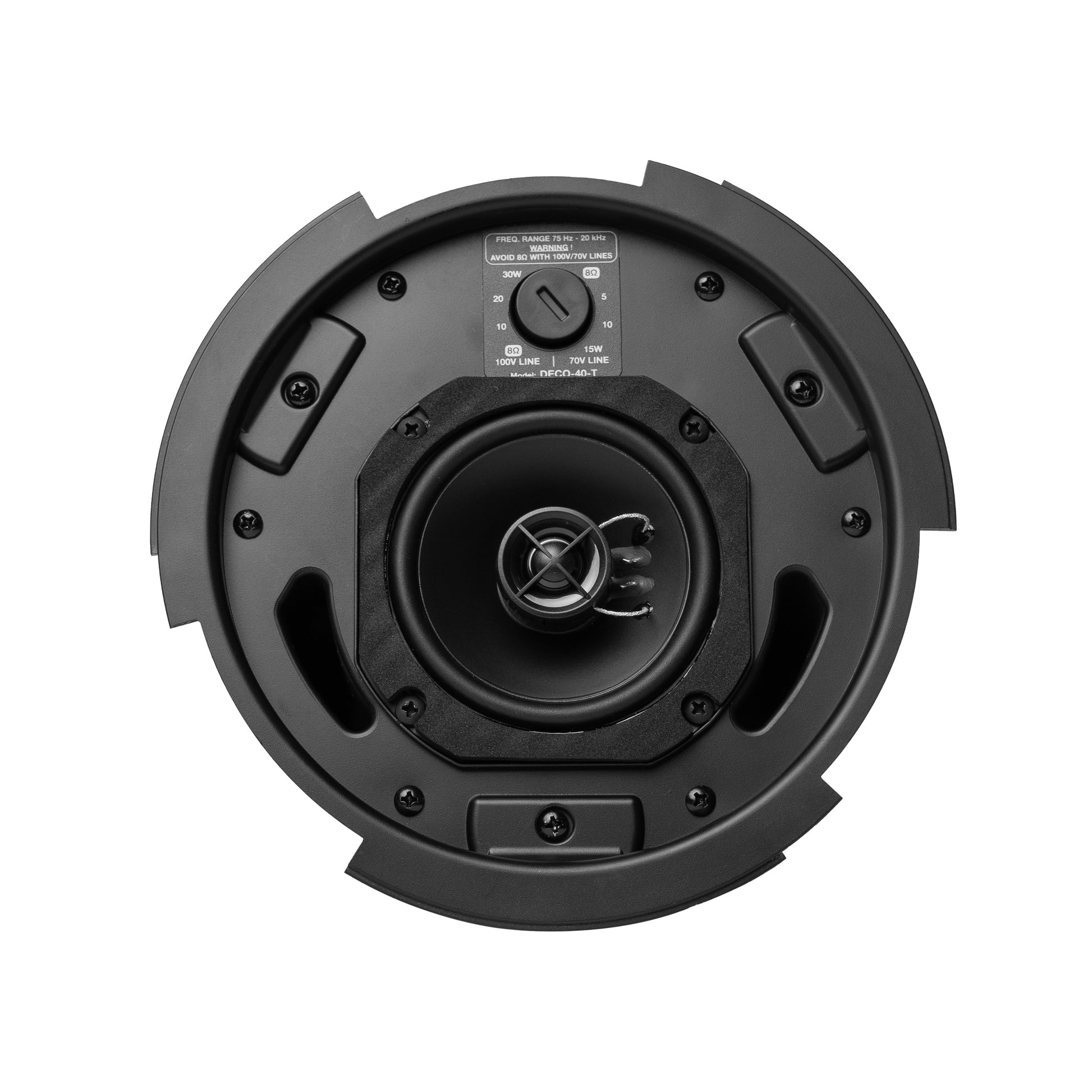

  • Front-Panel Tap Selector Allows Level Changes After Ceiling Installation
  • Switchable 70V And 100V Operation Simplifies Distributed Line Loading
  • 4-Way Phoenix Connector Enables Fast Parallel Daisy-Chaining
  • Auto-Locking Mounting Tabs Speed Tool-Free Drop-In Installation
  • Frameless Grille Provides Discreet Integration With Interior Design
  • EASE Focus Modeling Data Supports Predictable System Coverage Planning
Log in or register for YOUR best price

The DAS Audio DECO-40-T is built for integrators specifying distributed audio across retail floors, hospitality venues, conference rooms, and paging zones where fixed installation and clean sightlines matter. Its 2-way coaxial design delivers even 125-degree conical coverage, letting designers space fewer units across a ceiling grid while maintaining consistent intelligibility for both music and voice.

Selectable 70V and 100V transformer taps make it straightforward to balance loading across long distributed lines, and the front-panel tap selector means level changes can be made after the speaker is seated in the ceiling without pulling it back out. A 4-way Phoenix connector supports quick parallel daisy-chaining, and auto-locking mounting tabs speed drop-in installation compared to conventional dog-leg clamps.

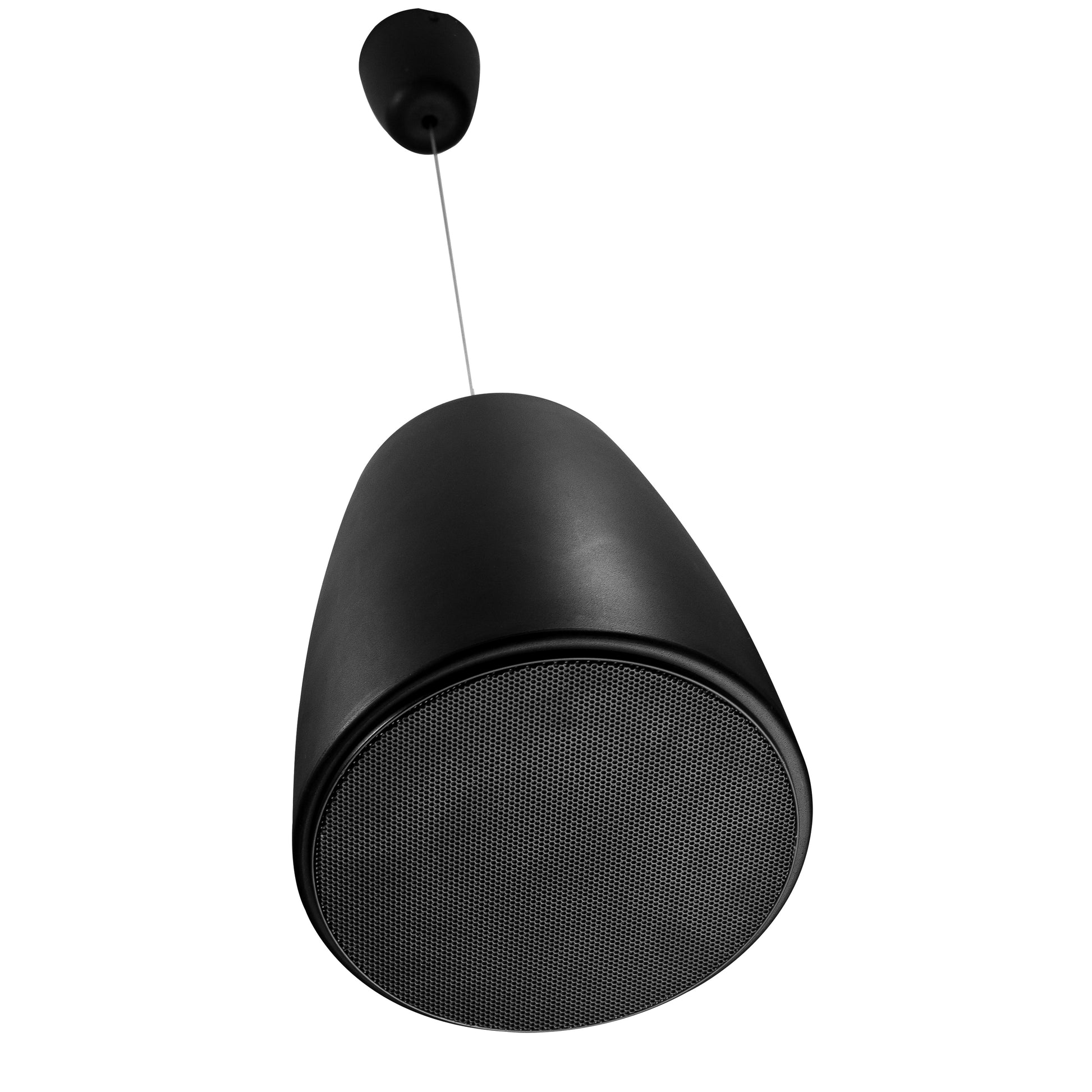

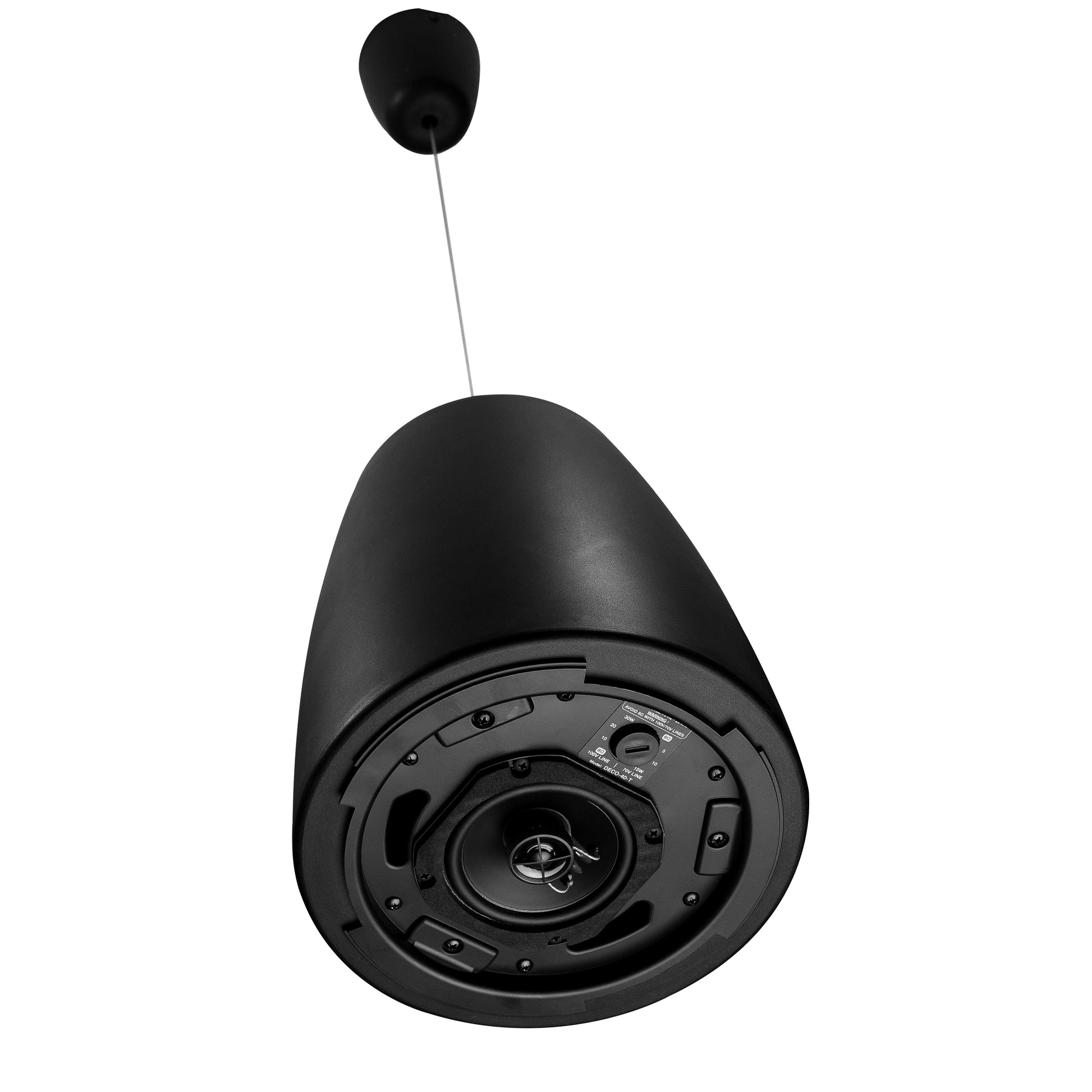

Paired with DAS Integral amplifiers and processors and validated in EASE Focus modeling, the DECO-40-T fits engineered systems that demand predictable coverage and centralized control. The optional PK-40T pendant kit extends placement to open-ceiling and exposed-structure spaces, making it a flexible choice against fixed-mount-only competitors.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)
75 Hz – 20 kHz
Nominal Impedance
8 ohms
Conical Coverage
125º
Transformer Taps 70 V
8 Ω / 5 W / 10 W / 15 W
Transformer Taps 100 V
8 Ω / 10 W / 20 W / 30 W
RMS Power Handling
50 W
Peak Power Handling
200 W
On-axis Sensitivity 1W/1 m
89 dB SPL
Maximum Peak SPL at 1 m
112 dB
MF Driver
4DCX
Connectivity
Audio Input Connector
4-way Phoenix 3.8 mm
Dimensions
Cut Out Diameter
185 mm (7.3 in)
Dimensions (H x W x D)
220 x 220 x 220 mm 8.7 x 8.7 x 8.7 in
Weight
Net Weight
2.7 kg (5.9 lb)
Construction
Enclosure Construction
Steel
Enclosure Geometry
Round
Compatibility
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 INTEGRAL-M26X
