DAS Audio DECO-80-T 8" Coaxial 70V/100V Ceiling Speaker

DAS Audio DECO-80-T 8" Coaxial 70V/100V Ceiling Speaker

SoundPro Item: 151151 | Part Number: DECO-80-T

$1,452.55
$1,529.00 $1,452.55
Your Price Sold out
MSRP: $1,529.00 | MAP: $1,452.55

Usually ships in 5-7 business days

  • Coaxial 2-Way Design Delivers Even Music And Speech Intelligibility

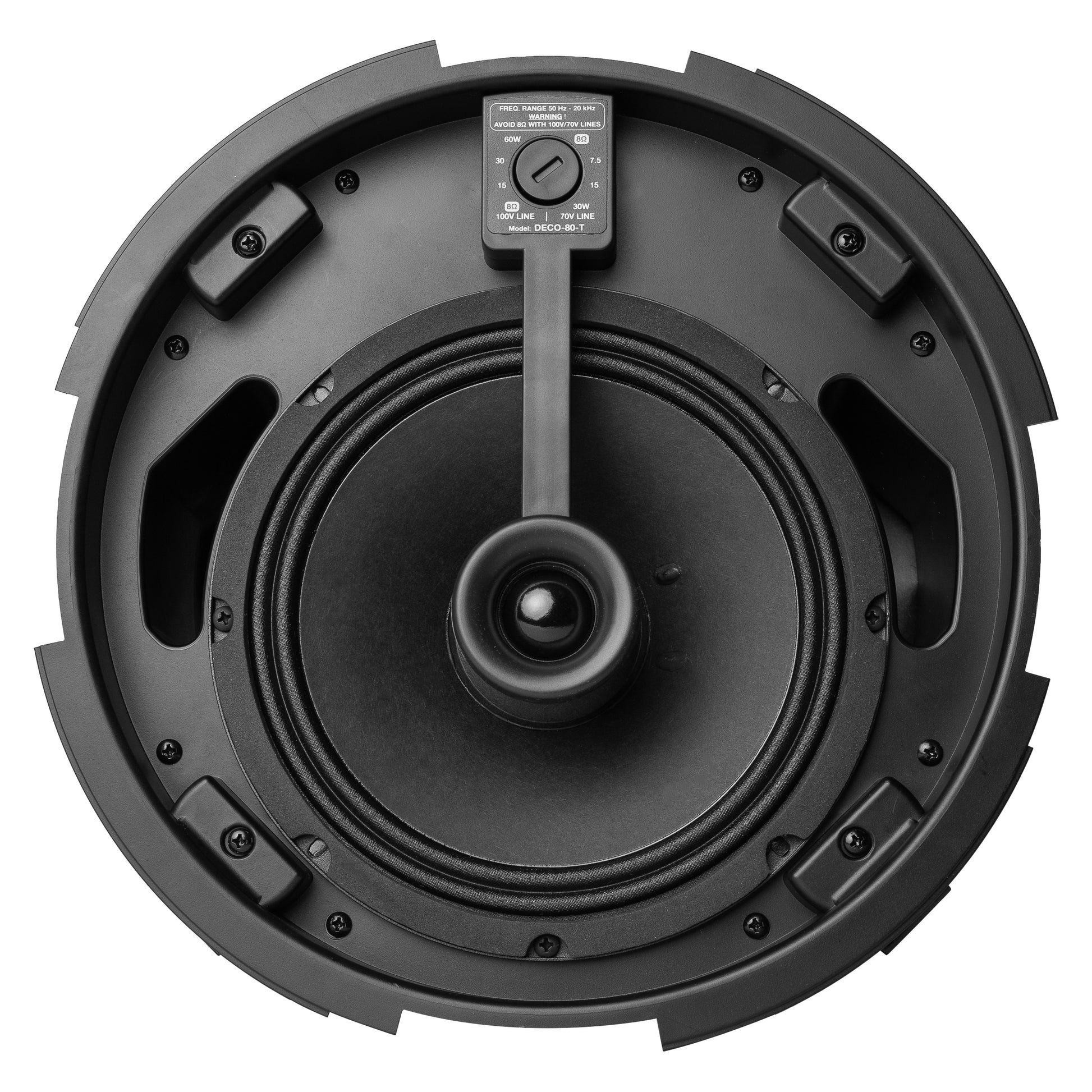

  • Front-Panel Tap Selector Simplifies Level Setting After Installation
  • Auto-Locking Tabs Enable Fast Tool-Free Ceiling Mounting
  • 4-Way Phoenix Connector Supports Easy In-And-Out Link Wiring
  • Frameless Grille Provides Discreet Integration With Finished Interiors
  • EASE Modeling Support For Predictable System Coverage Design

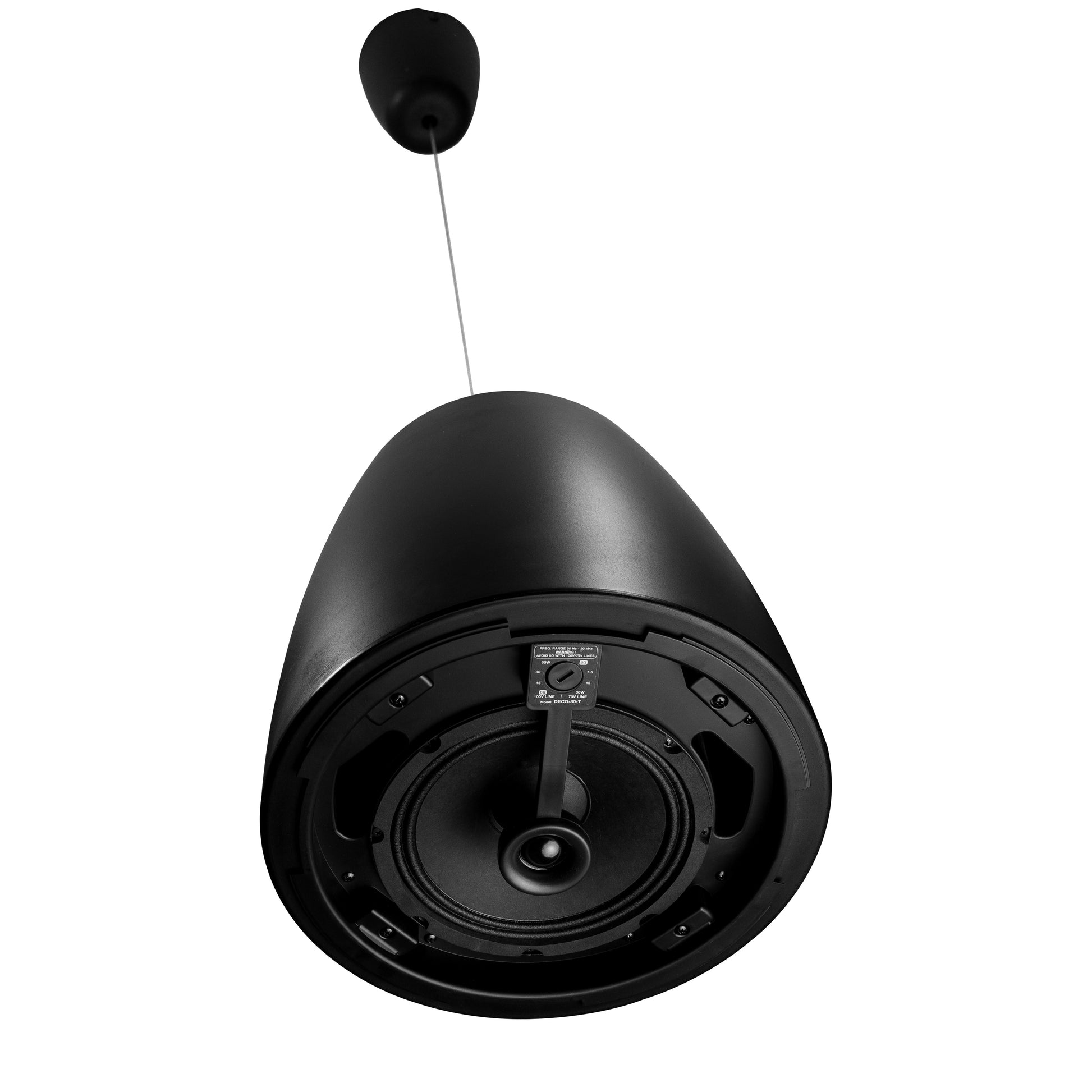

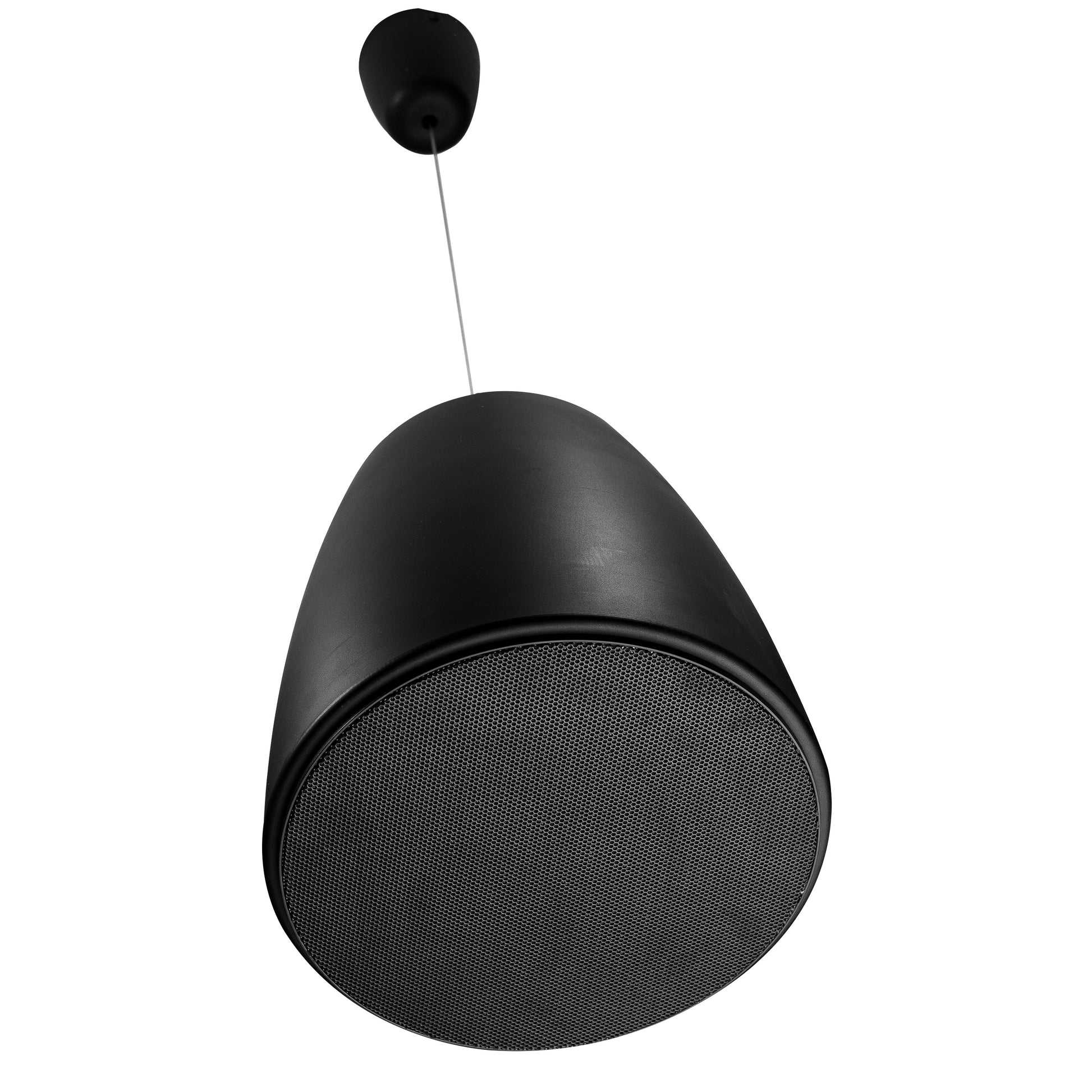

  • Optional Pendant Kit Adapts Unit For Open-Architecture Ceilings
Log in or register for YOUR best price

The DAS Audio DECO-80-T is built for integrators specifying distributed audio in commercial and architectural environments where consistent intelligibility and clean sightlines matter. Its coaxial design and 110-degree conical pattern spread music and paging evenly across restaurants, lobbies, conference rooms, and open retail floors, making it well suited to background and foreground applications alike.

Front-accessible transformer taps let installers set output levels after the speaker is mounted, streamlining commissioning and rebalancing without pulling units down. The 4-way Phoenix connector supports simple in-and-out link wiring across long runs, while the steel enclosure and frameless grille keep the fixture low-profile against finished ceilings. Operation on 70V and 100V lines or 8-ohm nominal impedance gives designers flexibility across small zones and large multi-zone systems.

Paired with DAS Integral amplifiers and processors and supported in EASE modeling tools, the DECO-80-T fits engineered systems that demand predictable coverage and central control. Optional pendant hardware extends placement to open-architecture ceilings, giving specifiers one platform for varied venue types.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)
55 Hz – 20 kHz
Nominal Impedance
8 ohms
Conical Coverage
110º
Transformer Taps 70 V
8 Ω / 7.5 W / 15 W / 30 W
Transformer Taps 100 V
8 Ω / 15 W / 30 W / 60 W
RMS Power Handling
125 W
Peak Power Handling
500 W
On-axis Sensitivity 1W/1 m
94 dB SPL
Maximum Peak SPL at 1 m
121 dB
MF Driver
8GV
HF Driver
TWT-80
Connectivity
Audio Input Connector
4-way Phoenix 3.8 mm
Dimensions
Cut Out Diameter
290 mm (11,4 in)
Dimensions (H x W x D)
321 x 321 x 220 mm 12,6 x 12,6 x 8,7 in
Weight
Net Weight
5,8 kg (12,8 lb)
Construction
Enclosure Construction
Steel
Enclosure Geometry
Round
Compatibility
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 INTEGRAL-M26X
