DAS Audio DECO-80-TS 8" Ceiling Subwoofer 70V/100V

DAS Audio DECO-80-TS 8" Ceiling Subwoofer 70V/100V

SoundPro Item: 150762 | Part Number: DECO-80-TS

$1,274.90
$1,342.00 $1,274.90
Your Price Sold out
MSRP: $1,342.00 | MAP: $1,274.90

Usually ships in 5-7 business days

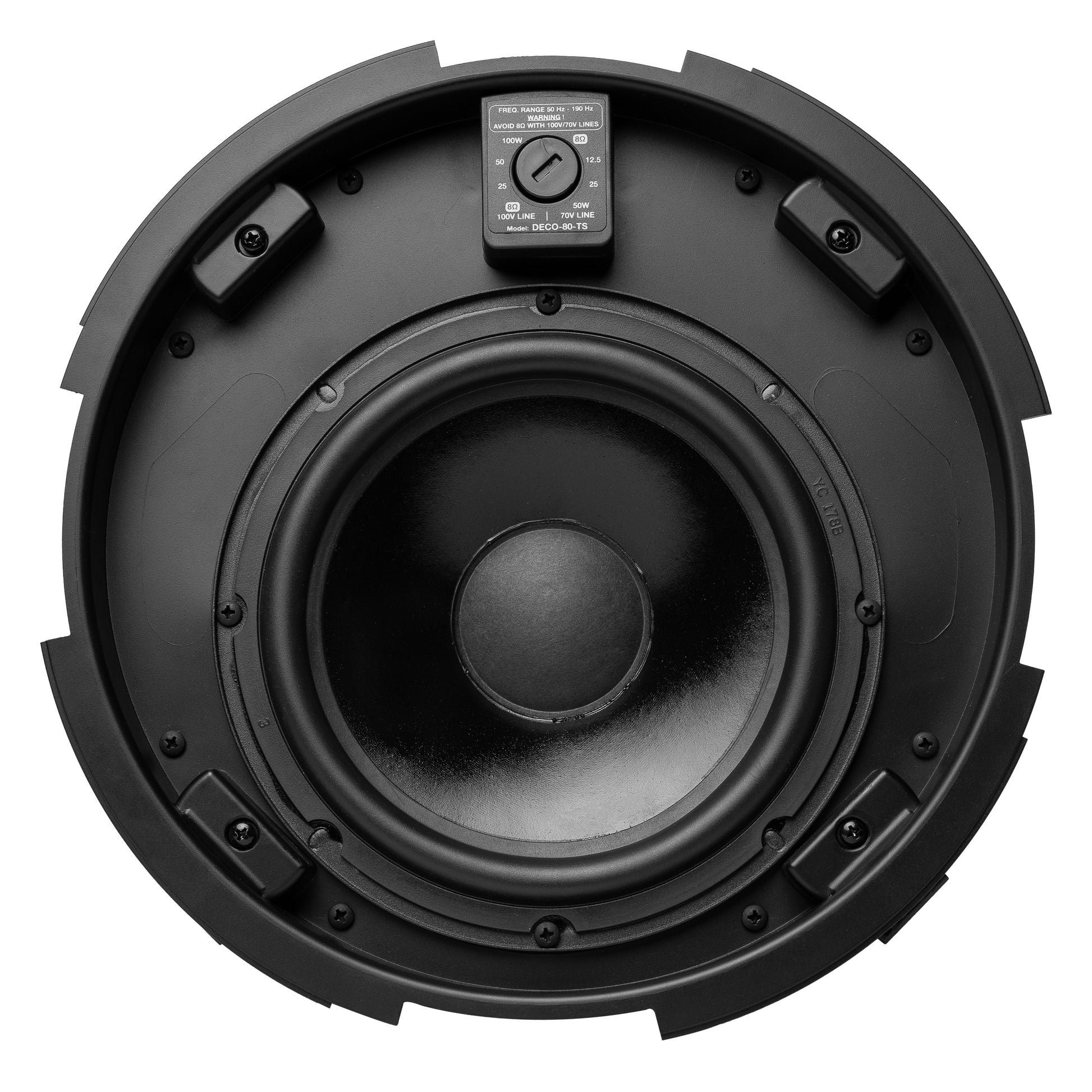

  • Front-Panel Tap Selector Enables Output Adjustment After Ceiling Installation
  • Dual-Mode 8 Ohm And 100V Operation Suits Direct And Constant-Voltage Systems
  • Omnidirectional Dispersion Spreads Low Frequencies Evenly Across Wide Zones

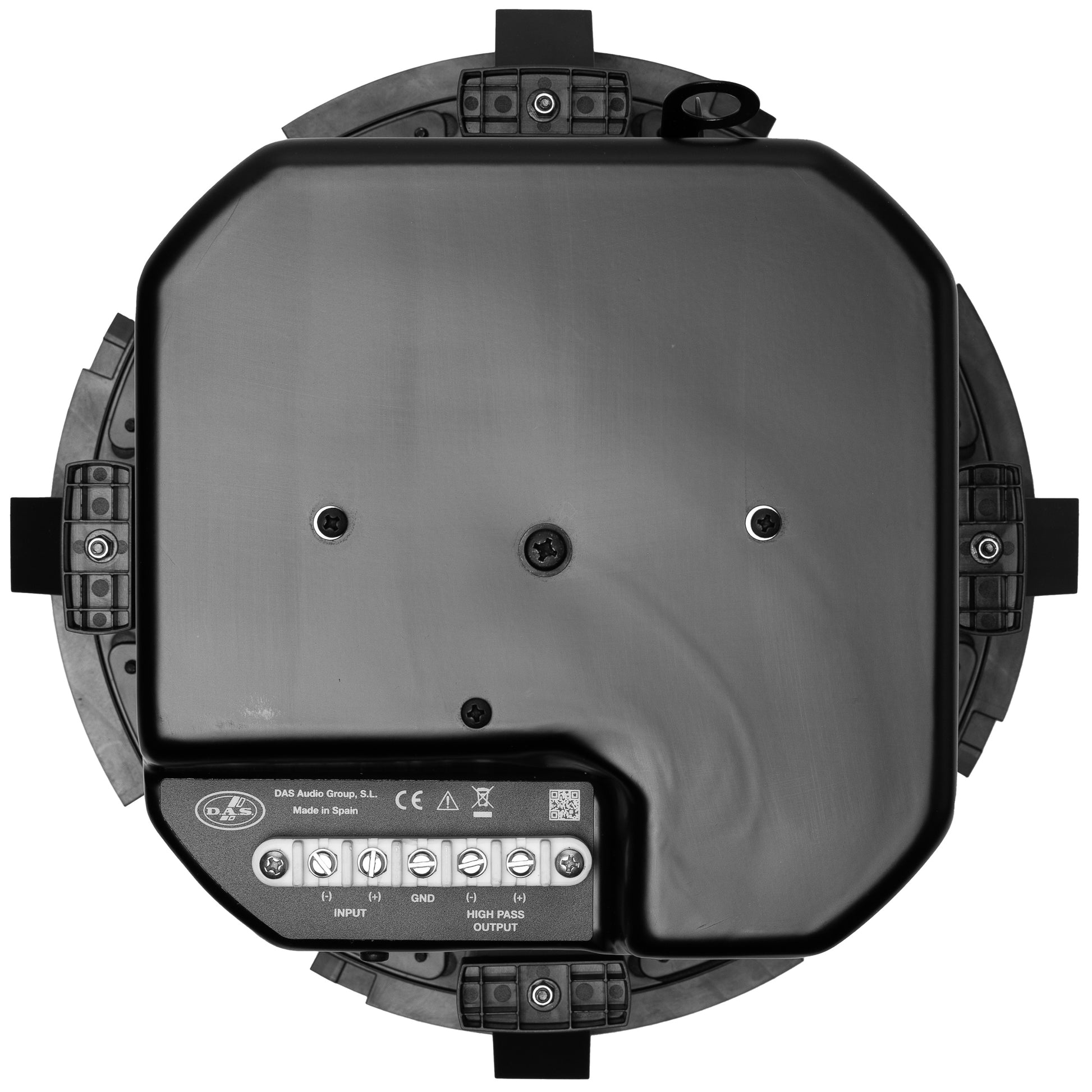

  • Steel Enclosure And Frameless Grille Blend Discreetly Into Finished Ceilings
  • Auto-Locking Tabs Speed Mounting And Secure The Unit In Place

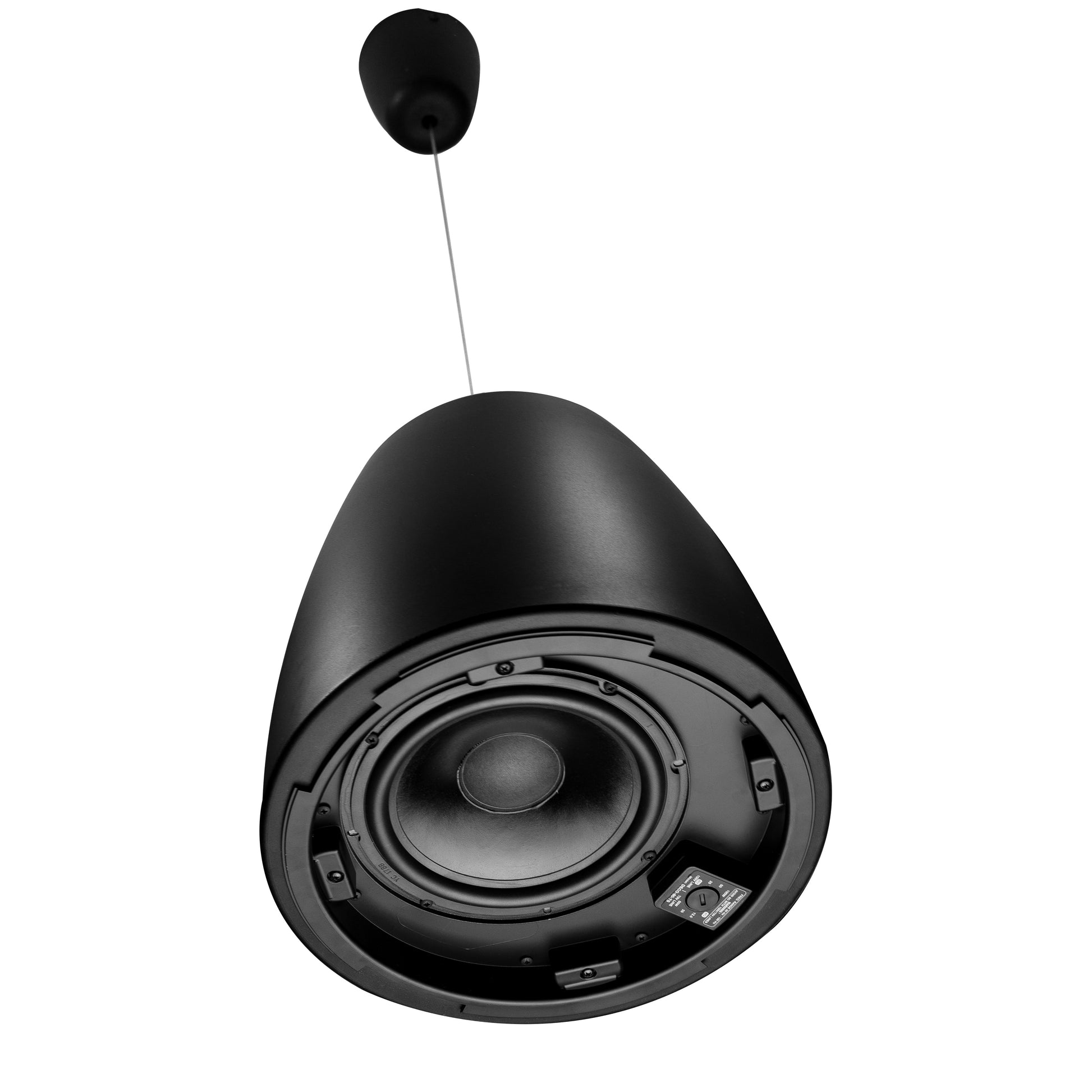

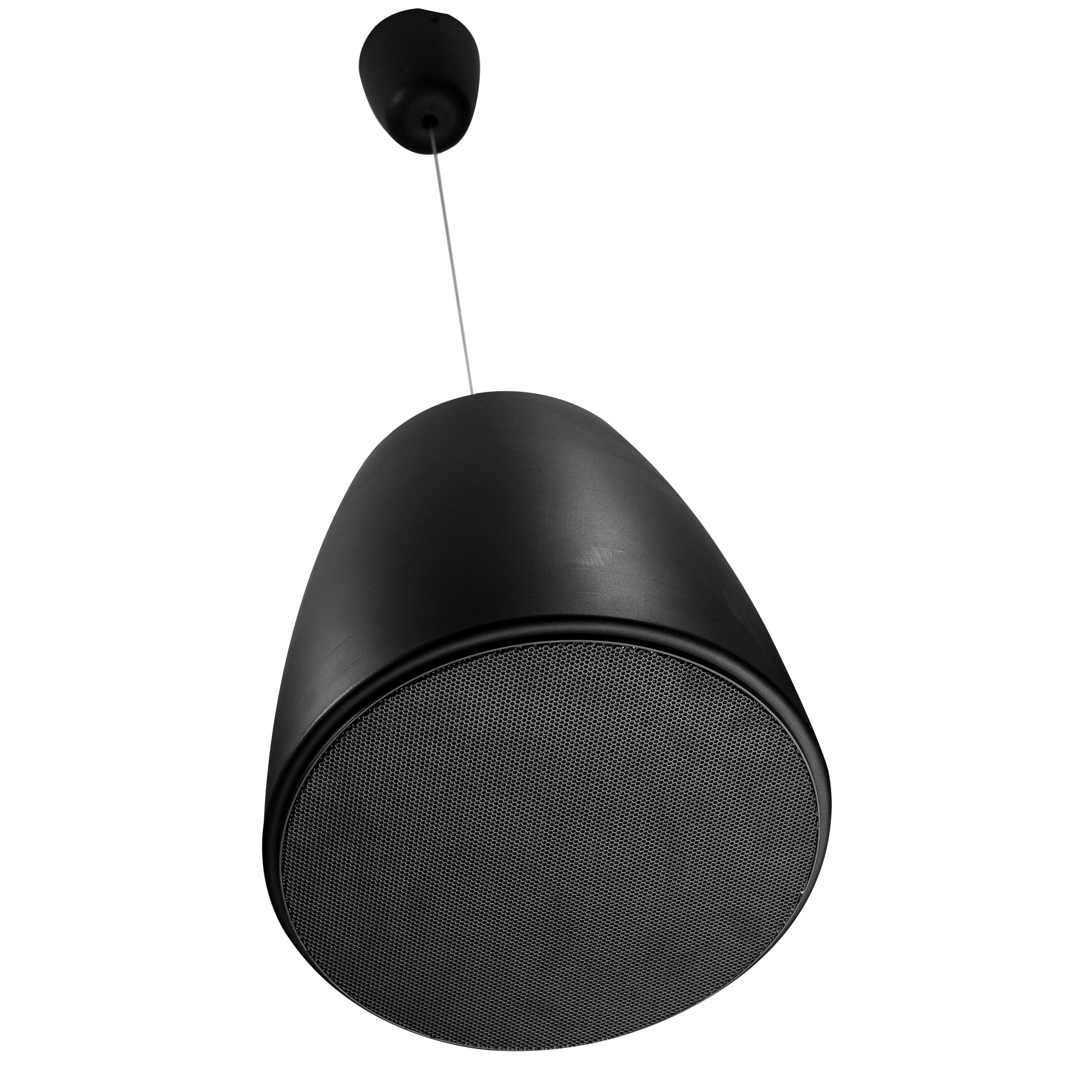

  • Optional Pendant Hardware Adapts Placement For Open-Architecture Spaces
  • EASE Focus, Evac And Address Modeling Data Supports Accurate System Design
Log in or register for YOUR best price

The DAS Audio DECO-80-TS is built for integrators specifying background and foreground music systems that demand more low-end than full-range ceiling speakers can deliver. It fits retail spaces, hospitality venues, fitness studios, houses of worship, and corporate environments where discreet bass extension elevates a distributed audio system without visible floor-standing subs.

Operating on 8-ohm direct connection or 70V/100V constant-voltage lines, it drops into existing distributed networks alongside DECO series full-range models. The front-accessible transformer tap selector lets technicians rebalance system output after the unit is mounted, eliminating ceiling access on second visits. An omnidirectional radiation pattern spreads low frequencies evenly across a room, so a single sub can anchor a wide coverage zone.

Its round steel enclosure and frameless grille disappear into finished ceilings, while optional pendant hardware adapts it to open-architecture rooms. Paired with recommended INTEGRAL amplifiers and processors compatible with ALMA, the DECO-80-TS becomes part of a fully managed, preset-driven system with monitoring and control, making it a stronger choice than passive subs that offer no network integration.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)
50 Hz – 190 Hz
Nominal Impedance
8 ohms
Transformer Taps 70 V
8 Ω / 12.5 W / 25 W / 50 W
Transformer Taps 100 V
8 Ω / 25 W / 50 W / 100 W
RMS Power Handling
200 W
Peak Power Handling
800 W
On-axis Sensitivity 1W/1 m
89 dB SPL
Maximum Peak SPL at 1 m
115 dB
Dispersion
Omnidirectional
Performance
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 INTEGRAL-M26X
MF Driver
8DW
Connectivity
Audio Input Connector
5-way ceramic terminal block
Dimensions
Enclosure Geometry
Round
Cut Out Diameter
290 mm (11.4 in)
Dimensions (H x W x D)
321 x 321 x 215 mm / 12.6" x 12.6" x 8.5"
Weight
Net Weight
5.5 kg (12.1 lb)
