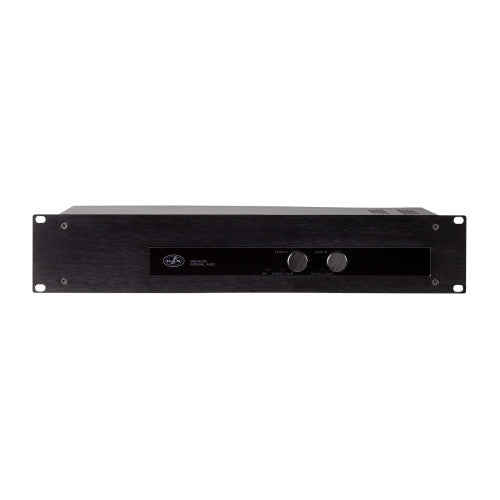

DAS Audio INTEGRAL-A1002 2-Channel 500W at 4 Ohms Power Amplifier

DAS Audio INTEGRAL-A1002 2-Channel 500W at 4 Ohms Power Amplifier

SoundPro Item: 130369 | Part Number: INTEGRAL-A1002

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 2 channel amplifier
  • 500 W per channel @ 4 ohms
  • High Efficiency Class D topology
  • Low Z and High Z (Bridged 70 V/100 V) operation
  • Universal Power Supply
  • 12dB/oct 80Hz HPF filter Selector (on/off)
  • Automatic Stand-by mode
Log in or register for YOUR best price

INTEGRAL-A1002 is a dual channel, 2U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings. The amplifier delivers 2x500W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 1000W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.

The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.

View full details

Specifications

Electrical
Voltage Gain
30.4 dB
Current Draw 230V / 115V
1.75 A / 3.5 A
Audio
Frequency Response
20 Hz-30 kHz (+0 – 0.5 dB)
Sensitivity
1.38 V (+5 dBu)
Audio Signal Input Connector
Terminal Block
Connectivity
Output Circuitry
Class D
Speaker Output Connector
Terminal Block
Electronics and Connectors
Dimensions (HxWxD)3.5x19x8.2” (88x483x208mm), Net Weight7.7 lbs (3.5kg)
Controls
LED Indicators
On-Protect-Standby, Signal-Clip
Shipping
Shipping Carton Dimensions (HxWxD)
6.7x20.7x12.4” (170x525x315mm)Shipping
Weight
9.4 lbs (4.3kg)
General
Power 8 Ohms, Both Channels Driven
2 x 250W
Power 8 Ohms Bridged
1 x 1000W
Power 4 Ohms, Both Channels Driven
2 x 500W
Power 100V
1 x 1000W
Power 70V
1 x 1000W
Amplifier Channels
2
Damping Factor
> 1000 (8 Ω load, 1 kHz and below)
Controls
Power On/Off, Gain Pots
Cooling
Side-Right-to-Left
Amplifier Protections
Short Circuit, DC Output, Temperature, Over/Under Voltage
