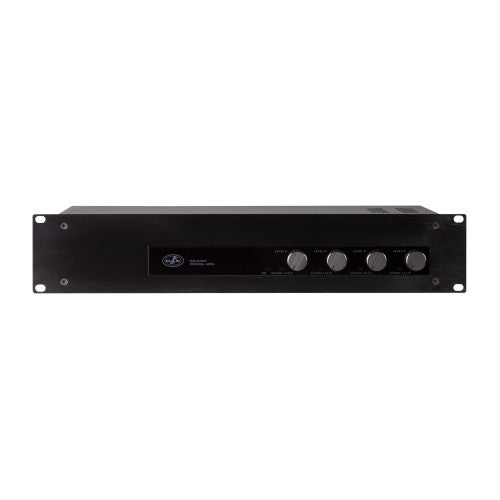

DAS Audio INTEGRAL-A1004 4-Channel 250W at 4 Ohms Power Amplifier
DAS Audio INTEGRAL-A1004 4-Channel 250W at 4 Ohms Power Amplifier
SoundPro Item: 130370 | Part Number: INTEGRAL-A1004
Usually ships in 5-7 business days
- 4 channel amplifier, Class D
- 4 independent inputs
- 250 W per channel @ 4 ohms
- Low Z and High Z (Bridged 70 V/100 V) operation
- Hybrid configuration operation (Hi Z and Low Z)
- Universal Power Supply
- 12dB/oct 80Hz HPF filter Selector (on/off)
- Automatic Stand-by mode
INTEGRAL-A1004 is a quad channel, 2U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.
The amplifier delivers 4x250W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 2x500W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.
The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.
- Output Power Ratings
- Power 8 Ohms, Both Channels Driven: 4 x 125W
- Power 8 Ohms Bridged: 2 x 500W
- Power 4 Ohms, Both Channels Driven: 4 x 250W
- Power 100V: 2 x 500W
- Power 70V: 2 x 500W
- Electronics and Connectors
- Amplifier Channels: 4
- Output Circuitry: Class D
- Frequency Response: 20 Hz-30 kHz (+0 – 0.5 dB)
- Sensitivity: 1.38 V (+5 dBu)
- Voltage gain: 30.4 dB
- Damping Factor: > 1000 (8 Ω load, 1 kHz and below)
- Controls: Power On/Off, Gain Pots
- Cooling: Side-Right-to-Left
- Amplifier Protections: Short Circuit, DC Output, Temperature, Over/Under Voltage
- LED Indicators: On-Protect-Standby, Signal-Clip
- Audio Signal Input Connector: Terminal Block
- Speaker Output Connector: Terminal Block
- Current Draw 230V / 115V: 1.75 A / 3.5 A
- Dimensions (HxWxD)3.5x19x8.2” (88x483x208mm)
- Net Weight8.2 lbs (3.7 kg)
- Shipping
- Carton Dimensions (HxWxD): 6.7x20.7x12.4” (170x525x315mm)
- Shipping Weight: 9.9 lbs (4.5kg)
