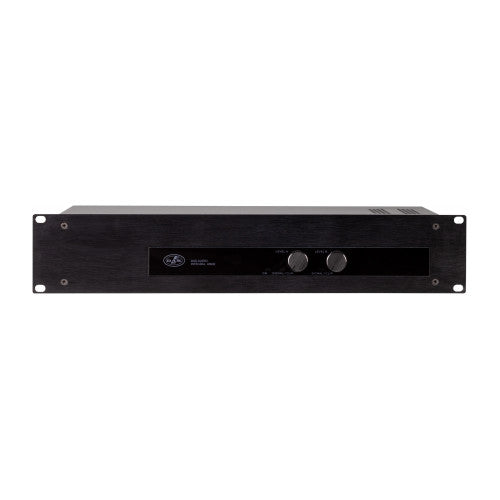

DAS Audio INTEGRAL-A1602 2-Channel 800W at 4 Ohms Power Amplifier

DAS Audio INTEGRAL-A1602 2-Channel 800W at 4 Ohms Power Amplifier

SoundPro Item: 130371 | Part Number: INTEGRAL-A1602

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 2 channel amplifier
  • 800 W per channel @ 4 ohms
  • High Efficiency Class D topology
  • Low Z and High Z (Bridged 70 V/100 V) operation
  • Universal Power Supply
  • 12dB/oct 80Hz HPF filter Selector (on/off)
  • Automatic Stand-by mode
Log in or register for YOUR best price

INTEGRAL-A1602 is a dual channel, 2U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.

The amplifier delivers 2x800W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 1600W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.

The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
3.5x19x8.2” (88x483x208mm)
Carton Dimensions (HxWxD)
6.7x20.7x12.4” (170x525x315 mm)
Weight
Net Weight
7.7 lbs (3.5kg)
Shipping Weight
9.4 lbs (4.3 kg)
Electrical
Voltage Gain
32.5 dB
Current Draw 230V / 115V
3.0 A / 6.0 A
Audio
Frequency Response
20 Hz-30 kHz (+0 – 0.5 dB)
Sensitivity
1.38 V (+5 dBu)
Audio Signal Input Connector
Terminal Block
Connectivity
Output Circuitry
Class D
Speaker Output Connector
Terminal Block
Controls
LED Indicators
On-Protect-Standby, Signal-Clip
General
Power 8 Ohms, Both Channels Driven
2 x 400W
Power 8 Ohms Bridged
1 x 1600W
Power 4 Ohms, Both Channels Driven
2 x 800W
Power 100V
1 x 1600W
Power 70V
1 x 1600W
Amplifier Channels
2
Damping Factor
>350, each channel (8Ω load, 1 kHz and below)
Controls
Power On/Off, Gain Pots
Cooling
Side-Right-to-Left
Amplifier Protections
Short Circuit, DC Output, Temperature, Over/Under Voltage
