DAS Audio INTEGRAL-AS2 Stereo Rack Mount Audio Source

DAS Audio INTEGRAL-AS2 Stereo Rack Mount Audio Source

SoundPro Item: 130378 | Part Number: INTEGRAL-AS2

$847.40
$892.00 $847.40
Your Price Sold out
MSRP: $892.00 | MAP: $847.40

Usually ships in 5-7 business days

  • Two Independent Channels Serve Separate Audio Zones From One Rack Space
  • Built-In CD Player And FM/AM/DAB Tuner Cover Broadcast And Disc Playback
  • Dual USB Slots And Dual Bluetooth Channels Enable Wireless And Local Media
  • Balanced XLR And Unbalanced RCA Outputs Integrate With Pro And Consumer Gear

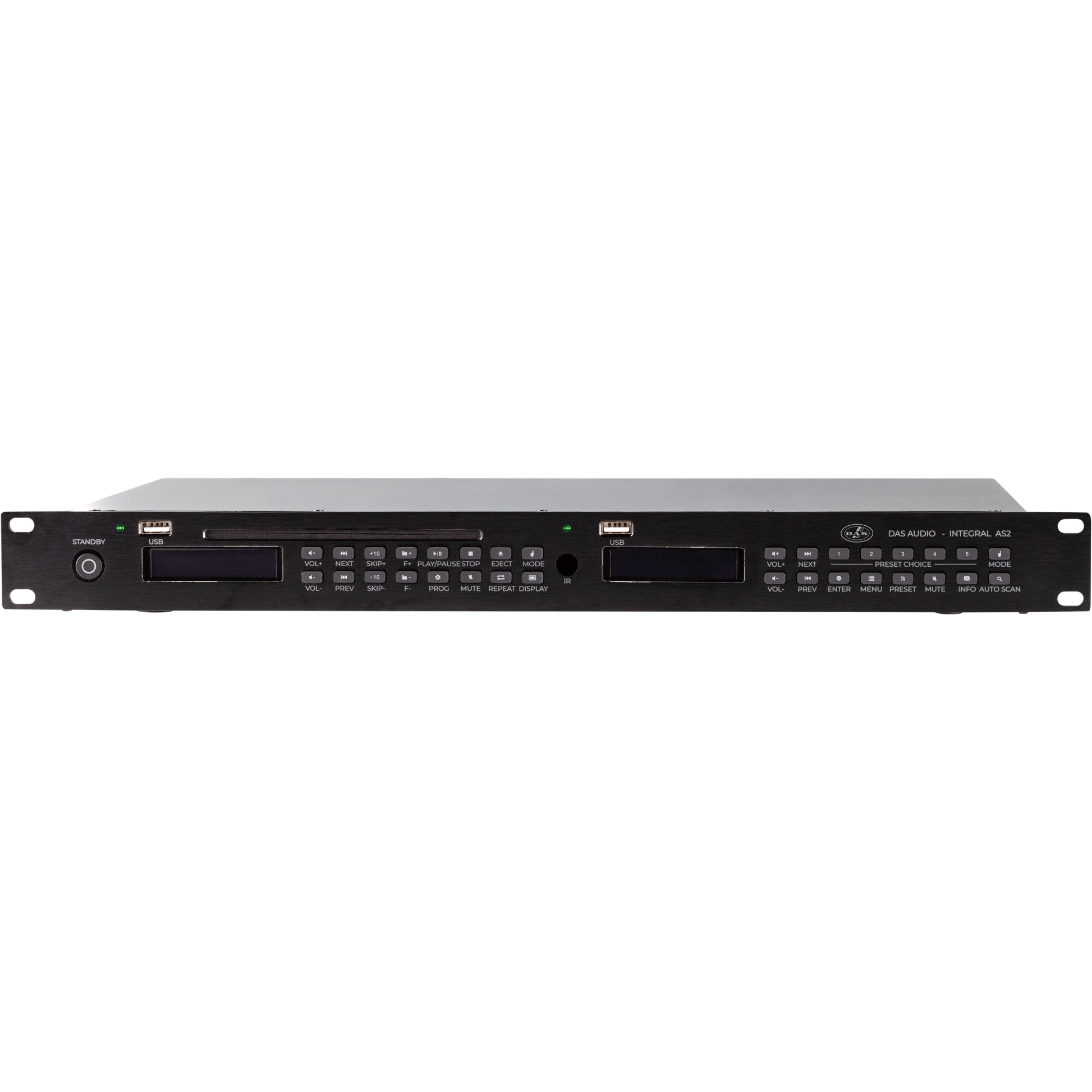

  • Dual Front-Panel Displays Show Independent Status For Each Channel
  • Included IR Remote Allows Control From The Listening Position
Log in or register for YOUR best price

The DAS Audio INTEGRAL-AS2 is a source unit built for integrators specifying background music, retail, hospitality, and paging systems where a compact, reliable playback front-end is required. Two independent channels let a single rack unit serve two separate program feeds, reducing hardware count in distributed audio installs.

With CD, FM/AM and DAB tuner, dual USB slots, and dual Bluetooth channels, it covers the full range of media formats staff and clients expect without adding external players. Dual displays and front-panel navigation make daily operation straightforward for non-technical users, while the included IR remote supports control from the listening position.

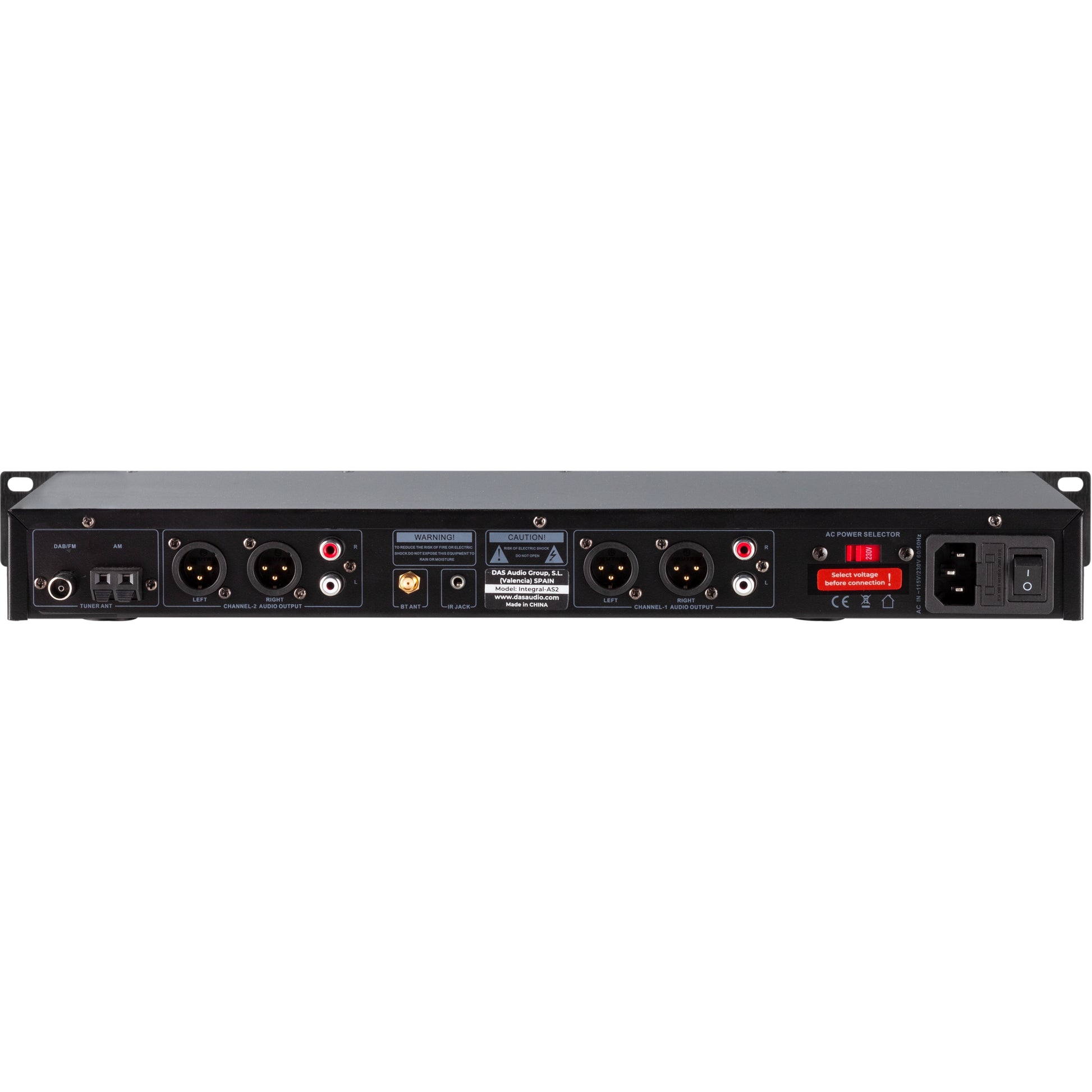

Both balanced XLR and unbalanced RCA outputs mean it drops directly into professional amplifier and DSP chains or consumer-grade zone gear without adapters. For fixed installs that need broad media compatibility and clean, low-distortion signal in a single rack row, it removes the need to stack multiple single-purpose components.

Downloads

View full details

Specifications

Performance
System
2 Channels Multimedia Player
Compatible Media
L Channel: CD / USB / Bluetooth R Channel: USB/Bluetooth/FM (RDS)/DAB + (DAB)/AM
Playable Formats
CD: CD / CD-R / CD-RW USB: MP3 / WAV / WMA / FLAC / APE
Bluetooth Version
Version 5.0
Audio
Frequency Range
FM (RDS): 87.50 – 108.00 MHz DAB + (DAB): 168.00 – 240.00 MHz AM: 522 – 1620 kHz
Frequency Response
20 Hz – 20 kHz (+0, -0.5 dB)
Signal to Noise Ratio
>105 dB
Total Harmonic Distortion
< 0.005%
Connectivity
Unbalanced L/R Outputs
2 x RCA Level: 2 Vrms (max. 10 dBu) @ 10 kohms load Load Impedance: > 10 kohms
Balanced L/R Outputs
2 x XLR (1: GND 2:HOT 3:COLD) Level: 8.23 dBu (max. 24 dBu) @ 600 ohms load Load Impedance; > 600 ohms
Electrical
Power Supply
AC 60/50 Hz with selector 115/230 V
Current Draw 230 V / 115 V
0.13 A/ 0.26 A
Dimensions
Dimensions (H x W x D)
45 x 480 x 255 mm / 14.6" x 10.5" x 1.9"
Weight
Net Weight
3.4 kg (7.5 lbs)
Shipping
Carton Dimensions (H x W x D)
520 x 355 x 117 mm / 20.5" x 14.0" x 4.6"
Shipping Weight
4.1 kg (9.0 lbs)
