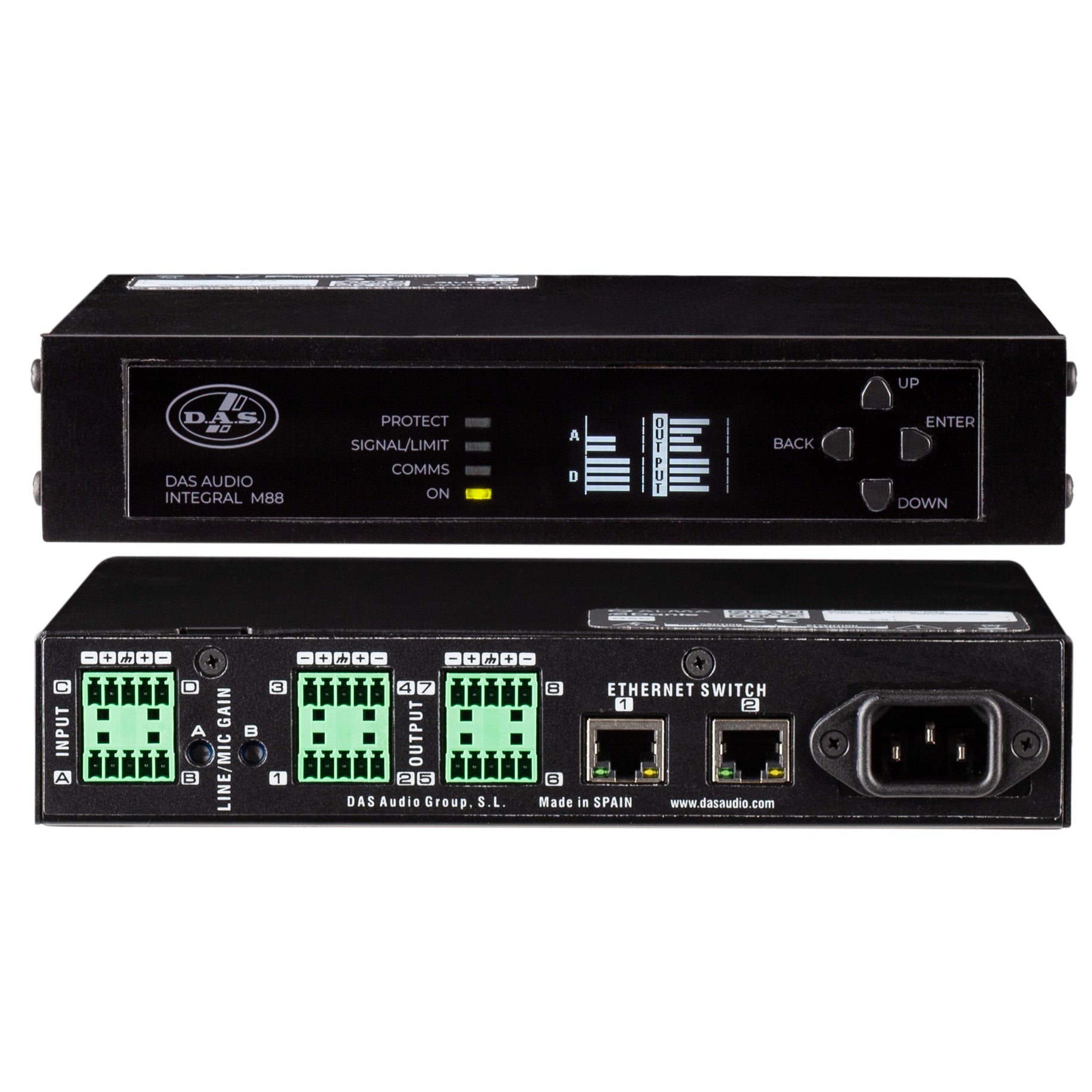

DAS Audio INTEGRAL-M88 4x8 Analog Audio Matrix With Dante

DAS Audio INTEGRAL-M88 4x8 Analog Audio Matrix With Dante

SoundPro Item: 130377 | Part Number: INTEGRAL-M88

$2,698.00
$2,840.00 $2,698.00
Your Price Sold out
MSRP: $2,840.00 | MAP: $2,698.00

Usually ships in 5-7 business days

  • Combined Analog And Dante Signal Paths For Flexible Fixed Install Routing
  • ALMA Software Control Over IP For Remote Commissioning And Management
  • Open Sound Control Support For Third Party Control System Integration
  • Onboard DSP Crossover Equalization Delay And Limiting In A Single Unit
  • Two Priority Levels Per Output For Paging And Emergency Override Logic
  • Half Rack Chassis Fits Shallow Closets And Shared Equipment Racks
Log in or register for YOUR best price

The DAS Audio INTEGRAL-M88 is built for systems integrators and contractors deploying permanent audio in venues, houses of worship, corporate campuses, hospitality spaces, and multi-zone commercial installs. Its half-rack 1U footprint lets designers fit distribution and processing into shallow equipment closets and combo racks where full-width chassis waste space, while still delivering four analog inputs and eight analog outputs plus a bidirectional Dante network path.

Where standalone zone mixers force a choice between analog convenience and networked scalability, this matrix carries both simultaneously, letting facilities feed local sources and pull networked channels across the same device. Onboard DSP handles crossover, equalization, delay, and limiting, so a single unit can steer and condition signal to distributed loudspeaker zones without external processors. Configuration and live management run over IP through ALMA software or via Open Sound Control, giving integrators remote commissioning and third-party control system integration on projects where physical access is limited after handover.

Downloads

View full details

Specifications

Dimensions
Dimensions (H x W x D)
1.7" x 8.5" x 8.3" (44 x 215 x 210 mm)
Carton Dimensions (H x W x D)
17.3" x 15.7" x 2.4" (440 x 400 x 60 mm)
Weight
Net Weight
3.7 lbs (1.7 kg)
Shipping Weight
16.5 lbs (7.5 kg)
Electrical
AC Input Connector
IEC 15A
Power Supply
Universal Mains Switch Mode
Operating Range
90 - 250 VAC
Phantom Power
+12V DC
Audio
Frequency Response
20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level
+22 dBu
Max Output Level
+22 dBu
Sampling Rate
48 kHz
Performance
Analog Input Channels
4
Analog Output Channels
8
Dante Input Channels
4
Dante Output Channels
4
AD Converters
24 Bit @ 48 kHz 118 dBA Dynamic Range
DA Converters
24 Bit @ 48 kHz 118 dBA Dynamic Range
Internal Precision
32 Bit, 64 Bits Double Precision
Latency
1 ms
Delay
50ms per input / 135ms per output
Equalizer
Bell, Lo/Hi-Shelving, Hos
Crossover
Linkwitz-Riley, Butterworth, Bessel
High and Low Pass Filters
Up to 48 dB/oct
Limiters
RMS, Peak
Connectivity
Analog Audio Input Connectors
2 x 3.5 mm Pitch Terminal Block
Analog Audio Output Connectors
4 x 3.5 mm Pitch Terminal Block
Dante Digital In/Out Connectors
2 x RJ45 Fast Ethernet
Controls
Controls
Power On/Off, Navigation Buttons
Display
OLED 1.54"
LED Indicators
On, Comms, Signal, Protect
Cooling
Side-Right-to-Left
